FortiWiFi-50B operation modes Using a wireless network

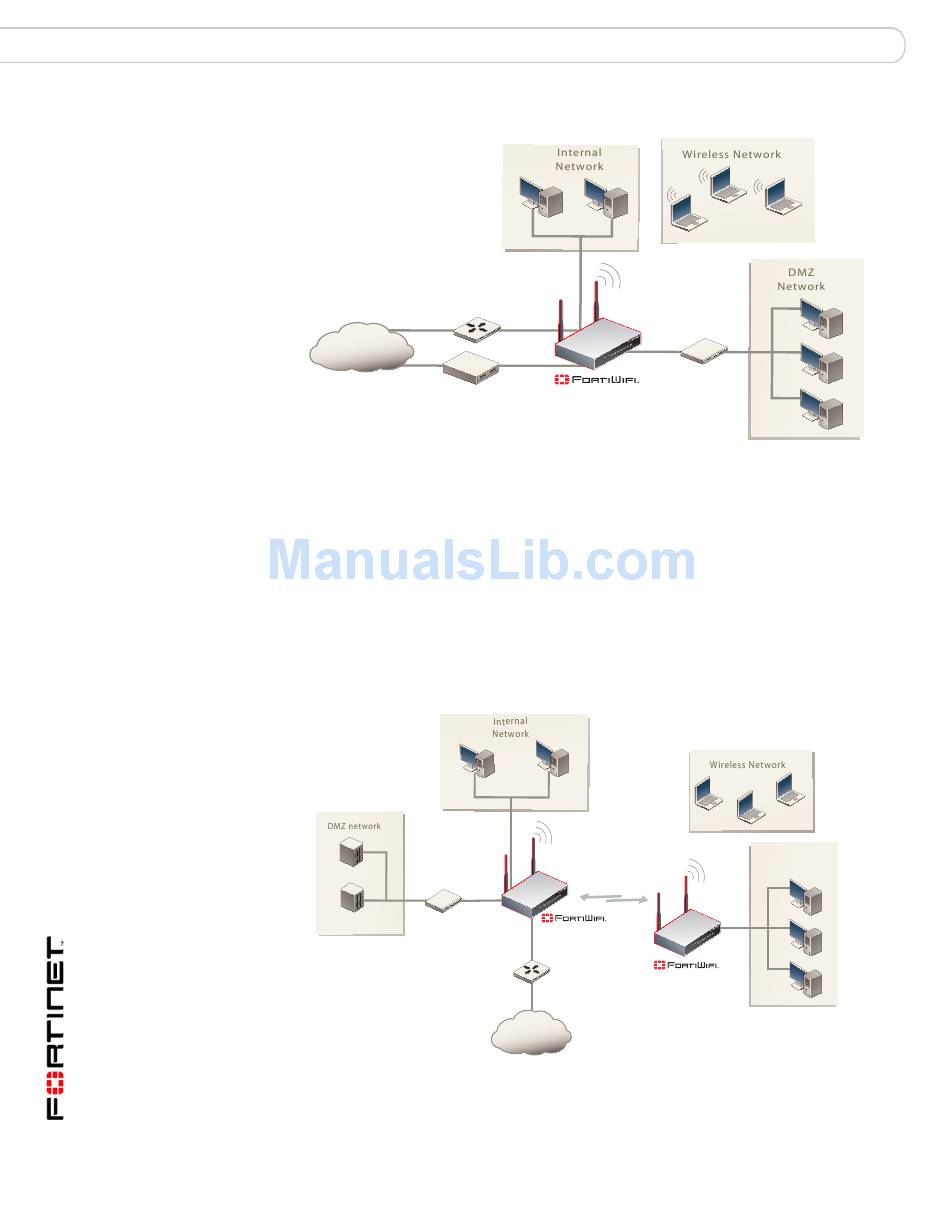

Figure 15: FortiWiFi in Access Point mode
Internal
Router
WAN1
DMZ
Internet
WAN2
MODEM / DSL / Cable

Client mode

When using the FortiWiFi-50B in Client mode, the device is set to receive
transmissions from another access point. This enables you to connect remote
users to an existing network using wireless protocols from a location that does not
have a wired infrastructure.
For example, in a warehouse where shipping and receiving are on opposite sides
of the building, running cables is not an option due to the warehouse environment.
The FortiWiFi-50B unit can support wired users using its four Ethernet ports and
can connect to another Access Point wirelessly as a Client. This connects the
wired users to the network using the 802.11 wireless standard as a backbone.
Figure 16: FortiWiFi-50B in Client mode
Internal
Internal
Network
Web Server
DMZ
Mail Server
Hub or switch
WAN1
Router
Internet
