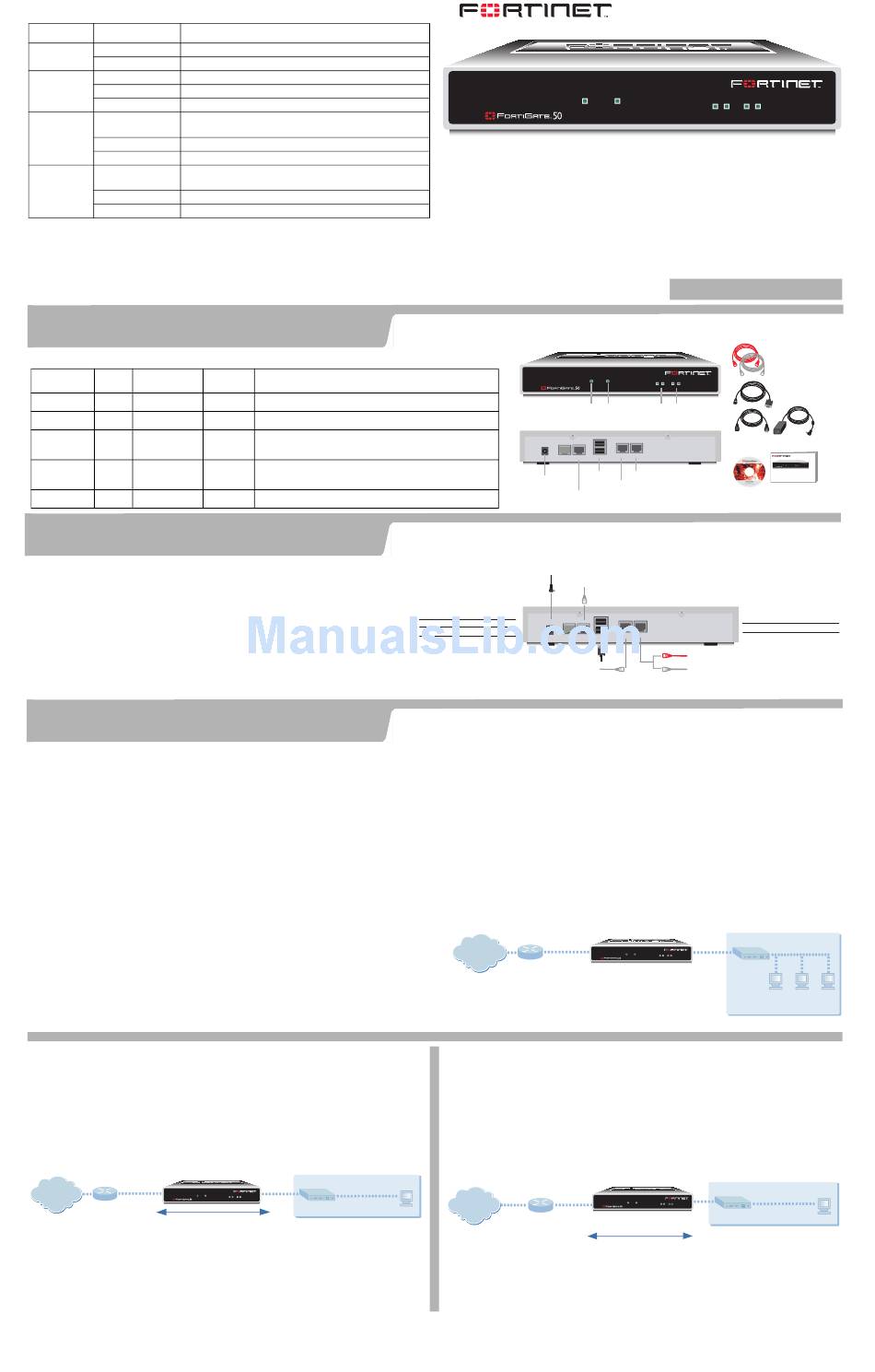

Fortinet FortiGate-50A Quick Start Manual

FortiGate-50A LED Indicators

LED State Description
Green The FortiGate unit is powered on.
Power
Off The FortiGate unit is powered off.
Flashing Green The FortiGate unit is starting up.
Status
Green The FortiGate unit is running normally.
Off The FortiGate unit is powered off.
Green The correct cable is in use, and the connected equipment
Internal
has power.
External
Flashing Green Network activity at this interface.
(Front)
Off No link established.
Green The correct cable is in use, and the connected equipment
Internal
has power.
External
Flashing Amber Network activity at this interface.
(Back)
Off No link established.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
1

Checking the package contents

Checking the package contents
Connector Type Speed
Internal RJ-45 10/100Base-T
External RJ-45 10/100Base-T
CONSOLE RJ-45 9600 bps
USB USB —
Modem RJ-11
2

Connecting the FortiGate-50A

• Place the unit on a stable surface. It requires 1.5 inches
(3.75 cm) clearance above and on each side to allow for cooling.
• Make sure the power switch on the back of the unit is turned off before
connecting the power and network cables.
• The Status light flashes while the unit is starting up and turns off when the
system is up and running.
3

Planning the configuration

Quick configuration using the default settings
You can quickly set up your FortiGate unit for a home or small office using the web-
based manager and the default settings in NAT/Route mode.
All you need to do is set your network computers to use DHCP, access the web-based
manager, and configure the required settings for the external interface. You can also
configure DNS and a default route if needed. The FortiGate unit automatically assigns
IP addresses to up to 100 computers in the internal network.
1. Connect the FortiGate unit to the network.
2. Set the all the network computers to use DHCP to automatically obtain an IP
address.
The FortiGate internal interface acts as a DHCP server for the internal network and
assigns IP addresses to all computers in the range 192.168.1.110 –192.168.1.210.
3. From the management computer browse to https://192.168.1.99.
The FortiGate web-based manager appears.
4. Go to System > Network > Interface and select Edit for the external interface.
5. Select one of the following Addressing modes
• Manual: enter a static IP address and netmask, select OK, and go to step 6
• DHCP: to get an IP address from the ISP select DHCP and go to step 9
• PPPoE: to get an IP address from the ISP select PPPoE and go to step 9
6. Go to System > Network > DNS.
NAT/Route mode
In NAT/Route mode, the FortiGate-50A is visible to the networks that it is connected to.
All of its interfaces are on different subnets. You must configure the internal and
external interfaces with IP addresses.
You would typically use NAT/Route mode when the FortiGate-50A is deployed as a
gateway between private and public networks. In its default NAT/Route mode
configuration, the unit functions as a firewall. Firewall policies control communications
through the FortiGate-50A unit.
FortiGate-50A Unit
in NAT/Route mode
External
204.23.1.5
Internet
NAT mode policies controlling
traffic between internal and
external networks.
In NAT/Route mode, firewall policies can operate in NAT mode or in Route mode. In
NAT mode, the FortiGate-50A performs network address translation before IP packets
are sent to the destination network. In Route mode, no translation takes place. By
default, the unit has a single NAT mode policy that allows users on the internal network
to securely access and download content from the Internet. No other traffic is possible
until you have configured more policies.
Refer to the Documentation CD-ROM for information on how to control traffic, and how to configure HA, antivirus protection, Web content filtering, Spam filtering, intrusion
prevention (IPS), and virtual private networking (VPN).
Protocol Description
Ethernet Connection to the internal network.
Ethernet Connection to the Internet.
RS-232 Optional connection to the management computer.
serial Provides access to the command line interface (CLI).
USB Optional connection to a modem for standalone or backup
operation.
Inactive port for this model (blocked).
Internal
192.168.1.99
Internal network
POWER
PWR STATUS
INTERNAL EXTERNAL
A
LINK 100 LINK 100
FortiGate-50A
© Copyright 2004 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks or registered trademarks of their respective holders.
06 December 2004
For technical support please visit http://www.fortinet.com.
Check that the package contents are complete.
Connect the FortiGate-50A unit to power outlets and to the internal and external networks.
Default IP Addresses (Nat/Route mode)
INTERNAL 192.168.1.99
EXTERNAL DHCP
Optional connection to a serial modem
Straight-through Ethernet cable connects
to Internet (public switch, router or modem)
Before configuring the FortiGate-50A, you need to plan how to integrate the unit into your
network. You can select NAT/Route mode (the default) or Transparent mode. In NAT/Route mode
you can also use the default settings to quickly configure the unit on your network.
7. Select one of the following DNS settings
• Obtain DNS server address automatically: select to get the DNS addresses
from the ISP, select Apply
• Use the following DNS server addresses: select and enter the DNS server
addresses given to you by the ISP, select Apply
8. Go to Router > Static, select Create New, enter the default gateway address and
select OK.
Network configuration is complete. Proceed to part 7 of this Quick Start Guide.
9. Select Retrieve default gateway from server and Override internal DNS options if
your ISP supports them, select OK, and proceed to part 7 of this Quick Start Guide.
Go to step 6 if you are not selecting these options.
Internet
Transparent mode
In Transparent mode, the FortiGate-50A is invisible to the network. All of its interfaces
are on the same subnet. You only have to configure a management IP address so that
you can make configuration changes.
You would typically use the FortiGate-50A in Transparent mode on a private network
behind an existing firewall or behind a router. In its default Transparent mode
configuration, the unit functions as a firewall. By default, the unit has a single firewall
policy that allows users on the internal network segment to connect to the external
network segment. No other traffic is possible until you have configured more policies.
Gateway to
public network
204.23.1.5
192.168.1.3
Internet
(firewall, router)
You can connect two network segments to the FortiGate-50A unit to control traffic
between these network segments.
PWR STATUS
A
QuickStart Guide
01-28005-0031-20041206
Front
PWR STATUS
PWR STATUS
INTERNAL EXTERNAL
A
LINK 100 LINK 100
Power Status Internal External
LED LED Interface
Interface
Back
DC+12V
External Internal
USB
Modem Console
Internal
USB
Power
External
RJ-45 Serial
Connection
Power cable connects to power supply
RJ-45 to DB-9 serial cable connects to management computer
DC+12V
External Internal
Modem Console USB
Crossover Ethernet cable connects to
management computer on internal network
or
Straight-through Ethernet cable connects to
LAN or switch on internal network
FortiGate-50A Unit
POWER
PWR STATUS
INTERNAL EXTERNAL
A
LINK 100 LINK 100
External interface Internal interface
192.168.1.99
Configure Manual IP, DHCP, or
PPPoE addressing
DHCP server and DNS server
for the internal network
FortiGate-50A Unit
in Transparent mode
10.10.10.2
PWR STATUS
INTERNAL EXTERNAL
A
LINK 100 LINK 100
External 10.10.10.1
Internal
Management IP
Transparent mode policies
controlling traffic between
internal and external networks
INTERNAL EXTERNAL
LINK 100 LINK 100
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
RJ-45 to
DB-9 Serial Cable
Power Cable Power Supply
FortiGate-50A
USER MANUAL
PWR STATUS External Internal
LINK 100 LINK 100
QuickStart Guide
Copyright 2004 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Documentation
Default IP Address (Transparent mode)
MANAGEMENT IP 10.10.10.1
Internal network
Obtain IP address and
DNS server IP address
automatically
Internal network
10.10.10.3
