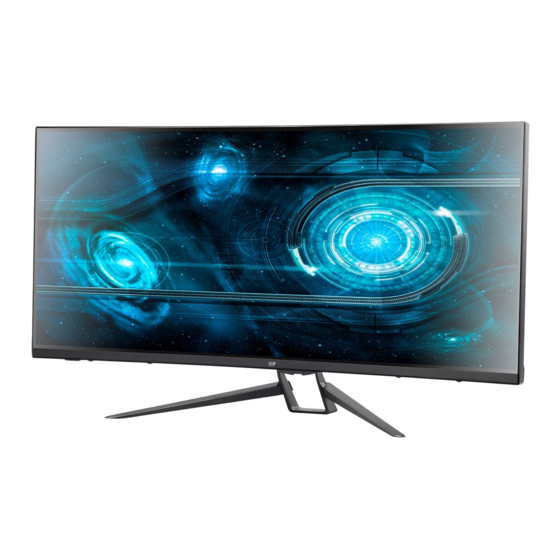

MP 35" Zero-G 100Hz Curved Monitor
with AMD FreeSync™ 2.0
P/N 31005
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 31005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monoprice 31005

Summary of Contents for Monoprice 31005

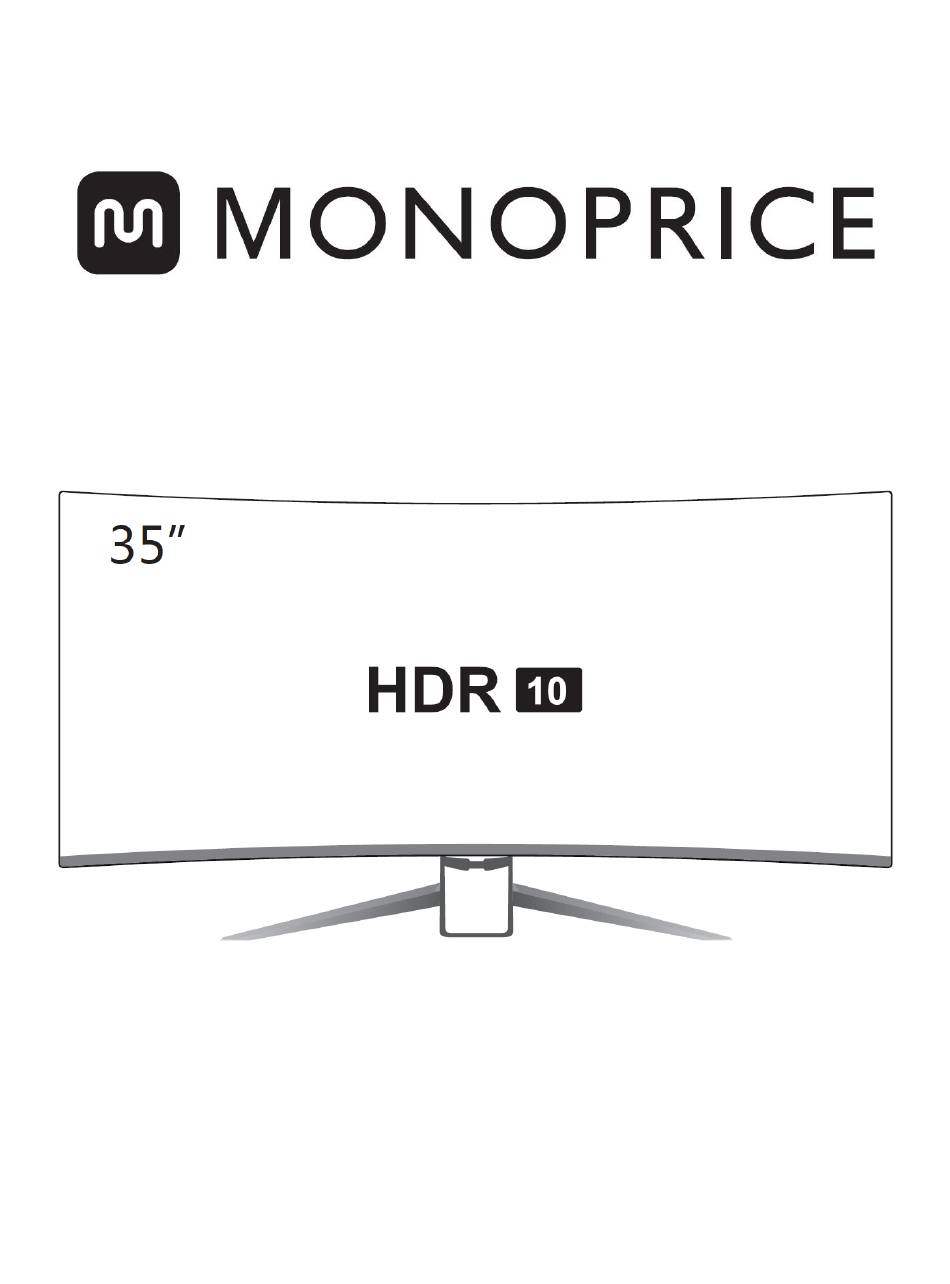

  • Page 1 MP 35" Zero-G 100Hz Curved Monitor with AMD FreeSync™ 2.0 P/N 31005 User's Manual...

  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference.  This device is intended for indoor use only. ...
  • Page 3  Never unplug the unit by pulling on the power cord. Always grasp the connector head or adapter body.  Ensure that power is turned off and disconnected before making any electrical connections.  Remove the batteries from the controller if it will go unused for a lengthy period of time.

  • Page 4: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...
  • Page 5 HDMI 3: HDMI video input supporting the HDMI 2.0 specification at resolutions up to 3440 x 1440p @ 100Hz. HDMI 2: HDMI® video input supporting the HDMI 1.4 specification at resolutions up to 3440 x 1440p @ 60Hz. HDMI 1: HDMI® video input supporting the HDMI 1.4 specification at resolutions up to 3440 x 1440p @ 60Hz.
  • Page 6 Rear Keypad 1. MENU: If the OSD menu is not displayed, press the MENU button to display the OSD menu. If the OSD menu is displayed, press the MENU button to select the highlighted function.
  • Page 7 2. SELECT: Press the SELECT button to select the video input. 3. V.+: If the OSD menu is not displayed, press the V.+ button to increase the volume level. If the OSD menu is being displayed, press the V.+ button to move the highlight to the right.

  • Page 8: Input Source Menu

    Increases the volume level. Displays the source. Enters the OSD menu. Exits the OSD menu. Quick enter for low blue mode. Quick enter for ECO mode. Quick enter for sleep mode. INPUT SOURCE MENU  Press the SELECT button on the Keypad to display the Input Source Menu.

  • Page 9: Installing The Stand

    INSTALLING THE STAND Unless you will be using a wall or desk mount, you will need to install the stand before you can use the monitor. Perform the following steps to install the stand. 1. Remove the monitor from the box, but leave the foam packing on it. 2.

  • Page 10: Installation

    INSTALLATION 1. Ensure that all equipment to be connected is powered off and unplugged from their power sources. 2. Place the monitor it its intended location. 3. Using the included High Speed HDMI® Cable, plug one end into one of the HDMI inputs on the monitor, then plug the other end into the HDMI output on your PC.
  • Page 11 Main Menu Sub Menu Option Function Item Item FPS2 Choose the picture mode TV MODE Dynamic contrast ratio on or off. BRIGHTNESS TARGET 1 Select crosshair style 1 CROSSHAIR TARGET 2 Select crosshair style 2 TARGET TARGET 3 Select crosshair style 3 Removes the blue color of the image to LOW BLUT protect your eyes...
  • Page 12 Main Menu Sub Menu Option Function Item Item USER3 Selects the basic color temperature COLOR TEMP COOL SRGB Selects the basic color temperature Adjusts the amount of red color in the 0~100 COLOR image Adjusts the amount of green color in GREEN 0~100 the image...
  • Page 13 Main Menu Sub Menu Option Function Item Item Single picture mode PIP MODE Picture-in-picture mode MULTI- WINDOW PBP 2WIN Split screen modes MODE PBP 3WIN Split screen modes PBP 4WIN HDMI 1 HDMI 2 WINDOW 2 Selects the input source for window 2 INPUT HDMI 3 DP 1...
  • Page 14 Main Menu Sub Menu Option Function Item Item BOTTOM LEFT PIP POSITION Adjusts the position of the PIP window MULTIWIN BOTTOM RIGHT SWAP Swaps the main and PIP inputs AUTO DP 1 SIGNAL HDMI 3 Selects the desired input source SOURCE HDMI 2 HDMI 1...

  • Page 15: Technical Support

    240 MIN TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.

  • Page 16: Specifications

    SPECIFICATIONS Model 31005 Screen Size 35" (889.8 mm) Active Area 32.3" x 13.6" (819.4 x 345.9 mm) Maximum Resolution 3440 x 1440p @ 100Hz Viewing Angles (H/V) 178° / 178° Response Time (GTG) Brightness 300 cd/m² Contrast Ratio 2500:1 Dynamic Contrast Ratio...
