Monoprice 38577 User Manual

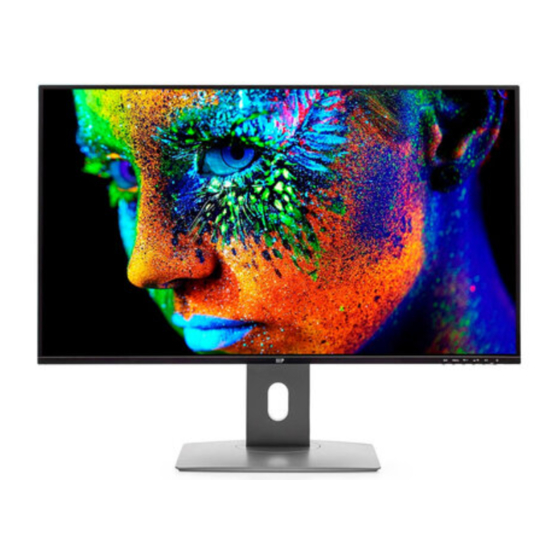

32" vivid monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

32" Vivid Monitor
P/N 38577
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 38577 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monoprice 38577

Summary of Contents for Monoprice 38577

  • Page 1 32" Vivid Monitor P/N 38577 User's Manual...

  • Page 2: Table Of Contents

    CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 FEATURES ..........................................4 CUSTOMER SERVICE ....................................5 PACKAGE CONTENTS ....................................5 PRODUCT OVERVIEW ....................................6 Controls ..........................................6 Connections ........................................7 OSD MENU ........................................... 7 Input Source Submenu ..................................7 Brightness/Contrast Submenu ..............................8 Color Settings Submenu ...................................

  • Page 3: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference.  This monitor is intended for indoor use only. ...

  • Page 4: Features

     Take care to prevent damage to the power cord. Do not allow it to become crimped, pinched, walked on, or become tangled with other cords. Ensure that the power cord does not present a tripping hazard.  Never unplug the monitor by pulling on the power cord. Always grasp the connector head or adapter body.

  • Page 5: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com.

  • Page 6: Product Overview

    PRODUCT OVERVIEW Controls 1. EXIT: When no menu is displayed, press the EXIT button to display the OSD Menu with the Input Source submenu selected. When a submenu is displayed, press the EXIT button to exit back to the Main Menu. When on the Main Menu, press the EXIT button to close the OSD Menu.

  • Page 7: Connections

    Connections Note: Due to the limited power consumption offered, only one USB 3.0 port at a time should be used for charging. OSD MENU Input Source Submenu  DP: Selects the DisplayPort® 1.2 video input.  HDMI: Selects the HDMI® 2.0a video input. ...

  • Page 8: Brightness/Contrast Submenu

    Brightness/Contrast Submenu  Brightness: Adjusts the screen brightness from 0~100.  Contrast: Adjusts the screen contrast from 0~100.  DCR: Turns Dynamic Contrast Ratio On or Off.  Low Blue: Adjusts the level of blue light reduction. The possible options are Off, Weak, Medium, Strong, and Strongest.

  • Page 9: Color Settings Submenu

    Color Settings Submenu  Gamma: Adjusts the Gamma level. The possible options are 1.8, 2.0, 2.2, 2.4, and 2.6.  ECO Mode: Biases the screen settings for different types of content. The possible options are Standard, Text, FPS, RTS, Movie, and ECO. ...

  • Page 10: Picture Quality Settings Submenu

    Picture Quality Settings Submenu  Sharpness: Adjusts the screen sharpness from 0~100 in increments of 10.  Response Time: Turns the response time overdrive setting on or off.  Nose Reduction: Adjusts the amount of screen noise reduction. The possible options are Off, Low, Middle, and High.

  • Page 11: Display Settings Submenu

    Display Settings Submenu  Aspect Ratio: Adjusts the screen aspect ratio. The possible options are Full Screen, Auto, 4:3, and 1:1.

  • Page 12: Audio Settings Submenu

    Audio Settings Submenu  Mute: Turns audio muting on or off.  Volume: Adjusts the volume level from 0~100.  Audio Source: Selects the video source for audio. The possible options are Auto, DP, HDMI, and Type-C.

  • Page 13: Multi-Window Settings Submenu

    Multi-window Settings Submenu  Multi-Window: Allows selection of one of the multi-window display types. The possible options are Off, PIP Mode (Picture in Picture), and PBY2Win (Picture by Picture).  SubWin2 Input: Allows select of a secondary video source for use with the PIP and PBY2Win modes.

  • Page 14: Osd Settings Submenu

    OSD Settings Submenu  Language: Allows selection of the language to use in the OSD menu. The possible options are English, French, Spanish, German, Italian, Chinese, Traditional Chinese, Korean, and Japanese.  Menu Transparency: Adjusts the level of opacity/transparency of the OSD menu from 0~100.

  • Page 15: Other Settings Submenu

    Other Settings Submenu  FreeSync Mode: Turns the AMD FreeSync™ feature on or off.  HDR: Turns the High Dynamic Range feature on or off. The possible options are Auto, On, and Off.  USB FW Upgrade: Select this option to upgrade the monitor's firmware from a USB stick.

  • Page 16: Displayhdr 400

    TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.

  • Page 17: Specifications

    SPECIFICATIONS Model 38577 Screen Size 32" Screen Type Screen Finish Soft matte Backlighting 1x HDMI® with HDR support, Video Inputs 1x DisplayPort® with AMD FreeSync™ support, 1x USB Type-C™ Maximum HDMI/DP Resolution 3840 x 2160 @60Hz Maximum USB Type-C Resolution...

  • Page 18: Regulatory Compliance

    Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.

  • Page 19: Notice For Industry Canada

    Notice for Industry Canada This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. VESA®, DisplayPort®, and the DisplayPort®...
