Monoprice 30618 User Manual

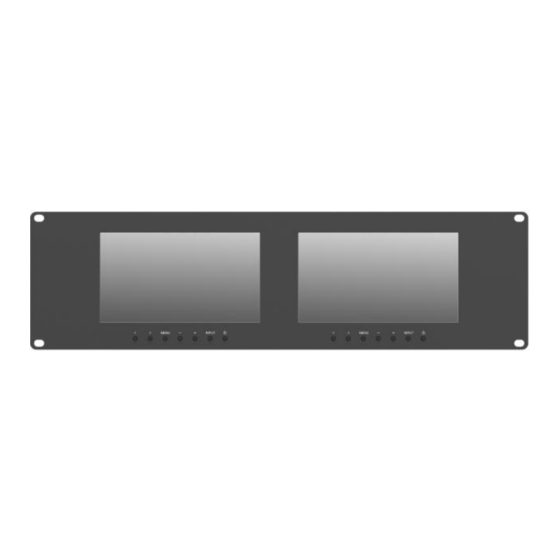

Dual 7" 3ru rack mount monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

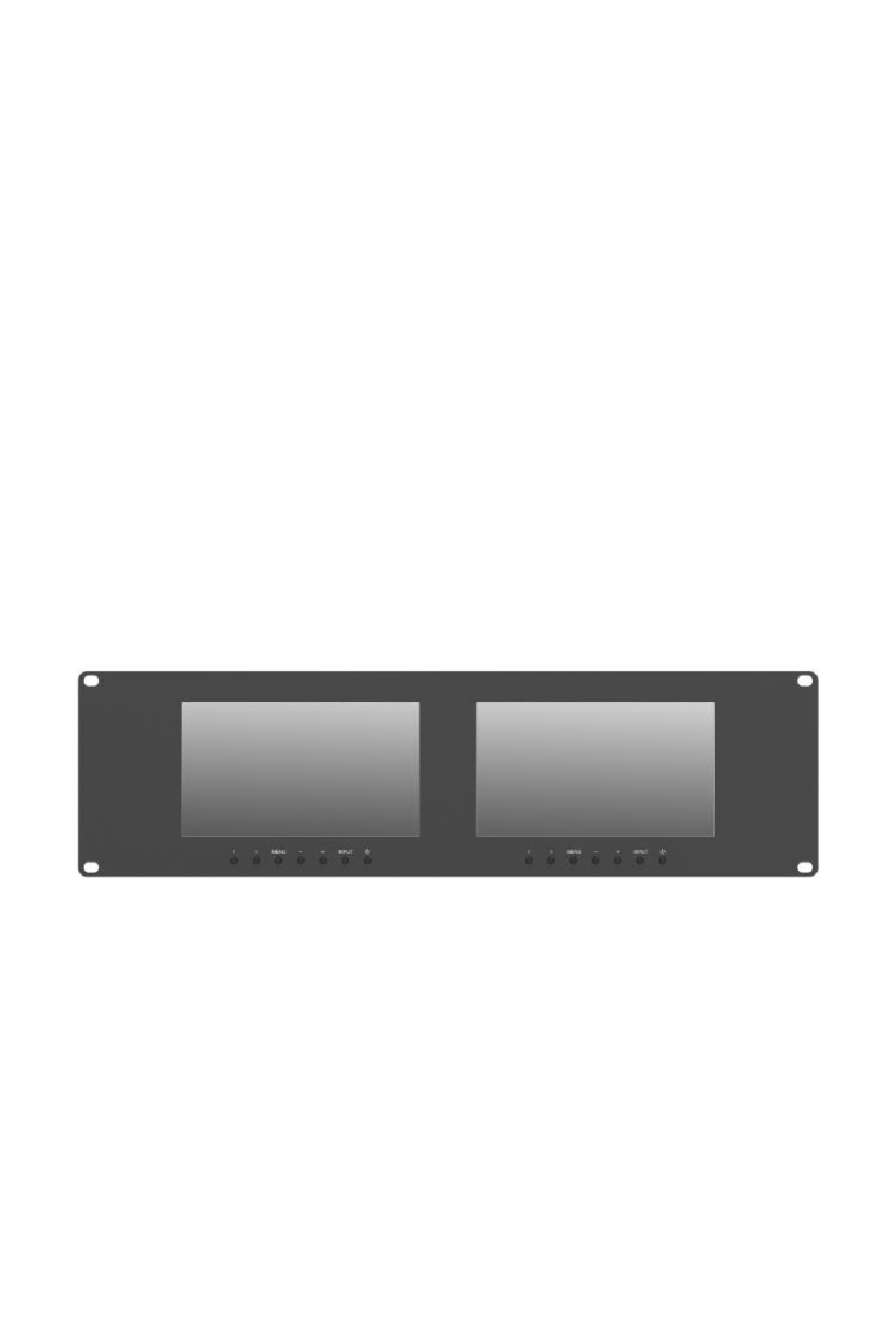

Rack Mount Monitor
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30618 and is the answer not in the manual?

Questions and answers

Related Manuals for Monoprice 30618

Summary of Contents for Monoprice 30618

  • Page 1 Rack Mount Monitor User Manual...

  • Page 2: Table Of Contents

    Table of Contents Features .......................... 3 Safety Instructions ......................3 Installation and Initial Setup ..................4  Unpacking ....................4  Mounting ....................4 Product Description ....................... 5  Front panel features ................... 5  Rear Panel Features ................... 5 On-Screen Menu ......................

  • Page 3: Features

    Dual 7” 3RU Rack Mount Monitor Features  Metal housing;  With VGA, DVI (optional), Composite input and loop through output;  Multi-Format compatibility;  Easy-to-navigate on-screen menus with 5 button control (<, >, MENU, －, ＋);  Adjustable color temperature in VGA & DVI (optional) mode; ...

  • Page 4: Installation And Initial Setup

    Dual 7” 3RU Rack Mount Monitor Installation and Initial Setup  Unpacking Carefully unpack the monitor and verify that the following items are included:  Monitor  12V Power Supply  Power Supply Cable Clamp  User Manual Inspect the unit for any physical damage that may have occurred during shipping.

  • Page 5: Product Description

    Dual 7” 3RU Rack Mount Monitor Product Description  Front panel features 1．＜: Left Button, to navigate the on-screen menu (Select the item). Default as phase adjustment. 2．＞: Right Button, to navigate the on-screen menu (Select the item). Default as brightness adjustment among 6 levels circularly. 3．MENU: Press MENU Button to access the on-screen Menu.

  • Page 6: On-Screen Menu

    Dual 7” 3RU Rack Mount Monitor 2． : VGA input and loop through output interface. 3． : Video input and loop through output interface. 4． : DC 12V Power supply input interface. 5． : Cable clamp slot for the power supply cable. On-Screen Menu Before setting the menu functions, please check out the monitor is connected correctly.

  • Page 7: In Vga (Pc) Mode

    Dual 7” 3RU Rack Mount Monitor  In VGA (PC) mode: It shows picture mode specifications at the bottom right corner (See pink box in the above OSD).  In DVI mode: It shows picture mode specifications at the bottom right corner (See pink box in the above OSD).
  • Page 8 Dual 7” 3RU Rack Mount Monitor -- OSD V-position adjustment: to adjust the OSD position vertically. -- OSD Duration: to adjust the duration of OSD from 5 to 100 seconds. -- Screen flip H-position: to flip the screen left or right. -- Screen flip V-position: to flip the screen up or down.

  • Page 9: Technical Specifications

    Dual 7” 3RU Rack Mount Monitor Technical Specifications 7’’ Diagonal, LED backlit Screen Size Aspect Ratio 15:9 (16:9 / 4:3 selectable) Resolution 800×480 Brightness 400cd/m Contrast 500:1 Viewing Angle 140°/ 120°(H/V) Input / Output Signal Video, VGA (PC), DVI(optional) Power Consumption 1.3 Amp (Max) @ 12VDC (15.6W Max) Input Voltage DC6-24V...

  • Page 10: Warranty

    Dual 7” 3RU Rack Mount Monitor Warranty We are warranties to the first consumer that this monitor will be free from defects in workmanship and materials under normal use, when received in its original container, for a period of one year from the date of delivery. Misuse, abnormal handling, alterations or modifications in design or construction void this warranty.
