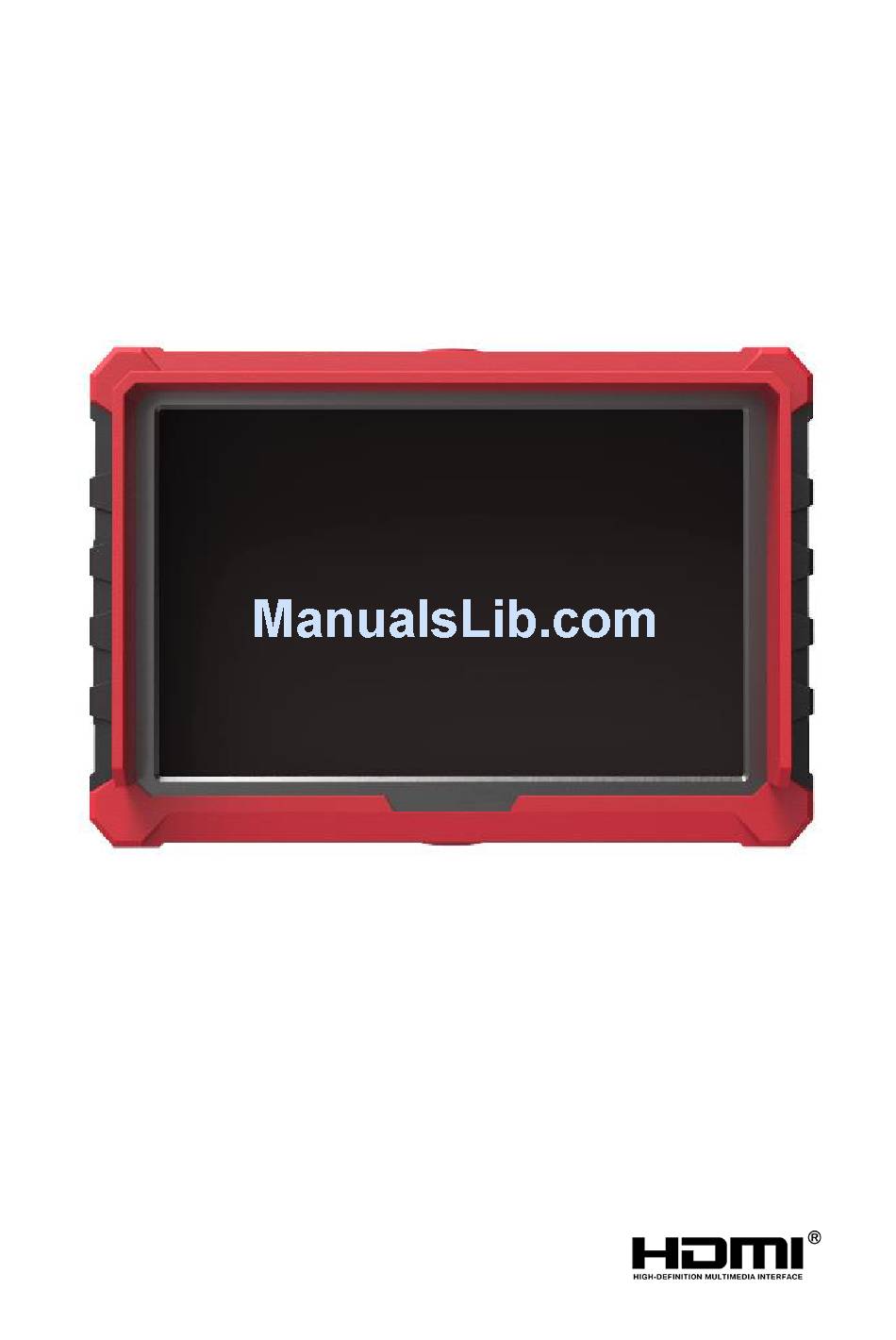

Page 1: User Guide
User Guide... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS: Please read user guide before using this product. Please keep user guide for future reference. Please read the cautions to prevent possible danger and loss of property. FEATURES: High resolution: 1920×1200; Wide voltage: DC 7-24V; ... -
Page 3: Table Of Contents
Contents 1. PRODUCT DESCRIPTION ........... 3 2. DV BATTERY MOUNT PLATE ........4 3. MENU SETTING ............5 4. ACCESSORIES ............8 5. PARAMETERS ............. 9 6. TROUBLE SHOOTING ..........9... -
Page 4: Product Description
1. PRODUCT DESCRIPTION 1．MENU Dial: Menu key: press the dial to display menu on the screen when screen is lit. Options key: left or right sliding the dial in the menu screen to select the desired menu option. Confirm key: press the dial to confirm the selected option. -
Page 5: Dv Battery Mount Plate
2. DV BATTERY MOUNT PLATE Standard mounts process ① First place battery plate into the slot, then slide the switch to left. ② Then slide the battery plate down into the slot. Following two types of battery plates are suitable for this device, the standard option of battery plate model is F970. -
Page 6: Menu Setting
3. MENU SETTING Before setting the functions, please make sure the device is connected correctly. 3-1. F1~F2 User-definable function buttons: Select "MEMU -- SYSTEM -- F1 Configuration/F2 Configuration" to custom F1 / F2 shortcut settings. Then left or right sliding the dial to choose options. - Page 7 Main Menu Picture, Marker, Function, Waveform, Audio, System 0~100 Brightness Contrast 0~100 Saturation 0~100 Tint 0~100 Sharpness 0~100 Color Temp 6500K, 7500K, 9300K, User (R.G. B) Picture Red Gain 0~255 Green Gain 0~255 Note: Available only under Blue Gain 0~255 “User”...
-
Page 8: Accessories
4. ACCESSORIES Standard: 1. Folding sun shade cover 1 piece 2. Silicon rubber case 1 piece 3. HDMI A/C cable 1 piece 4. Battery plate(F970) 1 pieces 5. Hot shoe mount 1 piece 6. Manual 1 copy... -
Page 9: Parameters
5. PARAMETERS Panel 7” IPS Physical Resolution 1920×1200 (324ppi) 500 cd/㎡ Brightness Contrast 1000: 1 Viewing Angle 170°/ 170°(H/V) Input Voltage DC 7-24V Input Signal HDMI Output Signal HDMI ≤11W Power Consumption ℃ ℃ Operating Temperature ℃ ℃ Storage Temperature Dimension (LWD) 182*124*20.5mm Weight...
