6. Select Off or choose Dialnorm Only, Dialnorm+RF, or Dialnorm+Line.
RF and Line are modes of Dynamic Range Control (compression) factors that
are applied when decoding Dolby content for monitoring or output.
7. Select Downmix Dynamic Rng.
8. Toggle to Line or RF. These Dynamic Range Control (compression) factors
are applied when downmixing to the various Dolby D Listening Modes.
9. Select Dolby E Setup. The settings you make apply to the input when Dolby
E content is detected for the Dolby input selected.
10. Select Dialnorm and toggle to On or OFF. When On, the dialog
normalization is applied to the audio bars and the analog and digital outputs.
11. Select Pulldown Decoding and toggle to On or OFF. When On, pulldown
decoding is applied to the audio bars and the analog and digital outputs.
12. Select Guardband Limits for either SD/Cpst or HD/DL/3G. If you select
Custom, you can then set the line maximum and minimum. In the CONFIG >
Audio Inputs/Outputs > Dolby E Setup menu, you can configure guardband
limits.
NOTE.
Dolby E Guardband allows you to set the Dolby E frame location
threshold. You can disable the alarm or customize the threshold.

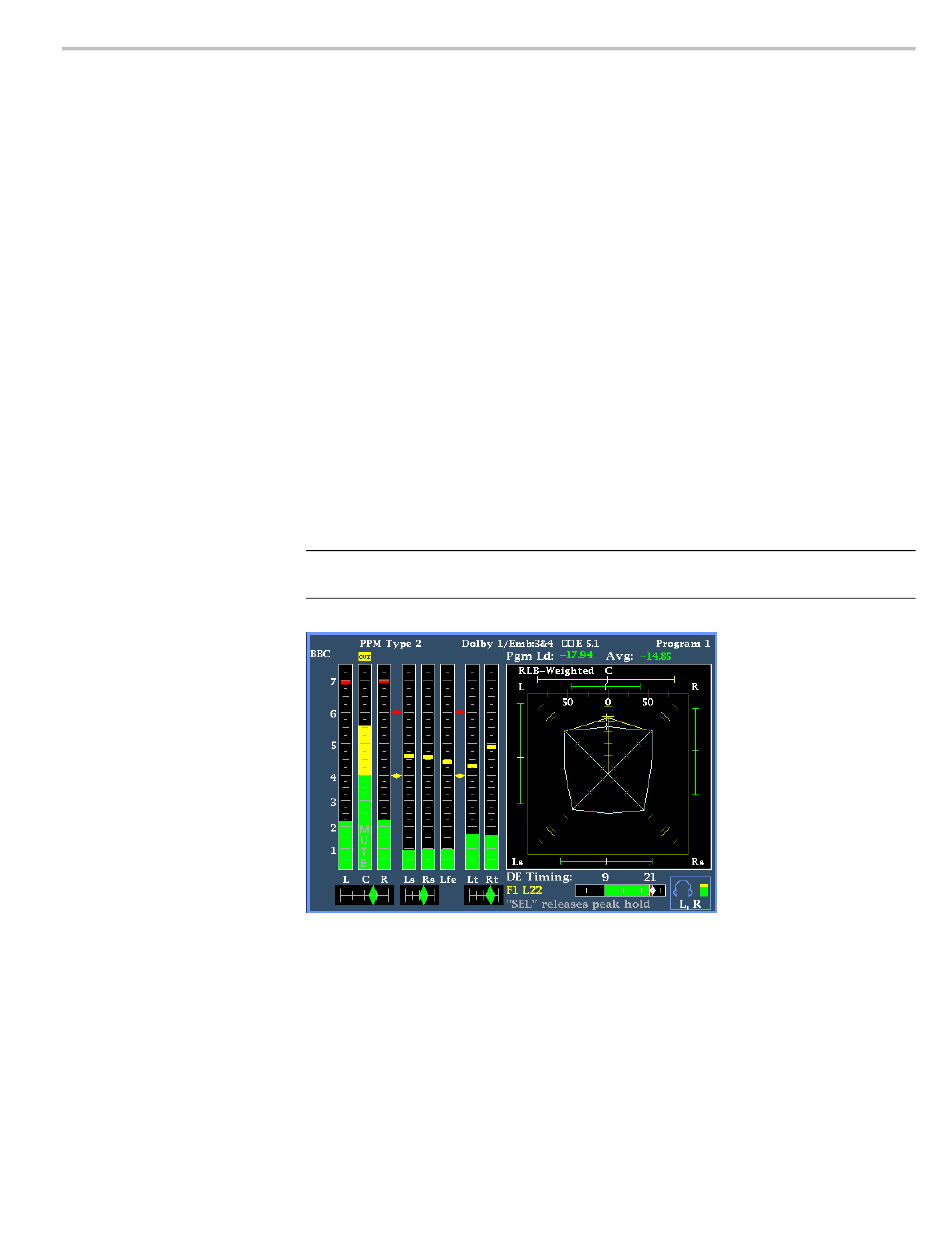

Figure 72: Dolby surround sound display
13. View the Dolby Guardband thermometer, which is located at the bottom of
the Audio display. The thermometer is green for levels that fall within the
limits you have set. (See Figure 45.)
