oConnor O-Box WM Set User Manual page 22

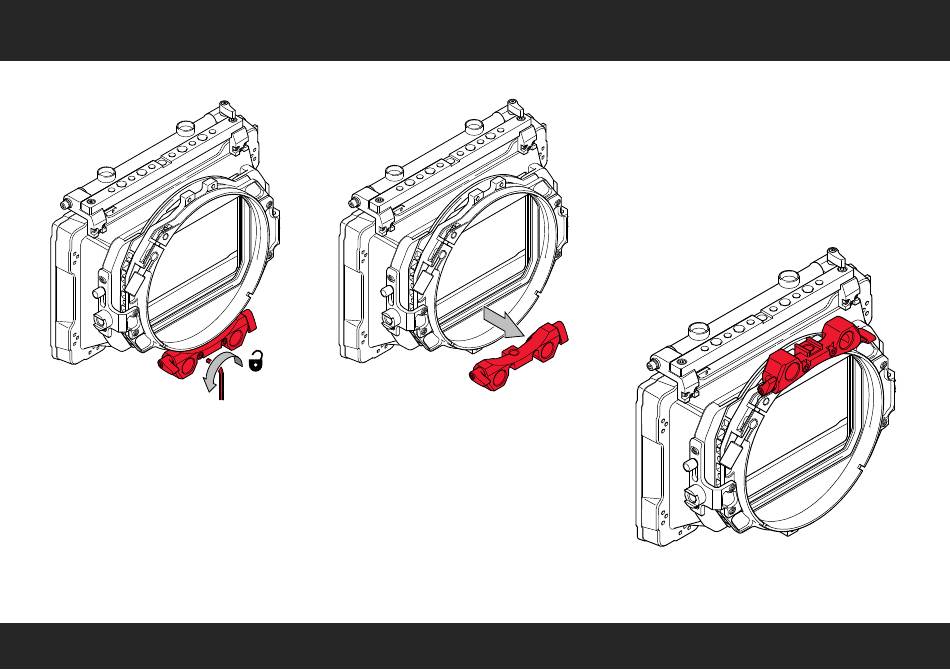

adjusting the LWS rod bracket
1
The O-Box WM comes with an LWS rod bracket
attached. Mount the O-Box WM onto camera rods
above the camera using a 3 mm Allen or hex key
to unscrew the two screws holding the LWS rod
bracket and remove the bracket.
22
2
Attach the LWS rod bracket at the top of the rear
clamping interface. Use the two screws to secure
the bracket in place.
The O-Box WM mattebox can be attached to a
camera fitted with an OConnor Follow Focus with
the camera rods mounted above or below the
camera lens. The complete O-Box WM mattebox
assembly, including a suitable lens adapter, is then
mounted flush on camera rods using the 15 mm
LWS rod bracket.
