Summary of Contents for oConnor CFF-1 Pro Kit

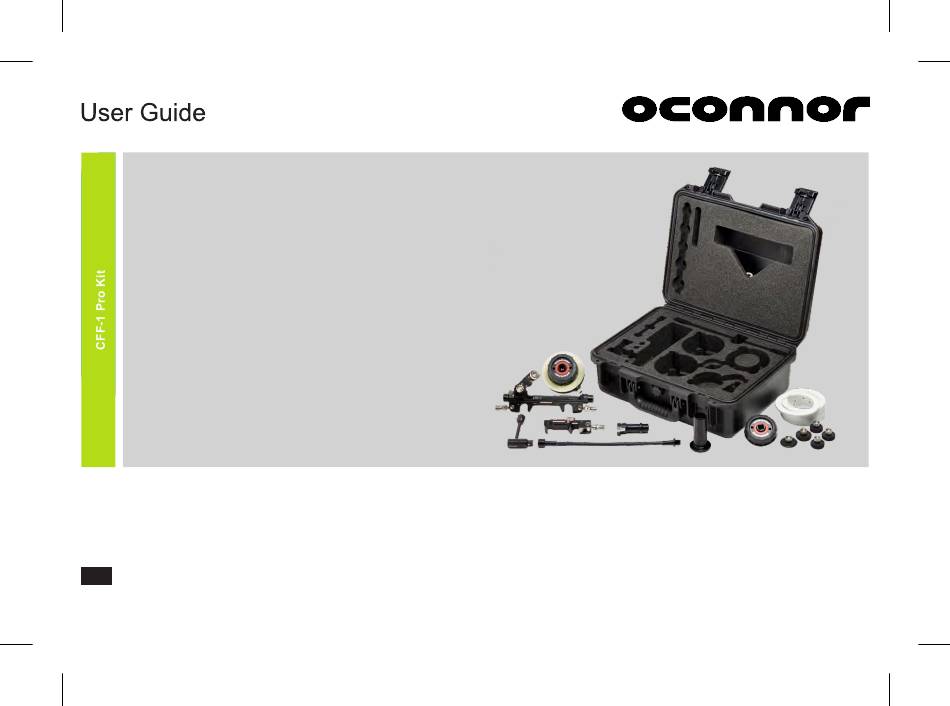

- Page 1 CFF-1 Pro Kit Part No. C1241-0003 www.ocon.com...
- Page 2 Copyright © 2014 The Vitec Group plc Oconnor is a registered trademark of The Vitec Group plc or an affiliate thereof in one or more, but not all, countries.
-
Page 3: Table Of Contents
Contents The Cine Follow Focus One ..........4 Specification . -
Page 4: The Cine Follow Focus One
The Cine Follow Focus One... -
Page 5: Specification
Specification CFF-1- Pro Kit C1241-0003 ight (incl. main bridge, studio rod, handwheel) ... 1.83 lbs (0.83 kg) Weight of handwheel ........0.73 lbs (0.33 kg) Dimensions (WxHxD) . - Page 6 Specification CFF-1- Pro Kit C1241-0003 Flexi-drive Dimensions of the handwheel ....Ø2.9 x 1.5 in. (Ø74 x 39.5 mm) Dimensions of the hand grip ....Ø1.9 x 3.2 in.
-
Page 7: In The Box
In the box CFF-1 - Pro Kit C1241-0003 Marking Discs (10 pack) C1241-1530 Swing Arm C1241-1200 Main Bridge C1241-1400 CFF-1 Studio Handwheel (full-size offset knob) C1241-1100 Studio Rod Bridge C1241-1300... - Page 8 In the box CFF-1 - Pro Kit 15mm LWS Rod Bridge Handwheel Extension C1241-0003 C1241-1540 C1241-1500 Hand Grip C1241-1516 Shaft Assembly Flexi-drive Handwheel C1241-1515 C1241-1514 Crank Handle C1241-1520 Storm Case (including foam insert) Flexidrive Assembly Kit: C1241-1850 Handwheel C1241-1514 Shaft Assembly C1241-1515 Hand Grip C1241-1516...
-
Page 9: Accessories
Fujinon ENG focus 60 tooth 50 tooth C1241-1800 C1241-1900 Storm Case (including foam insert) C1241-1850 Matching OConnor accessories: Studio rod bridge C1241-1300 (depending on lens) Handwheel (for double-sided use) C1241-1100 (Cine) C1242-1100 (Photo) Handwheel extension (70 mm) C1241-1500 “Glow-in-the-dark” marking disc... -
Page 10: Caution
DO NOT hang heavy items over the handwheel. Ÿ AVOID overtightening the drive gear onto the lens focus drive. Ÿ ALWAYS use genuine OConnor parts and accessories with the Cine Follow Ÿ Focus One. Ÿ NEVER use solvents or oil-based cleaners to clean the Cine Follow Focus One. -
Page 11: Components
Components index CFF-1 handwheel drive gear swing arm witness marker lock lever main bridge lock lever rod clamp lock lever studio rod bridge marking disc... -
Page 12: Repositioning The Lock Levers
repositioning the lock levers To reposition the lock levers: Pull the lock lever towards you. Slide the studio rod bridge* onto the main bridge. Rotate the lock lever to the correct position. Secure the studio rod bridge using the two lock levers. Push the lock lever to secure into position. -
Page 13: Mounting The Swing Arm & Drive Gear
mounting the swing arm & drive gear Ensure that the teeth on the swing arm and main bridge interlock. Firmly hold the top of the swing arm (where the drive gear fits) whilst tightening the knurled screw. Note: The swing arm can be mounted on either side of the main bridge. -
Page 14: Mounting The Handwheel
mounting the handwheel Push the handwheel firmly into the end of the main bridge. PUSH Hold the handwheel firmly in position at the end of the main bridge and secure using the lock lever. Important note: Ensure that you can clearly see the witness marker. -
Page 15: Mounting Onto The Camera Rods
mounting onto camera rods Place the Cine Follow Focus One onto the camera rods so that the drive gear is adjacent to the lens focus drive. Secure into position using the knurled screws at the end of the studio rod bridge. The Cine Follow Focus One can be mounted from camera rods suspended above the camera. -
Page 16: Engaging The Drive Gear
engaging the drive gear Loosen the lock lever securing the Position the swing arm, so that the drive swing arm in position. gear engages with the lens focus drive. Secure the swing arm into position using the lock lever. Note: If the swing arm is mounted on the back of the main bridge, as shown, turn the lock lever clockwise to loosen the swing arm. - Page 17 engaging the drive gear Turn the handwheel. Ensure that the drive gear engages and drives the lens focus drive. Note: The drive gear can be positioned above or below the lens depending on your camera setup.
-
Page 18: Markings Discs & Witness Marker
marking discs & witness mark Set the focal distances for the Cine Follow Focus One. Using To move the witness mark: a suitable pen mark the lens focal reference points on the marking disc. The handwheel is supplied ready with a marking disc. -
Page 19: Mounting The Flexi-Drive
mounting the flexi-drive To Mount the flexi-drive: Mount the flexi-drive to the Cine Follow Focus One to enable the focus to be adjusted quickly and easily. The Connect the end of the flexi-drive assembly comprises a handwheel, hand grip flexi-drive to the Cine and shaft. -
Page 20: Mounting The Crank Handle & Extension Bar
mounting the crank handle & extension bar For larger camera packages a 70 mm extension Mount the crank handle to the Cine Follow Focus bar can be used. One to enable the focus to be adjusted with minimum effort. To mount the extension bar: To mount the crank handle: Push-fit the extension bar onto the handwheel and Connect the crank... -
Page 21: Dismounting
Dismounting Loosen the knurled screws at the end of the studio rod bridge to release the rod clamps. Loosen the lock lever on the swing arm to disengage the drive gear from the lens focus drive. Position the drive gear away from the lens and secure using the lock lever. -
Page 22: Storage
Storage Remove the drive gear from the swing arm. Loosen the lock lever securing the swing arm and fold the swing Remove the handwheel(s) by arm down onto the main bridge. loosening the lock lever at the back of the handwheel and sliding the handwheel free from the main bridge. -
Page 23: Maintenance
Maintenance Adjusting the handwheel tension belt (if required). Using a 2mm Allen key, loosen the two screws Taking care, push down on the top of the that secure the tension belt housing. tension belt housing to increase the tension of the belt. - Page 24 Publication part No. C1241-4980/3 Connor ™ www.ocon.com itec Group brand Connor ™ itec Group brand...
