mounting onto camera rods

20
The O-Box WM can be fitted with a 15 mm or 19 mm studio adapter
and a 3-system (O-Grips) rod bridge to suit standard camera rods
(see page 9) supporting lightweight to heavy accessory loads.
Turning the lock levers clockwise secures the mattebox on the rods.
For more information about rod adapters visit OConnor Labs online
at the OConnor website (see OConnor > Labs > 'Rod Standards
Explained').

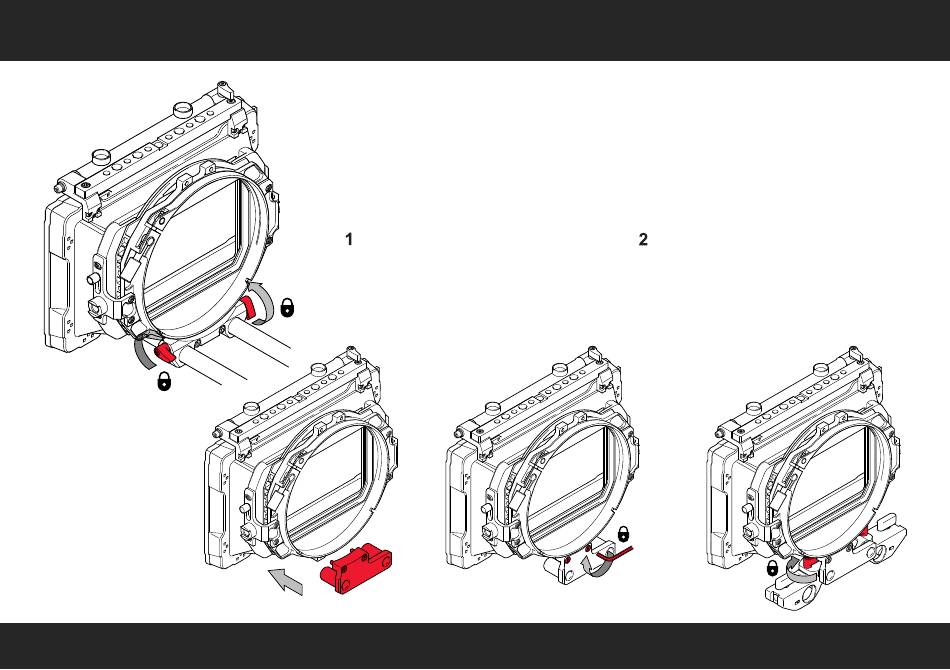

Remove the LWS bracket (see page 19).
Align the studio adapter and—using a 3 mm
Allen or hex key—tighten the two cap head
screws to secure the adapter.
Mount the 3-system rod bridge. Align the
bridge mounting holes with the adapter
rods, then push the bridge forward onto the
rods. Turn the lock levers clockwise, tighten
firmly to secure the bridge in position.
