Assembly – assembling the filter frames
1

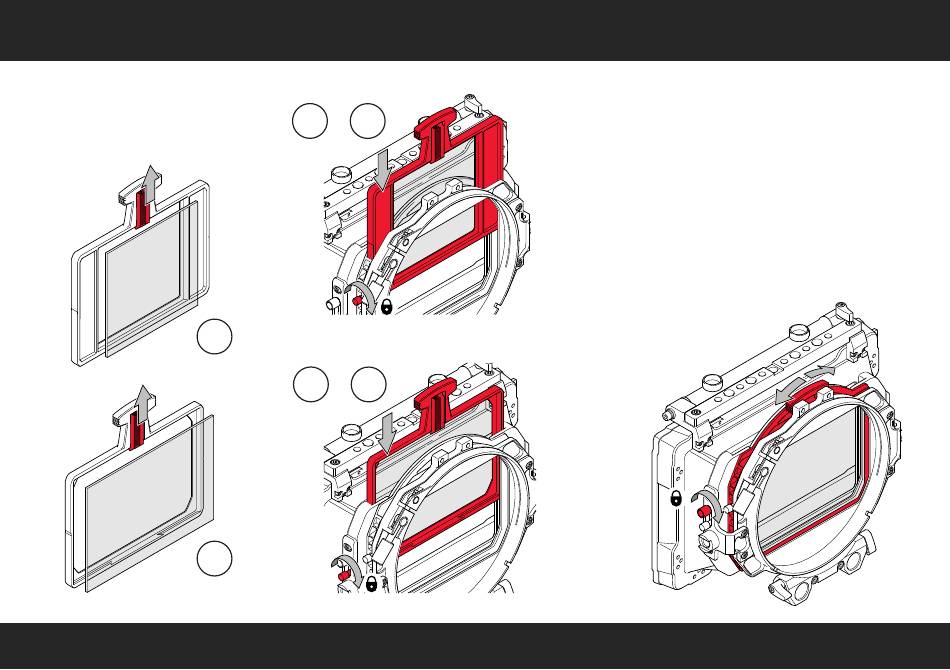

Push up the filter spring. Align the
filter in the frame, then release the
spring to fix the filter in place.
A
4" x 4"
B
4" x 5.65"
A
B
OR
rear stage
A
B
OR
front stage
2
Slide the assembled filter frame
Two filter stages are available between the sunshade
and the rear clamping interface: one fixed and one
rotatable stage. Slowly push the filter frame down,
until it audibly 'clicks' into place. If you can feel
mechanical resistance, slacken the red fixing screw
a few turns (see step 3).
3
Turn the red fixing screw on the filter stage
clockwise to secure the filter frame in position.
The rear filter frame can be rotated 360°.
Push the head of the filter frame to the left
or right. Tighten the large silver fixing
screw on the front filter stage to
lock the rotation.
into the filter stage.
