assembling the flags

2

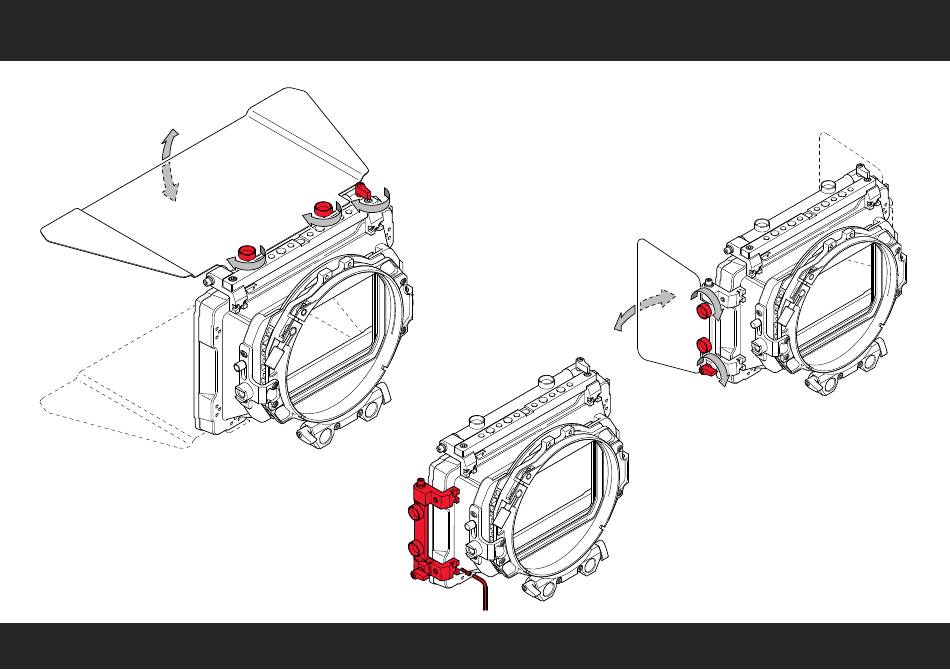

A set of two side flags and two flag brackets
are available as optional accessories. Attach a
flag bracket on either side of the sunshade;
use a 2 mm Allen or hex key and secure the
bracket with the six screws and two rectangular
nuts supplied.
16
1
If required, turn the lock lever anti-clockwise to unlock the flag axle.
Adjust the axle so the hollow knurled screws point upward.
Turn the knurled screws anti-clockwise a few turns to slacken.
Align the cutouts at the bottom of the flag with the screw threads,
then push the flag into position and tighten the screws.
Adjust the angle of the flag as desired, then tighten the lock
lever clockwise to fix the flag in the desired position.
3
Repeat the steps outlined above for the
bottom/top flag also for the side flags
(see step 1). Adjust each flag's position
as desired, then tighten the lock lever
firmly to fix in position.
