- Page 1 READ THIS FIRST VENTILATOR USER GUIDE MODEL 724BCX...
-
Page 3: Table Of Contents

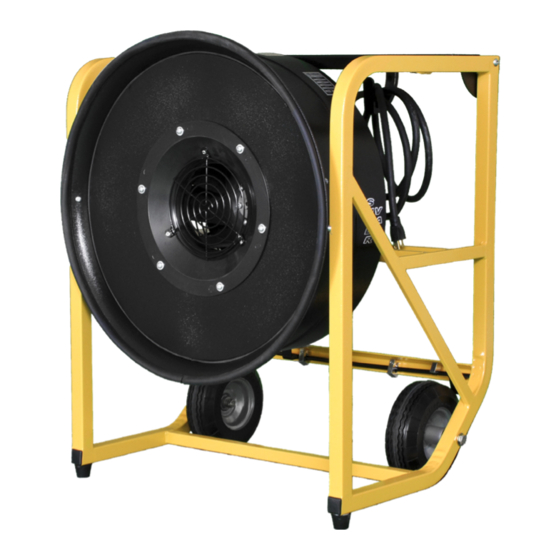

BRAKE COOLING FAN USER GUIDE This manual covers the description, cautions, operation, and maintenance of the Super Vac 724BCX. Please take the time to read this manual before operating the fan. Save this guide for future reference. CONTENTS 1. BREAKAGE OR DAMAGE DURING SHIPMENT.......................... -
Page 4: Breakage Or Damage During Shipment
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you some time later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of these damaged goods, your claim may not be paid. 724BCX User Guide Revised 2-2015... -
Page 5: General Description And Specifications
2. General Description and Specifications Super Vac ventilators are specifically designed to provide a convenient and portable source of fresh air. Refer to decal affixed to ventilator to determine proper operating voltage requirements. Super Vac electric ventilators are single speed, fresh air ventilators, for use in extreme conditions. -
Page 6: Before Operating Ventilator
Use caution not to direct toxic fumes into confined spaces with the ventilator. Insert power cord plug into 115/230 VAC power receptacle to begin ventilation. To stop ventilation turn motor switch to off position, remove power cord plug from AC power receptacle. 724BCX User Guide Revised 2-2015... -
Page 7: Maintenance And Repair
Remove ventilator guards. Clean blade and inside housing with mild detergent and water. Do not use abrasives, sharp instruments or caustic solvents that may scratch or damage the aluminum alloy blade. 724BCX User Guide Revised 2-2015... -
Page 8: Troubleshooting
Do not exceed generator capacity. • Using accessory ducting of too small a diameter or excessive length. • Incorrect amperage circuit breaker for circuit load • Using reeled or coiled extension cords. 724BCX User Guide Revised 2-2015... -
Page 9: Extension Cords
Minimum Wire Gauge Maximum Cable Length 2000 150 ft 4000 250 ft 6000 350 ft * Multiple units powered by one extension cord ** Minimum running wattage for multiple units. Startup amerage draw is much higher. 724BCX User Guide Revised 2-2015... -
Page 10: Warranty
4. Any service other than our Authorized Service voids this warranty. 5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties of MERCHANTABILITY or FITNESS for a particular purpose. 724BCX User Guide Revised 2-2015... -
Page 11: Contact Information
BRAKE COOLING FAN 10. Contact Information For parts or service information, contact: Super Vacuum Manufacturing Company, Inc. 3842 Redman Dr. Fort Collins, CO 80524 Phone: 800-525-5224 970-297-7100 Fax: 970-297-7099 Email : info@supervac.com Internet: www.supervac.com 724BCX User Guide Revised 2-2015... -
Page 12: Parts List
STOCK CAP COVER FOR 718 HANDLE TAB 003-14149 BLADE, PROPELLER, #C-T2-TAL280-1R PB831 005-10145 SWITCH CA204-73 .1- 1/2 HP 021-10489 MOTOR FOR 724BCX, 1.5HP, EXP, 3450 RPM 005-10120 CORD 14-3 SO 10' MOLDED 019-10466 724 BC, SHROUD SUPPORT, BRACKET 032-10790 5/16-18 NYLOK HEX NUT ZINC 032-14565 3/8-16 X 4 1/2"... -
Page 13: Exploded View
BRAKE COOLING FAN 12. Exploded View 724BCX User Guide Revised 2-2015...
