- Page 1 READ THIS FIRST VENTILATOR USER GUIDE MODEL 724BCG-H...
-
Page 3: Table Of Contents
BRAKE COOLING FAN USER GUIDE This manual covers the description, cautions, operation, and maintenance of the Super Vac 724BCG-H. Please take the time to read this manual before operating the fan. Save this guide for future reference. CONTENTS 1. BREAKAGE OR DAMAGE DURING SHIPMENT.......................... -
Page 4: Breakage Or Damage During Shipment
Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you some time later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of these damaged goods, your claim may not be paid. 724BCG-H User Guide Revised 4-2018... -
Page 5: General Description And Specifications

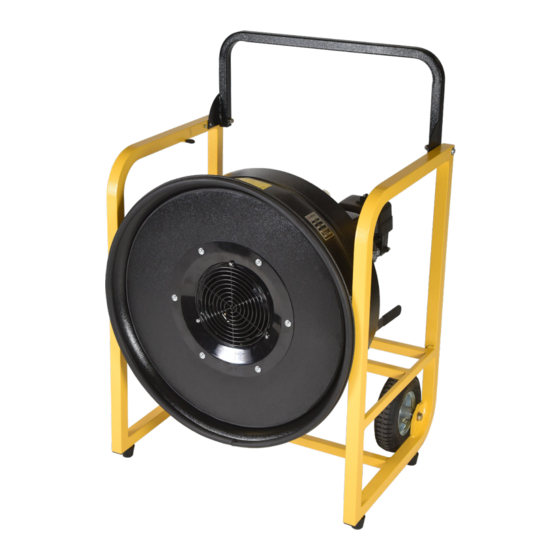

BRAKE COOLING FAN 2. General Description and Specifications Super Vac ventilators are specifically designed to provide a convenient and portable source of air. This ventilator is designed for high powered air movement. This document is designed to function as a quick start guide and not an in-depth comprehensive instructional manual. Please read all accompanying documents shipped with your ventilator. -
Page 6: Before Operating Ventilator
Before the engine can fall below a safe limit, the Oil Alert System will automatically stop the engine (the engine switch will remain in the ON position). The Oil Alert System is sensitive to the engine being operated at an incline. 724BCG-H User Guide Revised 4-2018... -
Page 7: Starting The Engine
Return starter grip gently to the recoiled position. Stopping the Engine 1. Move throttle lever to the SLOW position. 2. Turn engine switch to the OFF position. 3. Turn the fuel valve lever to the OFF position. 724BCG-H User Guide Revised 4-2018... -
Page 8: Maintenance And Repair
Every 100 Hours Every Year Check Level Engine Oil Change Check Air Filter Clean Replace Clean Gap Spark Plug Replace Fuel Tank Clean Sediment Cup Fuel Line Check See parts list for replacement part numbers. 724BCG-H User Guide Revised 4-2018... -
Page 9: Troubleshooting
Contamination in fuel tank blocking fuel line Drain fuel tank and carburetor. Refuel with fresh gasoline. Remove and Inspect Spark Plug Spark plug faulty, fouled, or improper gapped Clean, gap, or replace spark plug. 724BCG-H User Guide Revised 4-2018... -
Page 10: Warranty
4. Any service other than our Authorized Service voids this warranty. 5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties of MERCHANTABILITY or FITNESS for a particular purpose. 724BCG-H User Guide Revised 4-2018... -
Page 11: Contact Information
BRAKE COOLING FAN 9. Contact Information For parts or service information, contact: Super Vacuum Manufacturing Company, Inc. 3842 Redman Dr. Fort Collins, CO 80524 Phone: 800-525-5224 970-297-7100 Fax: 970-297-7099 Email : info@supervac.com Internet: www.supervac.com 724BCG-H User Guide Revised 4-2018... -
Page 12: Parts List
5/16” FLAT WASHER ZINC 005-10136 BUSHING REDUCER 3/4” X 1/2” 025-10544 DECAL CAUTION GUARDS REMOVED 008-13373 WHEEL PNEUMATIC DW414 3" HUB CENTER DECAL 724BCG-H YELLOW SAFETY 032-11129 3/8” FLAT WASHER USS ZINC 025-13426 DECAL SUPER VAC REFLECTIVE 032-11133 3/8-16 NYLOK HEX NUT ZINC... -
Page 13: Exploded View
BRAKE COOLING FAN 11. Exploded View 724BCG-H User Guide Revised 4-2018... - Page 14 GAS SPRING GAS SPRING MOUNT MOUNT, GAS SPRING 008-10211 CAP,FAN,HANDLE,718 034-11057 NUT,NYLOCK, 5/16-18 UNC,SS STD HARDWARE LW39 WASHER,LOCK,SPRING,REGULAR, 5/16", SS STD HARDWARE-HHCS-235 SCREW,HH,5/16-24x1-1/2,SS STD HARDWARE W24 WASHER,FLAT,USS, 5/16", SS STD HARDWARE-HHCS-35 SCREW,HH,5/16-18x1-1/2,SS AS568A-015 ORING,ID 0.551,SIZE 0.551,AS568A-015 724BCG-H User Guide Revised 4-2018...
