- Page 1 VENTILATOR USER GUIDE MODEL 724WT VentilatorUserGuide-724WT.doc Last printed 9/23/2002 12:48 PM...
-
Page 2: Table Of Contents
This manual covers the description, cautions, operation and maintenance of the Super Vac Hydraulic Positive Pressure Ventilator Model 724WT Please take the time to read this manual before operating the ventilator. Save this guide for future reference. CONTENTS 1. BREAKAGE OR DAMAGE DURING SHIPMENT.................................3 2. -
Page 3: Breakage Or Damage During Shipment
These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of these damaged goods, your claim may not be paid. VentilatorUserGuide-724WT.doc Last printed 9/23/2002 12:48 PM... -
Page 4: General Description And Specifications

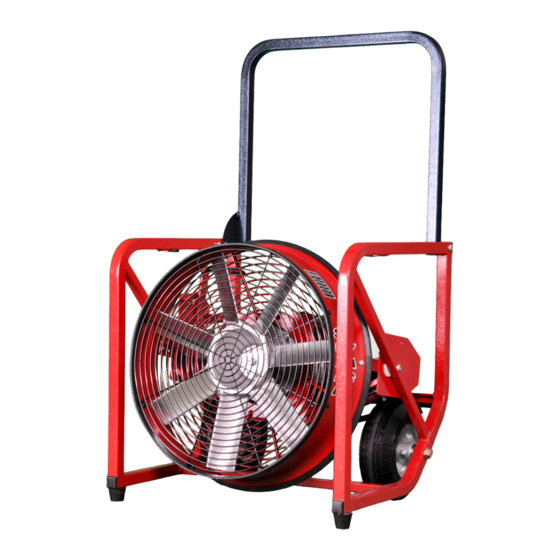

2. General Description and Specifications Super Vac ventilators are specifically designed to provide a convenient and portable source of air. Super Vac positive pressure ventilators are tested to AMCA PPV Standard 240-95, for use in extreme conditions. Specifications Weight (lbs.) -
Page 5: Product Safety Precautions
§ A complete inspection of the ventilator should be made prior to operation. § Check all threaded fasteners for proper tightness. § Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing guards before operating ventilator. VentilatorUserGuide-724WT.doc Last printed 9/23/2002 12:48 PM... -
Page 6: Operation
174 psi, and the resisting torque of the driven machine is 7.4 lb/ft, the rotational speed is 4560 rpm, water consumption is 117 gpm (graph 1) and the usable power is 6.5 HP (graph 2) VentilatorUserGuide-724WT.doc REV. 09/23/02... - Page 7 Inlet Pressure Water Flow Air Flow 5168 8781 10112 17179 10.0 16178 27487 13.3 19100 32450 16.7 22470 38177 The maximum feed pressure is 300 psi (20 bar). VentilatorUserGuide-724WT.doc Last printed 9/23/2002 12:48 PM...
-
Page 8: Parts List
ITEM PART DESCRIPTION NUMBER NUMBER 012-10282 GUARD 724 24" FRONT-PAINTED 025-13367 DECAL 724WT SER# GREY 032-15540 10-24 X 1/2 PHIL PH MS W/TEFLON PATCH BL 025-15255 DECAL SUPERVAC RED LETTER W/WHITE BACK 003-10050 BLADE 24" 7 BLADE GAS FINISHED 025-13404... -
Page 9: Exploded View Drawing
7. Exploded View Drawing VentilatorUserGuide-724WT.doc REV 09/23/02... -
Page 10: Warranty
4. Any service other than our Authorized Service voids this warranty. 5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties of MERCHANTIBILITY or FITNESS for a particular purpose. VentilatorUserGuide-724WT.doc REV. 09/23/02... -
Page 11: Contact Information
9. Contact Information For parts or service information, contact: Super Vacuum Manufacturing Company, Inc. 3842 Redman Dr Fort Collins, CO 80524 Phone: 1-800-525-5224 970-297-7100 FAX: 970-297-7099 Internet: www.supervac.com VentilatorUserGuide-724WT.doc REV 09/23/02...
