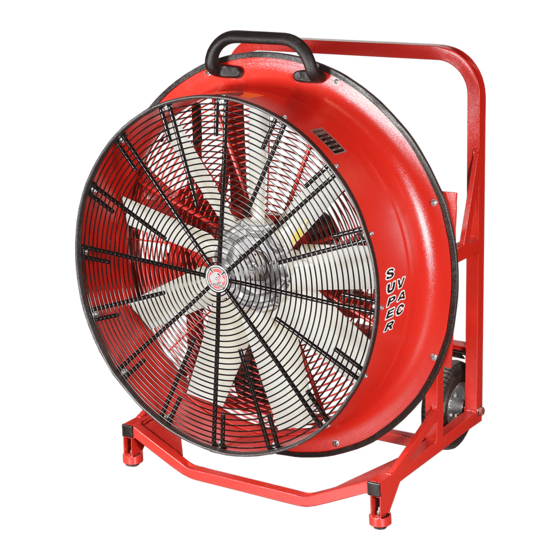

- Page 1 VENTILATOR USER GUIDE MODEL 730WT VentilatorUserGuide-730WT.doc 3-2013...
-
Page 3: Table Of Contents
This manual covers the description, cautions, operation and maintenance of the Super Vac Water Powered Positive Pressure Ventilator Model 730WT Read this manual before operating the ventilator. Save this guide for future reference. CONTENTS 1. BREAKAGE OR DAMAGE DURING SHIPMENT ..............................3 2. -
Page 4: Breakage Or Damage During Shipment
These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of these damaged goods, your claim may not be paid. VentilatorUserGuide-730WT.doc 3-2013... -
Page 5: General Description And Specifications
Specifications are subject to change without notification. Refer to model decal affixed to ventilator to determine actual specifications. This ventilator is designed for high powered air movement. Super Vac ’s propeller produces a greater intake of air and eliminates turbulence at the tips. Each blade is statically balanced for high efficiency and long life. -
Page 6: Product Safety Precautions
A complete inspection of the ventilator should be made prior to operation. Check all threaded fasteners for proper tightness. Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing guards before operating ventilator. VentilatorUserGuide-730WT.doc 3-2013... -
Page 7: Operation
Example: If the inlet pressure of the water supplied to the motor is 174 psi, and the resisting torque of the driven machine is 7.4 lb/ft, the rotational speed is 4560 rpm, water consumption is 117 gpm (graph 1) and the usable power is 6.5 HP (graph 2) VentilatorUserGuide-730WT.doc 3-2013... - Page 8 Inlet Pressure Water Flow Air Flow 5980 10160 12320 20930 10.0 18540 31500 13.3 21800 37040 16.7 24800 42130 The maximum feed pressure is 300 psi (20 bar). VentilatorUserGuide-730WT.doc 3-2013...
-
Page 9: Parts List
PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION 012-13702 GUARD 730" FRONT-PAINTED 025-13368 DECAL 730WT YELLOW SAFETY 032-15540 10-24 X 1/2 PHIL PH MS W/TEFLON PATCH BL 025-13367 DECAL 730WT SER# GREY 003-10050 BLADE 24" 7 BLADE GAS FINISHED 025-15255 DECAL SUPERVAC RED LETTER W/WHITE BACK 018-10402 SHROUD 24"... -
Page 10: Warranty
4. Any service other than our Authorized Service voids this warranty. 5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties of MERCHANTIBILITY or FITNESS for a particular purpose. VentilatorUserGuide-730WT.doc 3-2013... -
Page 11: Contact Information
8. Contact Information For parts or service information, contact: Super Vacuum Manufacturing Company, Inc. 3842 Redman Dr Fort Collins, CO 80524 Phone: 1-800-525-5224 970-297-7100 FAX: 970-297-7099 Internet: www.supervac.com VentilatorUserGuide-730WT.doc 3-2013...
