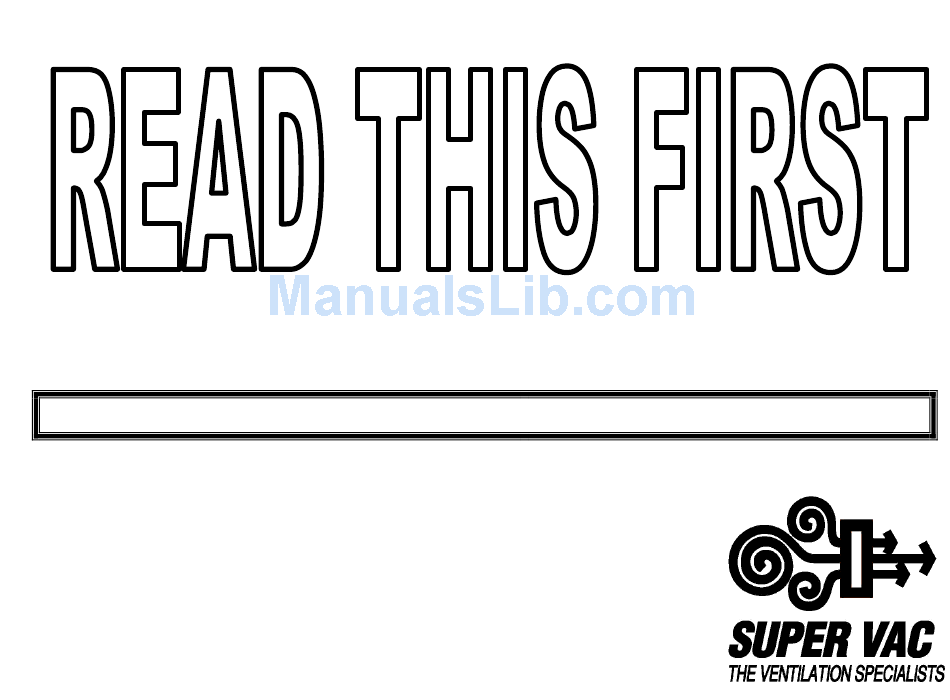

- Page 1 VENTILATOR USER GUIDE MODEL 724EXP...
-
Page 2: Table Of Contents
USER GUIDE This manual covers the description, cautions, operation and maintenance of Super Vac explosion proof electric PPV ventilators. Please take the time to read this manual before operating the ventilator. Save this guide for future reference. CONTENTS 1. Breakage or Damage During Shipment ....................................2 2. -
Page 3: Breakage Or Damage During Shipment
User Guide 1. Breakage or Damage During Shipment The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it correctly. Please read these instructions carefully. Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and have them make a description on the freight or express bill describing the damage and the number of pieces. -
Page 4: General Description And Specifications

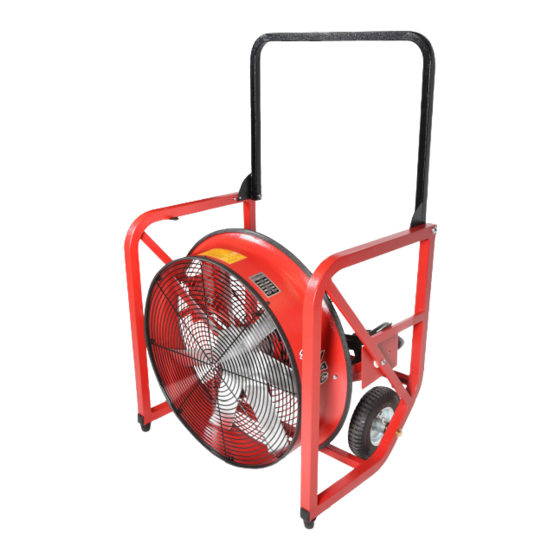

2. General Description and Specifications Super Vac ventilators are specifically designed to provide a convenient and portable source of fresh air. Refer to decal affixed to ventilator to determine proper operating voltage requirements. Super Vac electric ventilators are single speed, fresh air ventilators, for use in extreme conditions. -
Page 5: Product Safety Precautions
User Guide 3. Product Safety Precautions Ø Do not use the ventilator for purposes other than its’ intended use. Ø Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury. Ø... -
Page 6: Operation
Place ventilator in desired location before connecting to power supply. Extend and place any flexible duct as required. Use caution not to direct toxic fumes into confined spaces with the ventilator. Please refer to the Super Vac Training Manual for Smoke Ventilation for comprehensive instruction on effective ventilation practices. -
Page 7: Troubleshooting Motor Overheating Problems
§ Using too small gauge of extension cord. § Exceeding maximum length extension cord. § Insufficient unobstructed distance on exhaust side of ventilator. Please refer to the Super Vac Training Manual for Smoke Ventilation for recommended ventilator placement. § Insufficient wattage generator. When running multiple ventilators on one generator, plug ventilators in one at a time. -
Page 8: Extension Cords
ELECTRIC VENTILATOR 8. Extension Cords Do not use reeled or coiled cable. Reeled or coiled cable can produce a counter EMF (electromotive force). The counter EMF can reduce the current carrying capability of an extension cord. This counter EMF will result in a voltage drop within the motor instigating a thermal overload condition. -
Page 9: Warranty
User Guide 9. Warranty Limited Warranty Five Years Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship when used and operated for a period of five years. The responsibility of Super Vacuum Manufacturing Company under this limited warranty is limited to the repair and replacement of any parts which are found defective and which are returned to Super Vacuum Manufacturing Company at 1303 East 11th Street, Loveland, Colorado 80537 with transportation charges prepaid (C.O.D. -
Page 10: Contact Information
ELECTRIC VENTILATOR 10. Contact Information For parts or service information, contact: Super Vacuum Manufacturing Company, Inc. PO Box 87 Loveland CO 80539 Phone: 1-800-525-5224 970-667-5146 FAX: 970-667-4296 Internet: www.supervac.com 724EXP_PPVentilatorUserGuide-Electric-EXP.doc REV 03/20/03... -
Page 11: Parts List
PLUG FINISHING SQ RIBBED, BLACK 1" 025-10544 DECAL CAUTION GUARDS REMOVED 018-10408 TUBE FRAME 24” PAINTED 025-13413 DECAL 724EXP YELLOW SAFETY 018-15016 724 SHROUD SUPPORT BRACKET 025-13411 DECAL 724EXP SER# GREY 032-14564 3/8-16 X 2 1/2” SOCKET BUTTON HEAD CS ZN... -
Page 12: Exploded View
ELECTRIC VENTILATOR 12. Exploded View Model 724EXP CAUTION CONSULT ENGINE OWNERS MANUAL BEFORE OPERATING 724EXP_PPVentilatorUserGuide-Electric-EXP.doc REV 03/20/03...
