8 ON SCREEN MENU

All system functions can be operated from the keypad or
remote control, with the aid of a complete, user-friendly on
screen menu.
iNPUTS
The input selection menu is called by pressing 0 on the remote
control or with the keypad SOURCE key. To select an input, scroll
through the list with the ▲ e ▼ keys until the required input is
highlighted, then press ▶.
Display of the input selection menu is terminated by pressing
the ESC key or when the On-Screen Menu display timeout in-
terval (set in the Menu Setup) has elapsed or after the signal's
recognising.
The inputs can receive RGB and YPrPb signals, at 15 kHz, 3 kHz
or higher. The input and type of signal (RGB or YPrPB) are set in
the pull down menu at the right of the symbol < after pressing
the ◀ key (Fig. 14).

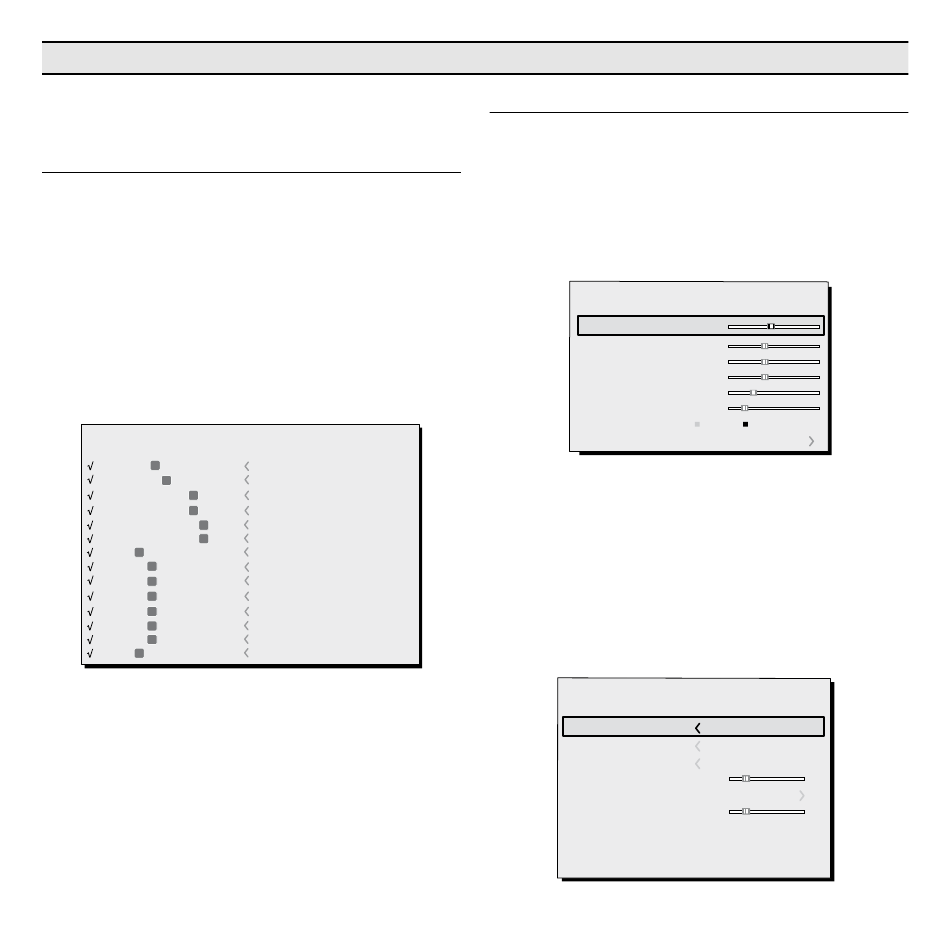

Source list / Rename source
1 VIDEO
1
2 S-VIDEO
2
3 COMPONENT
3
4 COMPONENT
4
5 GRAPHICS RGB
5
6 GRAPHICS RGB
6
7 DVI
7
8 HDMI
8
9 HDMI
9
10 HDMI
10
11 HDMI
11
12 HDMI
12
13 HDMI
13
14 SDI
14
HDMI 8-13 inputs can receive the signals from DVI-D sources.
During the short time it takes to find the signal, a box appears
showing the signal requested. As soon as the signal is shown
additional information is displayed in the box concerning the
video standard (for video signals) or resolution (for graphic
signals), format and the eventual user's memory.
This information can be recalled by pressing the numerical key
that it corresponds at the selected source.
In the SETUP menu you can select whether to display this infor-
mation or not; for further information see SOURCE INFORMATION in
the MENU menu.
16
VIDEO
S-VIDEO
COMPONENT
COMPONENT
GRAPHICS
GRAPHICS
DVI
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
SDI
Fig.14
MAiN MENU
To access the main menu of the On Screen Display press
the MENU key on the keypad or the MENU+ or MENU- key on the
remote control.
The main menu is divided into four windows, PICTURE, IMAGE,
SETUP and MENU, in which the various adjustments are grouped
according to the frequency of use. Use the ▲ and ▼ keys to
select the line corresponding to the adjustment you wish to
make (Fig. 15).
Brightness
Contrast
Color
Tint
Sharpness
Filter
Cinema Mode
Noise Reduction
The various menus only offer the relevant adjustments in ac-
cordance with the type of input signal displayed (e.g. certain
typical adjustments for video signals, not necessary for graphic
signals, do not appear on the menus, and vice versa).
Some adjustments (e.g. BRIGHTNESS and CONTRAST) are associated
with a numerical value that can be varied within the set limits
using the ◀ and ▶ keys.
For others (e.g. CINEMA MODE) you can choose between two
options presented on the same line and selectable using the
keys ◀ and ▶ (Fig.16a/b).
.
Aspect
Color Temperature
Gamma Correction
Overscan
Position
Y/C Delay
60
50
50
50
3
2
Off Auto
Auto
Fig.15
1
1
Fig.16a
