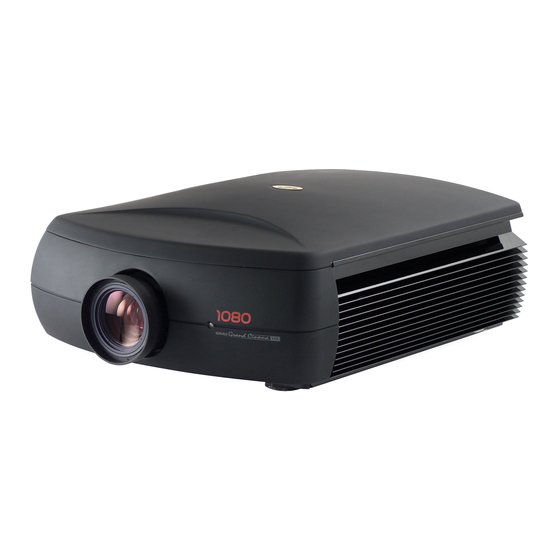

- Page 1 PRO5000 460637000...
- Page 2 1 REMOTE CONTROL AND KEYPAD BACKLighTiNg STAND-BY Backlights the keys on the remote control LIGHT Sets the projector to stand-by . KEYS 0-9 Select the sources directly. Switches on from Standby. SOURCE Displays the source selection menu. ESCAPE Switches on from Standby.
-
Page 3: Table Of Contents
Its image processing system allows optimum reproduction of a wide The appliance has been subjected to exhaustive operating tests by range of input signals, from interlaced video to high definition and SiM2 to ensure maximum quality. digital graphics. The projector bulb life should thus initially be around 30-60 hours. -
Page 4: Important Safety Instructions
2. You may return your old equipment to your dealer when you buy a new product which is equivalent or has the same functions as the old one. Call SiM2 Multimedia to find your local dealer. 3. if you need more information regarding recycling, reuse and product exchanges, please contact customer service on the number given in the manual. - Page 5 STATEMENT CLASS B PRODUCT Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 6 Projection lens. Cooling air inlet/outlet vents. Magnetic cover for lens sostitution. Bulb compartement. Remote control IR sensor on front of unit. Connnection panel. Unblock lens hole. Cooling air inlet/outlet vents. Adjustable feet. • Read this manual carefully and keep it in a safe place •...
- Page 7 Install the unit as close to the wall socket as possible. Avoid • Do not insert objects through the openings in the unit. stepping on power cables, make certain they do not be- Make sure that no objects are inserted inside the units. If this come tangled, and never jerk or tug them;...
-
Page 8: Unpacking
3 UNPACKiNg To remove the HT5000 system from its carton follow the diagrams (Fig. 1). for reason of the elevated weight of projector it reccom- mend to unpack the projector at least in 2 persons. Extract the carton box that contain the remote control, the user manual and the power cables. -
Page 9: Installation
FOCUS AUTO ASPECT itself. if using a bracket other than that supplied by SiM2 Multimedia, make sure that the projector is at least 65 mm below the ceiling and that the bracket does not obstruct the air vents (intake and outlet). - Page 10 TRIG 1 TRIG 2 Fig. 6 Fig. 4 For rear projection the screen must be translucent. The Orientation adjustment in the Set up menu allows you to For front projection, we recommend the use of a screen with reverse the image vertically and horizontally (Fig. 9), to allow black matt borders to contain the projected image.
-
Page 11: Switching The Projector On And Off
5 SwiTChiNg ThE PROJECTOR ON AND Off wARNiNg: Connect the projector to a power supply with a SwiTCh ON fROM STANDBY nominal voltage within the following values: 100-240 V AC, 50/60 hz. it must be earthed (fig. 8). With the remote control press one of the keys: - 0 to select the last imput selectet after last switching of. -
Page 12: Connections
Error (*) Red Color : On : Flashing (*): iN CASE Of ERROR, CONTACT YOUR LOCAL AND AUThORiZED SiM2 DEALER fOR SERViCE iNfORMATiON. Fig. 11 6 CONNECTiONS To obtain the best performance from your projector, we recom- mend the use of good quality “video cables”. - Page 13 Connection panel Television receiver Television receiver Professional & broadcasting equipements HDTV Receiver DVD Player HDTV Receiver DVD Player Videorecorder DVD Player Computer Videocamera Videorecorder Game Console Game Console HDTV Player 12 13 Blue-Ray Player Computer Television receiver HDTV Receiver...
- Page 14 HT5000 in the two cases: the COMPOSiTE ViDEO deinterlacing performed by the HT5000 is often more effective than that performed by the source itself. Fit an RCA connector with a Composite Video (CVBS) signal to this input.
-
Page 15: Remote Control
MOTORiSED SCREEN OUTPUTS RS232 iNTERfACE CONNECTOR TRIG 1 CONTROL RS232 12 Volt CONTROL USB LAN RJ45 TRIG 2 120 mA Fig. 1 Fig. 13 The projector is equipped with two outputs (Voltage: 1V) for The projector can be controlled from a PC: simply hookup the interface connector to a PC’s RS3 serial cable or to a PC's... -
Page 16: On Screen Menu
8 ON SCREEN MENU All system functions can be operated from the keypad or MAiN MENU remote control, with the aid of a complete, user-friendly on screen menu. To access the main menu of the On Screen Display press... - Page 17 These submenus are accessed by pressing the < key, while exit objects with lower level lighting, and try to ensure that all the and return to the upper level occurs by pressing MENU+/-. objects remain separately identifiable. Press ESC on the remote control or keypad to interrupt the...
- Page 18 Selecting the NO option causes the de-interlacer to apply a NORMAL: projects the image occupying the full height of the Motion compensated algorithm optimized for video camera screen while maintaining the aspect ratio of the input signal. signals. When the input signal aspect ratio is 4:3 black vertical bands are displayed on the right and left of the picture.
- Page 19 PC. The Enhanced set is suitable for watching movies. The Graphics set is suited to displaying graphics (PC, CAD, PC presentations, etc.). User enables you to define your own curve. You can thus...
- Page 20 Values from 1.5 to . allow you to emphasise the detail of dark adjustments. images, but reduce overall contrast. Values higher than . increase overall contrast, but reduce the detail of dark areas.
- Page 21 SETUP PROJECTiON LENS The ZOOM adjustment impacts on the motorized zoom lens The setup menu contains less frequently used adjustments allowing to increase or decrease the dimension of the projected that may be required during installation (e.g. The display of image.
- Page 22 Active video signal sources (shown in the inputs selection menu) are distinguished by tick symbols. It can be useful to identify the input with a user defined name Confirm? rather than the type of signal (for example, with the name of the connected device).
- Page 23 The remote control is equipped with two keys (F1 and F) which are associated with various different functions. Color Temperature The screen has six options, one for each line, and two columns Successive pressing F1 or F key makes it possible to select indicating the keys F1-F.
- Page 24 Some of these parameters may not be available for certain Restore current values inputs or certain input signals. When you enter the MEMORIES menu a copy of the current The menu page for the Memories management functions is settings is saved in a temporary memory (designated by 0 activated by pressing the key on the remote control.
- Page 25 Displays the current status of the projector and information concerning the projected video/graphic signal. This function is displayed on pressing the key on the remote control (or, in the absence of the On Screen Display, the ▶ key on the keypad).
-
Page 26: Cleaning And Maintenance 6
To clean the outer cover of the projector use a soft cloth and SiM2 RECOMMENDS ThAT ThE POwDER fiLTER iS CLEANED EACh moisten slightly if necessary with water and a small amount of TiME ThE LAMP iN ChANgED. -
Page 27: Optional Accessories 7
(if available for the input in question). 12 OPTiONAL ACCESSORiES You can purchase the following optional accessories at your Use only original or SiM2 Multimedia approved accessories. Dealer: warning: for ceiling/wall installation, by means of suspension - Ceiling mount kit... -
Page 28: Technical Specifications 8
TEChNiCAL SPECifiCATiONS OPTiCAL Texas Instruments DMDTM , resolution 190 x 1080 Panel: Lamp: P-VIP 300W 1.0 Dimmable Lamp Life: 1500 hrs typical Lente Zoom ,56 – 4,16:1 Lens Option with projection distances: Zoom, focus shift adjustment: Optical, motorized Max shift from on axis projection:... - Page 29 ELECTRONiCS CONTROL input signals: Control: Control: Panel (keypad), remote control, 1 COMPOSITE VIDEO (CVBS) via RS3 from PC or home automation gold plated RCA connectors devices, USB 1.1, LAN RJ45 1,0 Vpp / 75 Ohm, negative synchronisation EasyCinema application available through...
-
Page 30: Structure Of The On Screen Menu
ON SCREEN MENU LAYOUT HDMI™ Video • S-Video Component [NTSC] Ghaphics Brightness Brightness Brightness Contrast Contrast Contrast Sharpness Color Color Sharpness Mode Tint Sharpness Cinema Mode Sharpness Sharpness Mode Best Color Cinema Mode Filter Noise reduction Cinema Mode Noise reduction... - Page 31 Orientation Floor Keystone Floor-rear Horizontal Projection Lens Ceiling Vertical Zoom Ceiling-rear Lamp Power Focus Power On Lens shift Test patterns Initial settings Auto Stand-by English Italiano Français Deusch Español Português Language Pycc Source list F1 F2 F1/F2 keys Zoom...
-
Page 32: Dimensions
DiMENSiON 1 (Unit: mm) - Page 33 DiMENSiON 2 VALID MEASUREMENT ONLY WITH STANDARD LENS...
-
Page 34: Projection Distance
PROJECTiON DiSTANCE Meters Lens Type FWA -1* FWA -2* Short Med-Short Med-Long Long Throw Ratio** 0.67:1 1.11:1 1.39~1.87:1 1.87~2.56:1 2.56~4.16:1 4.16~6.96:1 Throw Distance 1.1 - 3.2 3 -15 4 - 24 4 - 24 9.1 - 45 12 - 80... -
Page 35: Vertical - Horizontal Shift
VERTiCAL - hORiZONTAL ShifT VERTICAL SHIFT +70% of image height DOWN: - 30% of image height + 70% H Screen Height = 1H Center= 0 - 30% H HORIZONTAL SHIFT LEFT: +30% of image width RIGHT: - 30% of image width... - Page 36 a S.p.a SIM Multimedi Viale Lino Zanussi, 11 33170 Pordenone - ITALY Phone +39.434.383.53-56 Fax +39.434.38360-61 www.sim.com e-mail: info@sim.it SIM USA Inc. 10108 USA Today Way 3305 Miramar FL - USA Phone +1.954.44999 Fax +1.954.44998 www.simusa.com e-mail: sales@simusa.com SIM Deutschland GmbH Frankfurt am Main, ArndStr. 34-36 D-6035 Tel.
