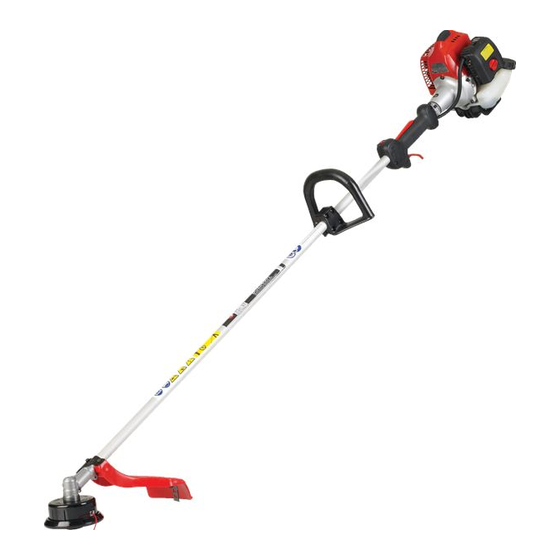

BCZ2460S
BCZ2460TS
115 35 57-10 (006)
OWNER'S/OPERATOR'S
MANUAL
BRUSHCUTTERS
WARNING
The engine exhaust from this
product contains chemicals
known to the State of California to
cause cancer, birth defects or
other reproductive harm.
WARNING
Before using our products,
please read this manual carefully
to understand the proper use of
your unit.
This spark ignition system complies with
the Canadian standard ICES-002.
BCZ2460S/TS
U
S
US-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCZ2460S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RedMax BCZ2460S

  • Page 1 BCZ2460S/TS 115 35 57-10 (006) OWNER'S/OPERATOR'S MANUAL BRUSHCUTTERS BCZ2460S BCZ2460TS WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. WARNING Before using our products, please read this manual carefully to understand the proper use of your unit.
  • Page 2: Table Of Contents

    BCZ2460S/TS SAFETY FIRST WARNING Instructions contained in warnings within this manual marked with a symbol 1. Read this brushcutter Owner/Operator concern critical points which must be Manual carefully. Be sure you taken into consideration to prevent understand how to operate this unit possible serious bodily injury, and for this properly before you use it.
  • Page 3: Parts Location

    Max. output ························································································· 1.15Hp (0.858kW)at 8000/min (rpm) Idle speed····················································································································3000 ± 200/min (rpm) Fuel ·················································································································· Mixture (Gasoline 50 : Oil 1) (when using RedMax genuine oil) Carburetor ··············································································································· Walbro Diaphragm type Spark plug ································································································································NGK CMR7H Fuel tank capacity···························································································································21.3 fl.oz (0.63 Transmission ········································································································ Centrifugal clutch, Rigid driveshaft Reduction ratio BCZ2460S············································································································································...
  • Page 4: Warning Labels On The Machine

    BCZ2460S/TS 3. Warning labels on the machine ( 1 ) ( 2 ) ( 3 ) ( 4 ) ( 5 ) ( 6 ) (1) Read owner/operator manual before operating this machine. (2) Wear head, eye and ear protection.
  • Page 5: For Safe Operation

    BCZ2460S/TS 5. For safe operation b: Approved ear protection to reduce the WARNING risk of hearing loss. c: Approved (ANSI Z87.1.) eye protection • A brushcutter or trimmer can be and foot protection to reduce the risk of dangerous if used incorrectly or injury associated with thrown objects.
  • Page 6 ■ Before use RedMax servicing dealer for repair. 1. Each time before starting the engine, ■ Using the product inspect the entire unit to see if every part is in good order and is securely tightened in place.
  • Page 7 BCZ2460S/TS 5. For safe operation equipment, CLEAN UP! 2. To reduce sound levels, limit the number of pieces of equipment used at any one time. ■ Transport 3. Operate the product at the lowest possible 1. Drain the fuel from the fuel tank before throttle speed to do the job.
  • Page 8 4. When replacing the any other part, or any lubricant, always be sure to use only RedMax products or products which have been certified by RedMax for use with the RedMax product. 5. In the event that any part must be...
  • Page 9: Set Up

    BCZ2460S/TS 6. Set up ■ MOUNTING ENGINE (SE1) 1. Push the driveshaft housing toward the clutch housing and rotate it by hand to check that the driveshaft is engaged with the gears. 2. Insert the driveshaft housing into the clutch housing until it bottoms, and...
  • Page 10: Fuel

    • Failures caused by operating engines on gasoline with octane flame or sparks near fuel. Make sure to stop the engine and rating lower than 89 are not covered by the RedMax Two- allow it cool before refueling the unit. Select outdoor bare Stroke engine warranty.
  • Page 11 30 days, and 60 days when fuel stabilizer is 2. GASOHOL – It can cause deterioration of rubber and/or plastic added. RedMax Air-Cooled "Max Life" Synthetic blend parts and disruption of engine lubrication. Premium two-stroke engine oil "Contains fuel stabilizer" and 3.
  • Page 12: Operation

    BCZ2460S/TS 8. Operation ■ STARTING ENGINE NOTE WARNING 1. When restarting the engine immediately after stopping it, leave the The cutting head will start rotating choke open. upon the engine starts. 2. Overchoking can make the engine hard to start due to excess fuel. When the 1.
  • Page 13 BCZ2460S/TS 8. Operation ■ CUTTING WORK (LINE HEAD USAGE) WARNING 1. Always wear eye protection such as safety goggles. Never lean over the rotating cutting head. Rocks or other debris could be thrown into eyes and face and cause serious personal injury.
  • Page 14: Maintenance

    BCZ2460S/TS 9. Maintenance Maintenance, replacement, or repair of the emission control device and systems may be performed by any non-road engine repair establishment or individual. ■ MAINTENANCE CHART every every every system/compornent procedure before hours hours hours note after after after ✔...
  • Page 15 For a • Remove the side bolt in gear case replacement plug, use the correct type opposite of grease nipple before specified by RedMax. (MA4) installing new grease to arrange for old grease to exit. • REPLACEMENT PLUG IS A NGK .026 in...
  • Page 16: Storage

    BCZ2460S/TS 9. Maintenance 10. Storage that this in turn could cause the • Aged fuel is one of major causes of engine to catch on fire. Always engine starting failure. Before storing make sure that the muffler is clean the unit, empty the fuel tank and run...
  • Page 17: Optional Blade Usage

    Blade Kit : 966 42 40-01 Choose a suitable recommended cutting attachment according to the object to be cut. (OPT5) • When replacing blade always be sure to use products which have been certified by RedMax. OPT5 (1) Shoulder strap OPT2...
  • Page 18 • If you find any error to the blade, discard it and change new one WARNING which is certified by RedMax. • The product is equipped with a ■ By using the shoulder strap, hang the centrifugal clutch mechanism, so...
  • Page 19 BCZ2460S/TS 12. Optional blade usage ■ MAINTENANCE areas of dense growth. d. Keep the blade sharp. A dull blade BLADE increase the chance of blade thrust. • Check the blade and the fasteners for looseness, cracking, or e. Avoid feeding the blade too rapidly.
  • Page 20: Troubleshooting Guide

    BCZ2460S/TS 13. Troubleshooting guide Case 1. Starting failure CHECK PROBABLE CAUSES ACTION ➞ ➞ fuel tank incorrect fuel drain it and with correct fuel ➞ ➞ fuel filter fuel filter is clogged clean ➞ ➞ carburetor adjustment screw out of normal range adjust to normal range ➞...
  • Page 21 As the small off-road engine owner, you should however be aware that the RedMax may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
  • Page 22 Add-on or modified parts that are not exempted by CARB or EPA may not be used. The use of any non- exempted add-on or modified parts will be grounds for disallowing a warranty claim. RedMax will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
  • Page 23 WWW.redmax.com...
