Replacement of the connection cable

To replace the connection cable use only H05V2V2-F T90 or equivalent type. Make sure that
the cable section is applicable to the voltage and the working temperature. The yellow/
green earth wire must be approximately 2 cm longer than the brown (or black) phase wire.

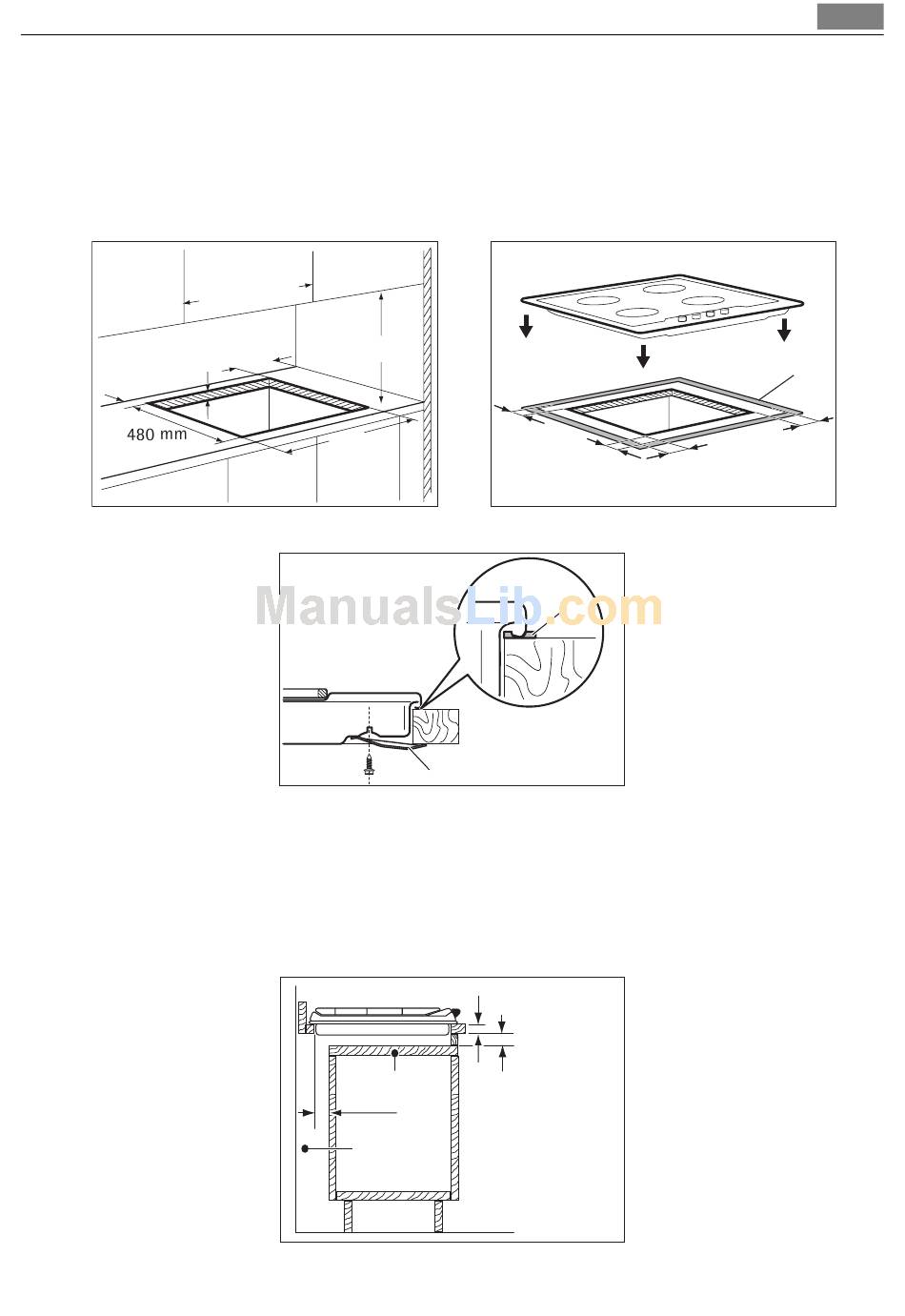

Building In
min. 450 mm
min. 55 mm
A - supplied seal
B - supplied brackets

Possibilities for insertion

Kitchen unit with door
The panel installed below the hob must be easy to remove and let an easy access in case a
technical assistance intervention is necessary.
a) Removable panel
min. 600 mm
min. 650 mm
30 mm
560 mm
60 mm
b
10 mm
A - supplied seal
B
30 mm
min 20 mm
a
(max 150 mm)
Installation
3 mm
11 mm
A
11
A
11 mm
