Summary of Contents for Kolibri Domino
-
Page 3: Table Of Contents
1.1 About the Kolibri Domino _______________________________________________________ 1 1.2 Important Safety Notes ________________________________________________________ 1 1.3 Box Contents __________________________________________________________________ 2 1.4 Specifications _________________________________________________________________ 2 1.5 Views of the Kolibri Domino ____________________________________________________ 3 1.6 Control Panel __________________________________________________________________ 4 1.7 Home Screen __________________________________________________________________ 5 2. GETTING STARTED 2.1 Powering Up ___________________________________________________________________ 6... -
Page 4: Introduction

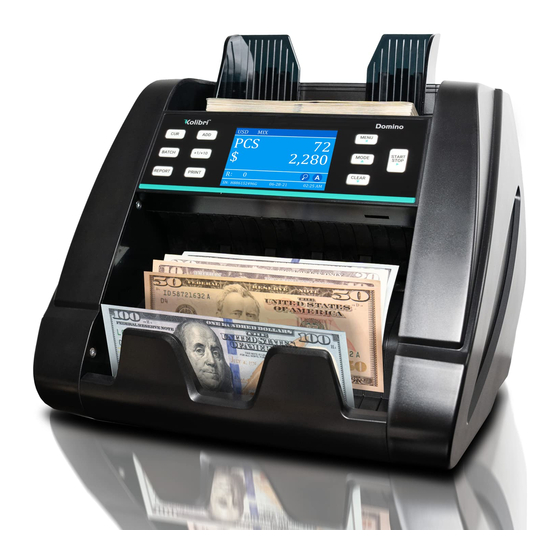

Thank you for choosing the Kolibri Domino one-pocket currency discriminator. The Kolibri Domino is a professional, powerful, value counter and sorter. Kolibri Domino has a convenient user-friendly interface, intuitive control panel, and a variety of counting modes. All of these features come with strong built-in counterfeit detection technology and high level performance. -
Page 5: Box Contents
Box Contents - Kolibri Domino Currency Discriminator - Adapter Cable (for Printer*) - Power Cord - User Manual - Cleaning Brush - Calibration Card (White Paper Card) *Printer sold separately 1.4 Specifications Counting speed: Adjustable 800, 1000 and 1200 bills/min... -
Page 6: Views Of The Kolibri Domino
Views of the Kolibri Domino Feed Gap Adjustment Knob Bill Guides Hopper Control Panel TFT Screen microSD Card Port Stacker Carrying Handle Back Door Back Door Handle RJ11 Port (Printing) USB Port Power Switch AC Power Fuse TOP VIEW FRONT VIEW... -
Page 7: Control Panel
Shows settings and works as a “back button” in Menu 9. MODE Button Changes mode and moves cursor up in Menu 10. CLEAR Button Resets the count and moves cursor down in Menu 11. START/STOP Button Starts or Stops the count (when not in auto-start func- tion) or validate/confirm settings Domino... -
Page 8: Home Screen
Home Screen Currency Selected Mode Selected ADD Function (Activated) Selected Batch Number (Activated) Number of Bills Counted Total Value Counted Auto/Manual Start Function Counterfeit Detection (ON) Time Date Serial Number of Last Bill Scanned Number of Rejected Bills... -
Page 9: Getting Started
GETTING STARTED Powering Up Ensure the hopper and stacker are empty. Then, attach the provided power cable to the power inlet on the back of the machine. Make sure to plug the power cable into a three-prong outlet and turn on the power switch located on the back of the machine . The unit will load and conduct a self-checking. - Page 10 TIPS: To Reduce Rejects 1. MAKE A STACK 2. LOAD THE STACK Correct or remove bills that are severly wrinkled, damaged or folded. Square the bill stack. 3. FEED THE BILLS...
-
Page 11: Operating Modes
REPORT button. To return to MIX mode from another mode, press the MODE button until ‘’MIX’’ is displayed on the home screen. Note that the Kolibri Domino will keep in memory the last mode used. -
Page 12: Vsort Mode
REPORT button. To return to VSort mode from another mode, press the MODE button until “VSORT” is displayed on the home screen. Note that Domino will keep in memory the last mode used. -
Page 13: Functions
4. Press MENU button 3 times to go back to the home screen. If MANUAL is selected, a “M” will be displayed on the home screen. If on Manual, Kolibri Domino will stop counting automatically and START/STOP button must be pressed to begin each count. To go back to Auto function repeat steps listed above and select AUTO function. -
Page 14: Add+Batch Function
The batch size can be adjusted by pressing the +1/+10 or the BATCH button. When the set batch amount is reached, the Kolibri Domino will automatically stop and a “BATCH COMPLETE” message will be display on the screen alongside the number of bills counted. -
Page 15: Print
Same is applied to get the report with serial numbers described in 5.2 Serial Report. To connect a printer, use adapter cable provided. Insert one end of the adapter into the RJ11 Port (refer to 1.5 Views of the Kolibri Domino). The other end should be connected to the printer’s cable. Domino... -
Page 16: Maintenance And Troubleshooting
(not included with the unit) to prevent dust from settling inside. All parts of the Kolibri Domino need daily care and cleaning. Pay close attention to the sensors, which are delicate components. If any dust or other foreign matter adheres to the sensors, it may cause various problems during operation of the machine. - Page 17 1. Hopper Sensor 2. Stacker Sensors 3. Upper Sensors Block 4. Lower Sensors Block...
- Page 19 If the resistence against the bill feels too strong, loosen the gap by turning the screw counterclockwise. IMPORTANT NOTE: The Kolibri Domino’s feed gap adjustment can be sensitive during adjustments. Do not overturn each adjustment or you may overshoot the optimum gap.
-
Page 20: Calibration Procedure
Calibration Procedure The contact image sensors (CIS), Ultraviolet (UV) and Infrared (IR) sensors of the unit are calibrated properly from the factory. With regular, basic use, the sensor’s sensitivity decreases which can lead to ID errors. To resolve this issue, the unit can be re-calibrated using the white calibration card that came with the unit. -
Page 21: Troubleshooting
12. The CIS calibration is done. Troubleshooting NOTE: The Domino, like all other discriminators on the market with intergrated detectors, cannot guarantee a counted bill to be genuine or counterfeit. There are several reasons a genuine bill may be recognized as counterfeit, or vice versa. - Page 22 Error message display: Error Message Cause Solution UV SUSPECT Suspect bill detected by ultraviolet Remove top bill from stacker. detection or UV detection issue This bill is not added to count. Press start to continue. MG SUSPECT Suspect bill detected by magnetic Remove top bill from stacker.
- Page 23 Machine does not turn on Ensure the power cord is connected properly. Check the fuse in the fuse compartment and replace it if necessary. Contact Kolibri’s technical service center if the issue persists. Machine fails to detect The sensors may have collected dust.
-
Page 24: Warranty
Remove foreign objects, if any. Push up the lower sensor block to it’s initial position. Secure the back door. Warranty The Kolibri Domino is warranted for a period of one year from the date of purchase. In most cases a unit malfunction can easily be corrected by performing a thorough cleaning. -
Page 25: Contact Information
• There is mechanical damage to the unit or the sealed portions of the unit have been opened or tampered with • There are foreign objects or liquid inside the unit The warranty does not cover shipping to Kolibri’s technical service center. Contact Information Technical Support contact information: http://kolibriusa.com/contact/... - Page 26 Kolibri™ ©2021 Printed in China. Specifications subject to change without notice. www.KolibriUSA.com FNDOMB062021...
