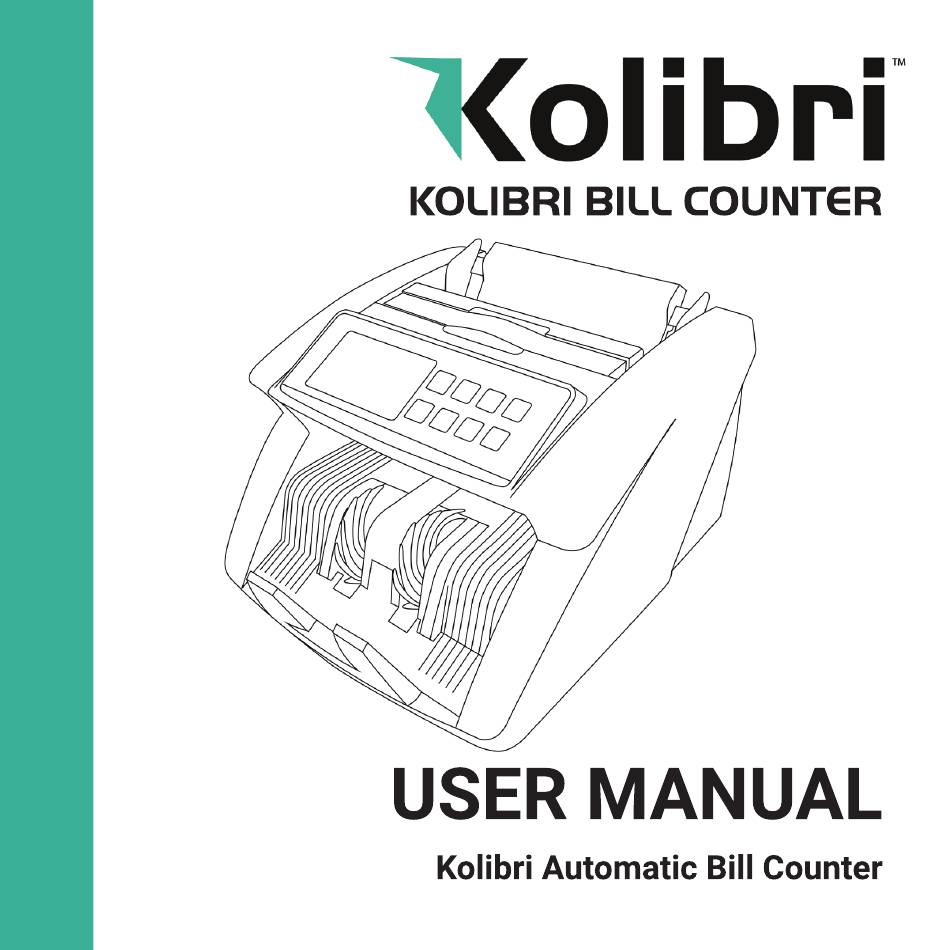

- Page 2 This manual contains important information on safety measures and operational features of the Kolibri Automatic Bill Counter. Please read it carefully before operating your machine and keep it for future reference. While every effort has been made to include all features into this user manual, specifications stated may not reflect all features of the latest software versions.
-
Page 3: Table Of Contents
1.1 About the Kolibri Automatic Bill Counter_________________________________________ 1 1.2 Important Safety Notes _________________________________________________________ 1 1.3 Box Contents __________________________________________________________________ 2 1.4 Product Specifications _________________________________________________________ 2 1.5 Views of the Kolibri Automatic Bill Counter ______________________________________ 3 1.6 Control Panel __________________________________________________________________ 4 1.7 Home Screen __________________________________________________________________ 5 2. GETTING STARTED 2.1 Powering Up ___________________________________________________________________ 6... -
Page 4: Introduction
It saves time and reduces counting errors by swiftly and precisely counting stacks of bills at the speed of 1500 bills per minute. The Kolibri Automatic Bill Counter also comes with many built-in features and reliable counterfeit detection while maintaining high level performance. -
Page 5: Box Contents
Box Contents - Kolibri Automatic Bill Counter - External Display - Power Cord - User Manual - Accessories Product Specifications Counting speed: 1500 bills per minute Hopper capacity: 200 bills Stacker capacity: 200 bills Weight: 10.6 lbs (4.8 kg) Dimensions: 11.4’’ x 9.8’’ x 6.9’’ (290mm x 250mm x 175mm) -
Page 6: Views Of The Kolibri Automatic Bill Counter
Views of the Kolibri Automatic Bill Counter Hopper Bill Guides Carrying Handle Control Panel Screen Stacker Feed Gap Adjuster Power Switch RS-232M Port Fuse AC Power FRONT VIEW BACK VIEW... -
Page 8: Home Screen
Home Screen USD - Currency BATCH Function (Activated) ADD Function (Activated) Number of Bills Counted Total Number of Bills Counted Selected Batch Amount (Activated) UV Detection (Activated) MG Detection (Activated) -
Page 9: Getting Started
Bill Loading In order to avoid jams, it is important to correctly load the hopper. Kolibri recommends not to use more than 200 bills at a time. Follow the 3-step loading technique below to ensure smooth bill feeding. - Page 10 PLACE IT FLIP IT STEP 2: Place the bill stack on the carrying handle, with the bottom of the stack touching the bill guide plate. As it is shown in the illustration. STEP 3: Flip the bill stack towards the rear of the machine so the stack is now leaning against the bill guide plate The bills will load automatically...
-
Page 11: Carrying The Unit
Carrying the Unit 1. Grasp the handle. 2. Pull the handle up. OPERATING MODES & FUNCTIONS Auto & Manual Mode After turning the machine on for the first time it will default to AUTO mode. In this mode the machine starts counting automatically. To operate in MANUAL mode, press the “A/M”... -
Page 12: Count Mode
Count Mode After turning the machine on it will default to count mode. To count bills, place them in the hopper and follow the procedure described in 2.2 Bill Loading. The machine will start counting automatically (if in AUTO mode) and move the bills from the hopper to the stacker as it counts them. -
Page 13: Add + Batch Mode
DETECTION FEATURES UV Counterfeit Detection The Kolibri Automatic Bill Counter can identify bills suspected of being counterfeit using an ultraviolet light detection system. This function is available in all modes by pressing the “UV” button until the “UV” indicator is displayed on the screen. -
Page 14: Mg Counterfeit Detection
IR Detection The Kolibri Automatic Bill Counter can identify bills by their size and thickness utilizing infrared detection. By default, this function is always on in all modes in order to identify half note, double note, or chain note errors. -
Page 15: Double Note Detection
Bills may stick to each other due to excessive dirt, folding or various other reasons. The Kolibri Automatic Bill Counter uses infrared light sensors to determine whether two bills are stuck together. This feature is active automatically in all modes. If a double bill is encountered the unit will stop, beep and display the error code “dbL”... -
Page 16: Maintenance, Troubleshooting And Service
Taking regular care of the Kolibri Automatic Bill Counter will significantly increase its lifetime. All parts of the Kolibri Automatic Bill Counter need daily care and cleaning. Pay closed attention to the sensors, which are delicate components. If only dust or other foreign matter adheres to the sensors, it may cause various problems during operation of the machine. - Page 17 2 inches 1. Place fingers under control panel and thumbs on the side panels. 2. Lift control panel about 2 inches. 3. Secure sensor housing and control panel back to the initial position.
-
Page 19: Feed Gap Adjustment
Feed Gap Adjustment Sometimes, during the transportation or shipment of the unit, the adjustments of the feed mechanism may loosen. This can also happen during normal wear and tear, and can lead to DOUBLE/CHAIN errors. The feed gap is the actual height of the bill feed path and should be turned to just about the thickness of a single bill. - Page 20 Fixing Plate & Screw tightening (clockwise) the fixing plate screw. IMPORTANT NOTE: The Kolibri Automatic Bill Counter’s feed gap adjustment can be sensitive during adjustments. DO NOT overturn each adjustment or you may overshoot the optimum gap. We recommend testing with...
-
Page 21: Sensitivity Settings
Sensitivity Settings In order to enter the sensitivity settings menu, press and hold the “SET” button for 3 seconds, or until “-C00” code displays in the bottom right corner of the screen. Press the “BAT” button to cycle through the different codes (refer to the Sensitivity Codes Table). When on the desired code you can use the “MG+”... -
Page 22: Troubleshooting
Troubleshooting In order to enter the sensitivity settings menu, press and hold the “SET” button for 3 seconds, or until “-C00” code displays in the bottom right corner of the screen. Press the “BAT” button to cycle through the different codes (refer to the Sensitivity Codes Table). When on the desired code you can use the “MG+”... - Page 23 Error Message Display (continued): ERROR MESSAGE CAUSE SOLUTION The last counted bill is a Ensure top bills in stacker are not stuck double note or has double together. Remove all bills from stacker. detection issue. Bills are not added to the total count. Recount.
- Page 24 Machine does not turn on. Ensure the power cord is connected properly. Check the fuse in the fuse compartment and replace it if necessary. Contact Kolibri’s technical service center if the issue persists. 1. Bills were incorrectly inserted into the hopper.
-
Page 25: Warranty
Warranty The Kolibri Automatic Bill Counter is warranted for a period of one year from the date of purchase. In most cases a unit malfunction can easily be corrected by performing a thorough cleaning. • Customer should allow the manufacturer the time and opportunity to test and diagnose the machine to determine warranty and non-warranty claims. -
Page 26: Contact Information
Contact Information Technical Support contact information: http://kolibriusa.com/contact/ When contacting Technical Support, please have the following available: • Product Model - Located on the back of the machine. • Serial Number - Located on the bottom of the machine. • Nature of the problem - What happened, and when did it happen? Did the machine display an error message? •... - Page 28 Kolibri™ ©2020 Printed in China. Specifications subject to change without notice. www.KolibriUSA.com KKR12032020...
