Summary of Contents for Kolibri Rook
- Page 1 USER MANUAL...
- Page 2 This manual contains important information on safety measures and operational features. Please read it carefully before operating your currency counter and keep it for future reference. If you have questions about your Kolibri Rook and its operation, please contact technical support at www.kolibriusa.com.
-
Page 3: Table Of Contents
Table of contents: 1. INTRODUCTION ABOUT THE KOLIBRI ROOK _____________________________________________ 1 BOX CONTENTS _______________________________________________________ 1 VIEWS OF THE KOLIBRI ROOK __________________________________________ 2 CONTROL PANEL _____________________________________________________ 4 SPECIFICATIONS ______________________________________________________ 5 IMPORTANT SAFETY NOTES ____________________________________________ 5 2. GETTING STARTED POWERING UP _______________________________________________________ 6... -
Page 4: Introduction

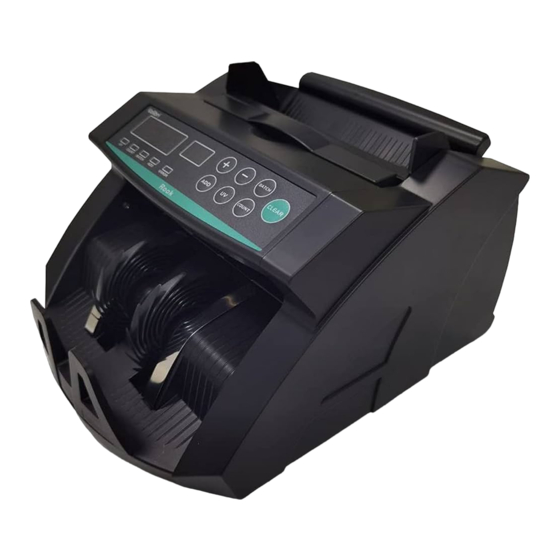

It will save you time and reduce counting errors by swiftly and precisely counting stacks of bills at speeds up to 1,400 bills per minute. The Kolibri Rook will allow you to batch your desired amount of bills into separate stacks. All of these features come with a built-in counterfeit detection system that uses ultraviolet and magnetic ink detection which will alert the user of any suspicious bills. -
Page 5: Views Of The Kolibri Rook
VIEWS OF THE KOLIBRI ROOK Œ . Bill Guides . Hopper Sensor Ž . Hopper . Control Panel . Stacker ‘ . Stacker Sensor Rook Currency Counter... - Page 6 Œ . Carrying Handle . Feed Gap Adjuster Ž . Power Switch . RJ11 Port . AC Power ‘ . Fuse...
-
Page 7: Control Panel
Function Primary Display Shows total count Secondary Display Shows stacker count Control Buttons Controls settings including batch and detection modes Start Button Starts the count (when not in auto-start mode) Indicators Indicates modes and counterfeit detection settings Rook Currency Counter... -
Page 8: Specifications
SPECIFICATIONS Counting speed: 1400 bills/min Hopper capacity: 300 new or 200 circulated Stacker capacity: 300 new or 200 circulated Weight: 12 lb (5.4 kg) Dimensions: 9.7”w x 11.5”d x 7”h (246 x 292 x 177mm) Power source: 110V 60Hz <70W IMPORTANT SAFETY NOTES When using this product, basic safety precautions should always be followed, including the following:... -
Page 9: Getting Started
Loading the hopper correctly is important in order to avoid jams and speed up the operation of the unit. Follow the steps as shown below to properly load bills into the hopper. CARRYING THE UNIT 1. Grasp handle 2. Pull handle up Rook Currency Counter... -
Page 10: Operating Modes
OPERATING MODES COUNT MODE After turning the machine on it will default to Count mode. To return to Count mode from another mode, press the ADD and BATCH buttons until both ADD and BATCH indicators are turned off. To count bills, place them in the hopper and follow the procedure described in 2.2 Loading the Hopper. -
Page 11: Add Mode
DETECTION FEATURES UV COUNTERFEIT DETECTION The Kolibri Rook is able to identify counterfeit bills using ultraviolet light. This function is available in all modes by pressing the UV button until the UV indicator is illuminated. When a suspect bill is detected the unit will beep three times and display the letter “A.”... -
Page 12: Mg Counterfeit Detection
Warranty HALF NOTE DETECTION The Kolibri Rook incorporates infrared light sensors that notify users if a half note passes through the counting mechanism. This feature is activated automatically in all modes. If the unit detects a half note, it will beep three times and display “HLF” on... -
Page 13: Chain Note Detection
Warranty CHAIN NOTE DETECTION The Kolibri Rook utilizes a self-checking system that alerts the user in rare cases when several notes pass through the counting mechanism at once. This feature is activated in all modes. -
Page 14: Troubleshooting
TROUBLESHOOTING Error message display: Error code Cause Solution Suspect bill detected. Remove the last bill from the stacker and press the START button to continue counting. The suspect bill will not be added to the count. Refer to section 4.1 for more details. Suspect bill detected. -
Page 15: Warranty
WARRANTY The Kolibri Rook is warranted for a period of one year from the date of purchase. In most cases a unit malfunction can easily be corrected by performing a thorough cleaning. This requires disassembly of the unit to clean each individual sensor. This cleaning is not covered by warranty and should be performed only by a qualified technician.
