Installation Instructions
V1.0

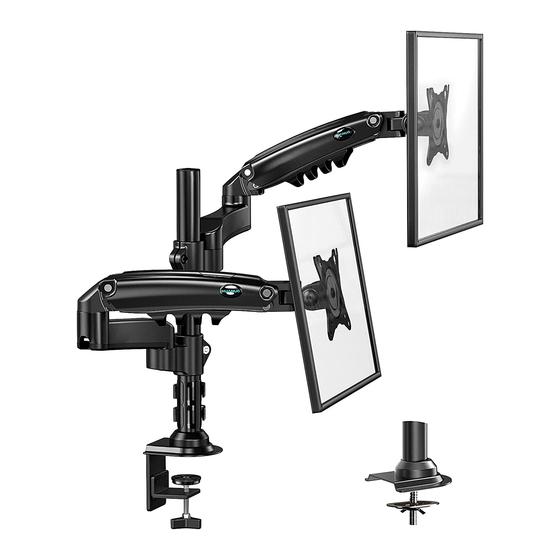

HNDS8
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? Should you have any issues, please don't
hesitate to contact us.
Telephone：1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Email：support@huanuoav.com (US/CA/DE/UK/FR/IT/ES/AU)
Advertisement
Table of Contents
Related Manuals for HUANUO HNDS8
Summary of Contents for HUANUO HNDS8
- Page 1 Installation Instructions V1.0 HNDS8 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Do not install or assemble if the product or hardware is damaged or missing, if you require replacement parts, please contact customer service at support@huanuoav.com. For safe installation, the desk you are mounting to must support minimum 3 times the weight of the total load (the mount, the monitor and all accessories weight). - Page 3 Product Features C-Clamp Mounting Grommet Mounting...
-
Page 4: Install The Base
Parts and Hardware Included Arm X2 C-Clamp X1 Pole Assembly X1 Cable Clip Cover X2 Screw Screw Screw Cable Clip X1 M6x12mm (3pcs) M4x12mm (8pcs) M5x12mm (8pcs) Screw M4x6mm (4pcs) Butterfly Nut Grommet Bolt Locking Plate Wrench 1. Install the Base A. - Page 5 Secure the base to the desktop B. For Grommet Mounting 1 Install the grommet bolt Warning: Ensure screws are secured firmly.
- Page 6 Secure the base to desktop using locking plate and butterfly nut Warning: Ensure screws are secured firmly. 2. Install the Arms Slide arm [01] to the pole assembly [03] and secure using wrench [F] Slide the cable clip [05] to the pole assembly [03] Ensure screws are secured firmly.
- Page 7 3. Attach Monitors to the Arms 3-1 Choose Proper Screws 3-2 Install Monitors to the Arms 3-5mm(0.1-0.2in.) spacing left 75 mm ≈ 2 7/8 in. 100 mm ≈ 4 in. The tension is preset at 4-5kg. After hanging the monitor to the mount, please release the monitor slowly to prevent it from falling suddenly...
- Page 8 (1 rotation ≈ 1 lb) 5. Rotation Restriction Proper usage directions Non-proper usage directions...
-
Page 9: Tilt Adjustment
6. Tilt Adjustment “+” Clockwise: Tighten “-” Counter-clockwise: Loosen Situation 1: If the monitor can stay at the desired tilt angle by itself, no adjustment needed. Situation 2: If the monitor can not stay at the desired tilt angle by itself, turn the screws clockwise or counter-clockwise as shown until the monitor can stay at the desired tilt angle by itself. - Page 10 8. Route Cables along the Arms...
- Page 11 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Do not adjust tension without monitor. 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is between 4.4~19.8 Ibs (2-9 kg).
