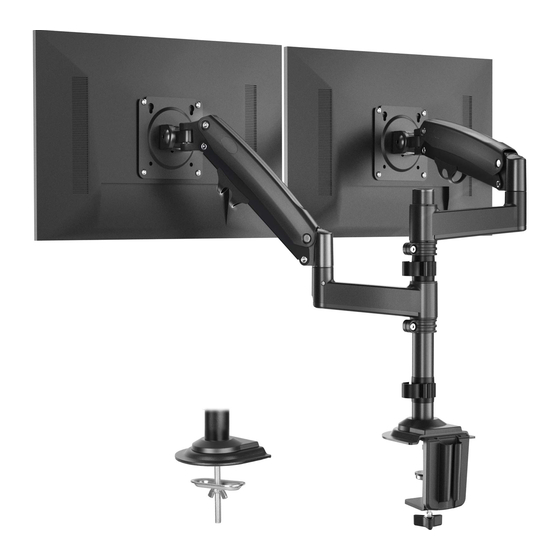

Monitor desk mount

Advertisement

Quick Links

Monitor Desk Mount
Instruction Manual
Website:
www.huanuoav.com
Model: HNDS11
Thank you for choosing this HUANUO product! At HUANUO we
strive to provide you with the best quality products and services
in the industry. Please share your experience of our product with
others on www.huanuoav.com/reviews if you are satisfied.
Should you have any issues, please don't hesitate to contact us.
Technical Support:
1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
support@huanuoav.com (US/CA)
V3.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the HNDS11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HUANUO HNDS11

  • Page 1 Instruction Manual V3.0 Model: HNDS11 Thank you for choosing this HUANUO product! At HUANUO we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others on www.huanuoav.com/reviews if you are satisfied.
  • Page 2: Weight Restrictions

    IMPORTANT SAFETY INFORMATION Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at 1-800-556-0533 or customer service at support@huanuoav.com. CAUTION: Avoid potential personal injuries and property damage! •...
  • Page 3: Product Features

    Product Features 180° 360° 360° C-Clamp Mounting 1.0-3.2 in.(25-80mm) Grommet Mounting 0.8-3.5 in.(20-90mm)
  • Page 4 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Do not adjust tension without monitor 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is between 4.4~26.5 Ibs (2-12 kg) per arm.
  • Page 5 Tools Needed (Not lncluded) Drill Bit Electric Drill (Optional) Phillips Screwdriver (Optional) 0.4 in.(10mm) - 2 in.(50mm) Supplied Parts and Hardware Warning : This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts.
  • Page 6 Supplied Parts and Hardware for Step 2 Arm X2 Extension Arm x2 Locating Ring X2 (F) x1 (F) x1 1/8 in.(3mm) 5/32 in.(4mm) Plastic Sleeve X2 Small Allen Key Medium Allen Key Supplied Parts and Hardware for Step 3 Bolt (A) Bolt (B-1) Spacer (B-2) M4x12mm (X8)
  • Page 7 1. Install the Base A. For Clamp Mounting A-1 For Clamp Mounting Slide the cable clips [06] to pole assembly [05] and secure part [a] to Detach the c-clamp entirely pole assembly [05] Warning: Ensure bolts are secured firmly. F 5/32 in.(4mm) Medium Allen Key 5/32 in.(4mm) Medium Allen Key...
  • Page 8 Secure the pole assembly to the desktop 1.0-3.1 in. (25-80mm) F 5/32 in.(4mm) Medium Allen Key B. For Grommet Mounting Install the grommet bolt [D] to the bottom of pole assembly [05] Warning: Ensure bolt is secured firmly.
  • Page 9 Secure the pole assembly to the desktop with grommet Warning: Ensure bolts are secured firmly. If there is no grommet hole on your desk, position the pole assembly [05] on the mounting surface and mark the hole. Drill a hole using the drill bit in a diameter of 0.4 in.(10mm) - 2 in.(50mm) at the marked position through the mounting surface.
  • Page 10 ③ ④ Secure the arms [01] to the extension Attach the arms [01] to the extension arms [02] by tightening the preassembled arms [02] set screw [S] using Allen key [F] 1/8 in. (3mm) Warning: Ensure bolts are secured firmly. Small Allen Key Step 3 Attach Monitors to the Arms 3-1 Choose Proper bolts...
  • Page 11 4. Adjust Gas Spring Tension Be sure to keep the arm in horizontal position during adjustment. Or else, it would be difficult to adjust the mount or damage the mount. 1. If the monitor can stay at the desired height by itself, no adjustment needed. 2.
  • Page 12: Tilt Adjustment

    5. Rotation Restriction Proper usage directions Non-proper usage directions 6. Tilt Adjustment 13/64 in.(5mm)Small Allen Key “+” Clockwise: Tighten “-” Counter-clockwise: Loosen Situation 1: If the monitor can stay at the desired tilt angle by itself, no adjustment needed. Situation 2: If the monitor can not stay at the desired tilt angle by itself, turn the bolt clockwise or counter-clockwise as shown until the monitor can stay at the desired tilt angle by itself.
  • Page 13: Rotation Adjustment

    7. Rotation Adjustment Rotation Only suitable for the monitors with the center of gravity in the center position 8. Route Cables along the Arms...
  • Page 15 Thank you again choosing this HUANUO product! All of us at HUANUO do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
  • Page 16 HUANUO offers products in these categories Monitor Stands Laptop Tables Lap Desks Desktop Converters Desk Mounts TV Trays Printer Stands Stand Risers Please remember us when you need one.
