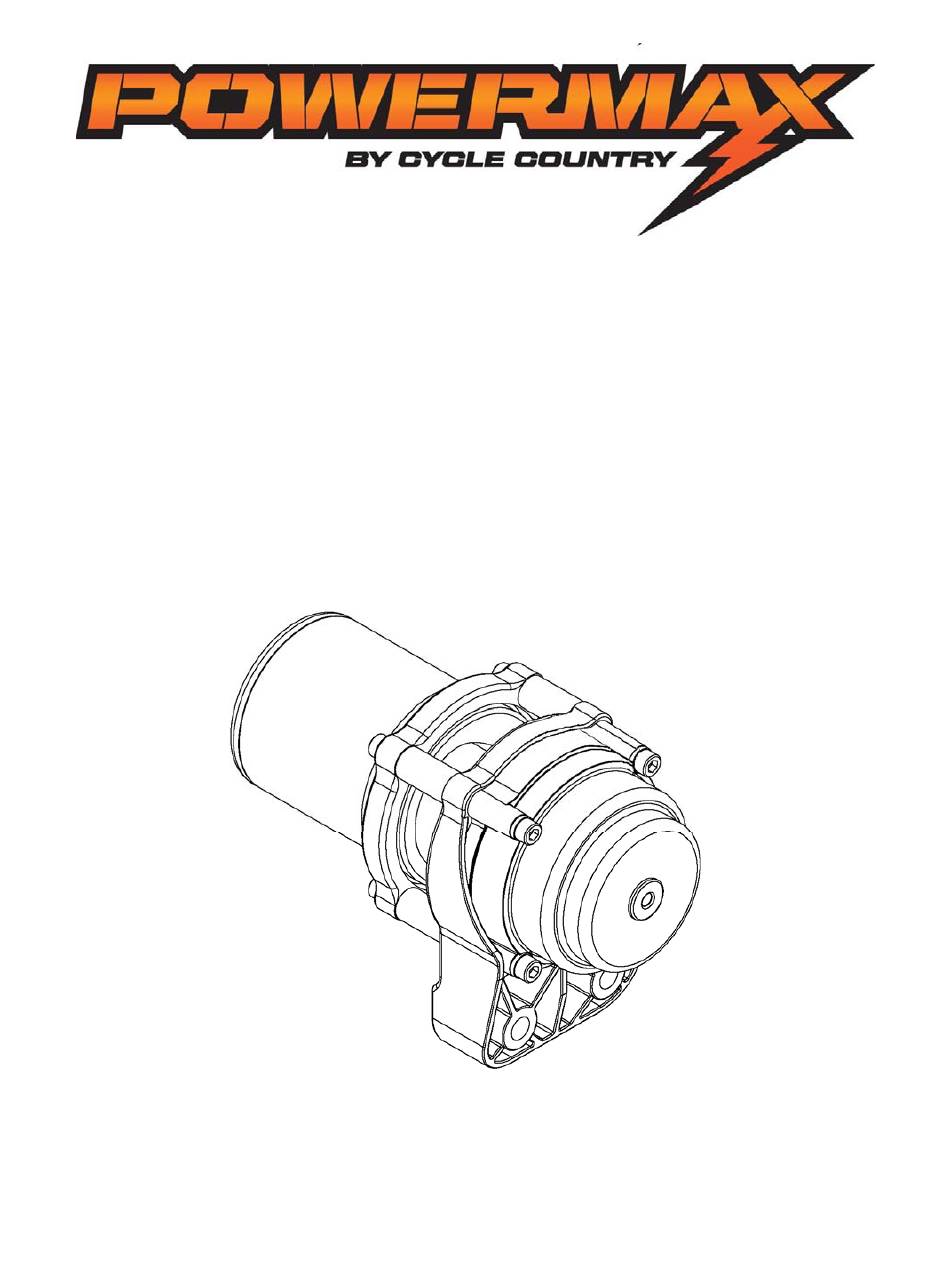

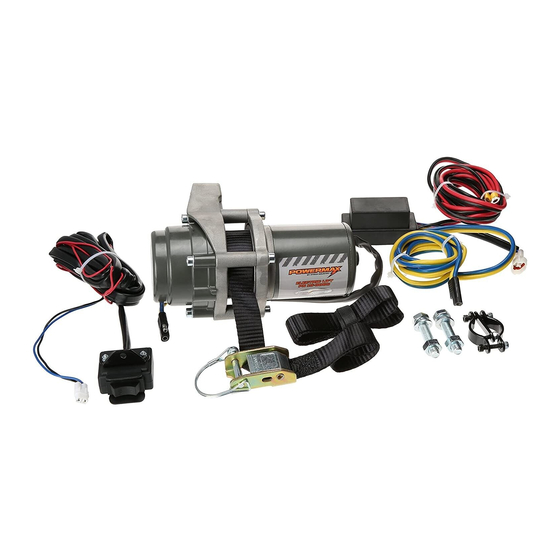

Electric Lift Kit
MODEL NUMBER: 15-0060
OWNER'S MANUAL
CUSTOMER MUST RECEIVE A COPY OF THIS
OWNERS MANUAL AT TIME OF SALE
© 2011 Cycle Country Accessories Corp.
6/1/11 Rev. 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERMAX 15-0060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cycle Country POWERMAX 15-0060

Summary of Contents for Cycle Country POWERMAX 15-0060

  • Page 1 Electric Lift Kit MODEL NUMBER: 15-0060 OWNER’S MANUAL CUSTOMER MUST RECEIVE A COPY OF THIS OWNERS MANUAL AT TIME OF SALE © 2011 Cycle Country Accessories Corp. 6/1/11 Rev. 01...

  • Page 2: General Safety Precautions

    The Cycle Country PowerMax Electric Lift can be installed on most Cycle Country plow systems and use electric power from the vehicles battery to raise and lower the plow. A handlebar mounted switch allows the operator to easily operate the lift from the driver’s seat.

  • Page 3: Installation

    Installation: Step 1: Mount the lift motor  Mount the lift motor to the push tube as shown in figure 1.

  • Page 4: Handlebar Mount

    Step 2: Handlebar Switch Installation  Install the rocker switch to the handlebar using the hardware included in this kit. (see figure 2 and figure 6) Handlebar mount Rocker switch assembly  It is recommended that the switch be installed on the left handlebar. A piece of electrical tape wrapped around the handlebar will help prevent rotation of mount on the handlebar.

  • Page 5: Step 4: Wiring Installation

    Step 4: Wiring Installation  Connect the switch wires to the control box. Splice the red 20ga wire to a wire supplying +12 volts only when the vehicle ignition is turned on.  Attach the red power wire to the Positive (+) post on the battery. Attach the black power wire to the Negative (-) post on the battery...
  • Page 6 Step 5: Attaching the lift to the vehicle  Wrap the loop strap around the top rack, bumper or other location that is suitable to support the weight of the plow.  Connect the loop strap to the adjustable lift strap using the snap pin. ...

  • Page 7: Step 6: Operating The Lift

    Step 6: Operating the lift  Verify that the lift is operational by turning on the vehicle ignition and pressing the handlebar switch in either direction.  The lift motor can be operated in either direction to lift the plow. To reverse the direction, hold the switch down when letting out the strap allowing the strap to wrap back on the spool in the opposite direction.

  • Page 9: One Year Limited Warranty

    All transportation costs incurred submitting product to Cycle Country for warranty consideration must be borne by the purchaser. If Cycle Country determines that the product must be returned to the factory for credit, please call 1-800-841-2222 for a Return Merchandise Authorization (RMA) number and shipping instructions.
