- Page 1 WINCH KIT Installation Instructions KIT NUMBER: 25-3170 © 2005 CYCLE COUNTRY ACCESSORIES CORP. Rev. 1 3/7/06...

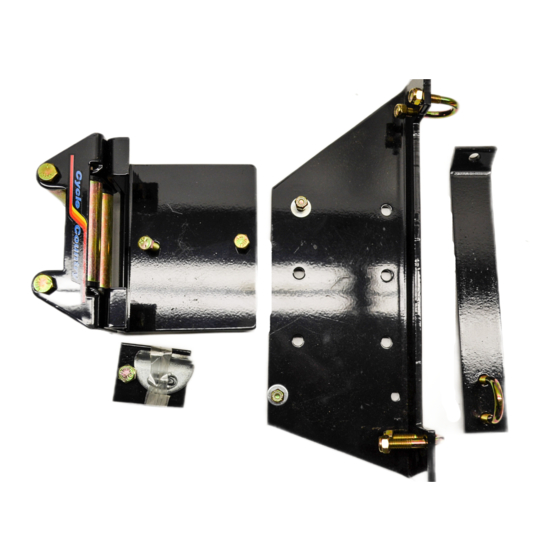

- Page 2 Please Note: The cable clamp, roller hawse, and cable stop are included with the winch. #25-3170 Parts List ITEM NO. QTY. PART NO. DESCRIPTION 1 CYC3957 Plate, Mount 1 CYC4330 Bar, Support 1 CYC5318 Roller Hawse Mount Plate 3 PUR1418 5/16"...
- Page 3 THIS WINCH MOUNTING KIT CAN BE USED TO MOUNT EITHER A CYCLE COUNTRY 1500/2000 OR A WARN 2000 TO YOUR ATV. Please Note: The Roller Hawse, Cable Clamp, Cable Stop, and Hardware are included with the winch. Some components of this kit may be already assembled. All directions referring to right and left are when the rider is sitting on the machine.
-
Page 4: Mounting Instructions
Tighten mounting hardware at this time. CYCLE COUNTRY 1500/2000 WINCH MOUNTING INSTRUCTIONS Using the 5/16” x 1” bolt and 5/16” x 1-1/4” bolt, mount the Winch and Roller Hawse Mount Plate to the Winch Mount Plate. Be sure that when the Winch is mounted to the ATV the Winch Motor is on the LEFT side of the machine. - Page 5 FAILURE TO RELEASE THE SWITCH MAY CAUSE DAMAGE TO WINCH PARTS OR TO THE ATV. When using the Winch to raise and lower a Cycle Country Plow, a Cable Stop must be installed. Hook the Winch Cable to the CYC0345 (U608) (item #4 on your 15-0001 push tube kit) through the slotted hole.
-
Page 6: One-Year Limited Warranty
E-MAIL: ccac@cyclecountry.com ONE YEAR LIMITED WARRANTY For the period of one year from the purchase date Cycle Country Accessories Corporation will replace for the original purchaser, free of charge, any part or parts, when found, upon examination by Cycle Country Accessories Corporation, to be defective in material, workmanship, or both. - Page 7 If a winch is what you must have, then you’ve come to the right place: 1500lb, 2500lb and 3000lb Winches We also have an extensive line of winch mounts for both Cycle Country and Warn winches If you need to haul more gear on your quad, check out our baskets:...
