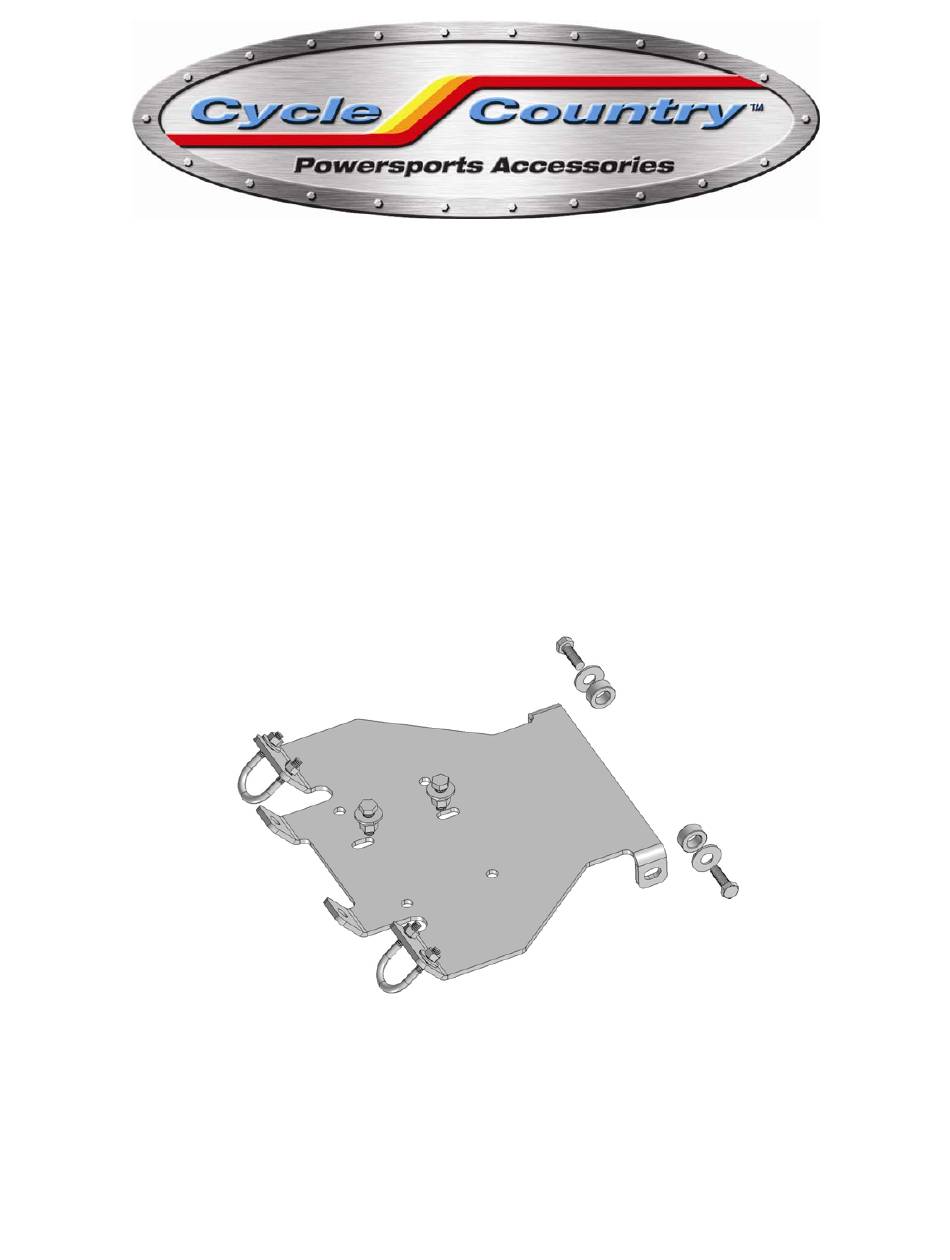

- Page 1 ATV WINCH MOUNT KIT For HONDA Foreman 500 / Rubicon 500 ASSEMBLY / OWNER’S MANUAL Part No: 25-1200 MAN0400 Rev. 00 © 2011 Cycle Country Accessories Corporation...
- Page 2 Read this manual and your ATV operators manual before use. SAFETY INFORMATION Cycle Country accessories were designed with your safety in mind. In order to protect you and your vehicle, certain parts of the accessory and/or hardware may be designed to fail when the equipment is over-stressed.
- Page 3 PARTS INFORMATION: Components #2, #3 and #4, exist for mounting a winch roller fairlead or a 2-bolt style winch. Replacement fasteners are common-type and can be purchased locally. Use minimum Grade 5 zinc-coated fasteners. © 2011 Cycle Country Accessories Corporation...
- Page 4 INSTALLATION NOTES: NOTICE If your ATV has a previously installed winch system, it must be removed to install the 25-1200 Winch Mount INSTALLATION OF WINCH MOUNT: 1. Remove the bumper cover and lower rock guard from Bumper Cover the ATV.
- Page 5 Place washers, Item #2 over the mount holes and fasten with metric bolts, Item #7. Do not tighten fasteners at this time. See Illustration 4. NOTICE Do not re-use factory bumper fasteners at this location ILL. 4 © 2011 Cycle Country Accessories Corporation...
- Page 6 #4, to secure the fairlead to the winch mount. Tighten supplied with winch kit to specification. FASTENER TORQUE: 17ft. lbs. (23 Nm) ILL. 6 Reinstall the bumper cover and rock guard. Tighten Bumper Cover Honda fasteners sufficiently. Foreman/Rubicon Frame Rock Guard ILL. 7 © 2011 Cycle Country Accessories Corporation...
- Page 7 All transportation costs incurred submitting product to Cycle Country for warranty consideration must be borne by the purchaser. If Cycle Country determines that the product must be returned to the factory for credit, please call 1-800-841-2222 for a Return Merchandise Authorization (RMA) number and shipping instructions.
