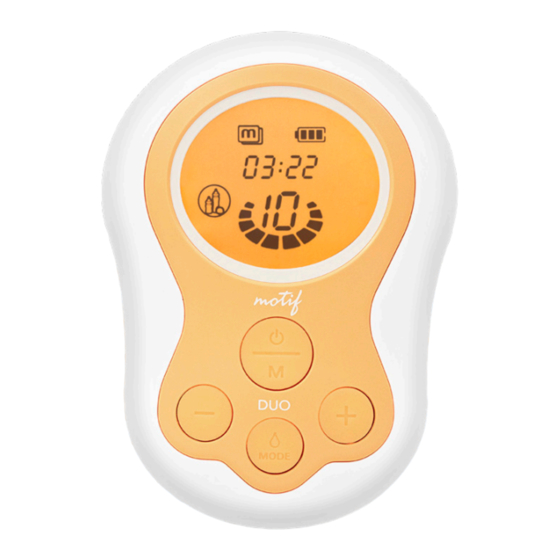

Motif Medical Duo Operational Manual
  1. Manuals
  2. Brands
  3. Motif Medical Manuals
  4. Breast Pump
  5. Duo
  6. Operational manual

Motif Medical Duo Operational Manual

Hide thumbs Also See for Duo:

Advertisement

Quick Links

Download this manual
Motif Duo
®
Operational
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Duo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Motif Medical Duo

Summary of Contents for Motif Medical Duo

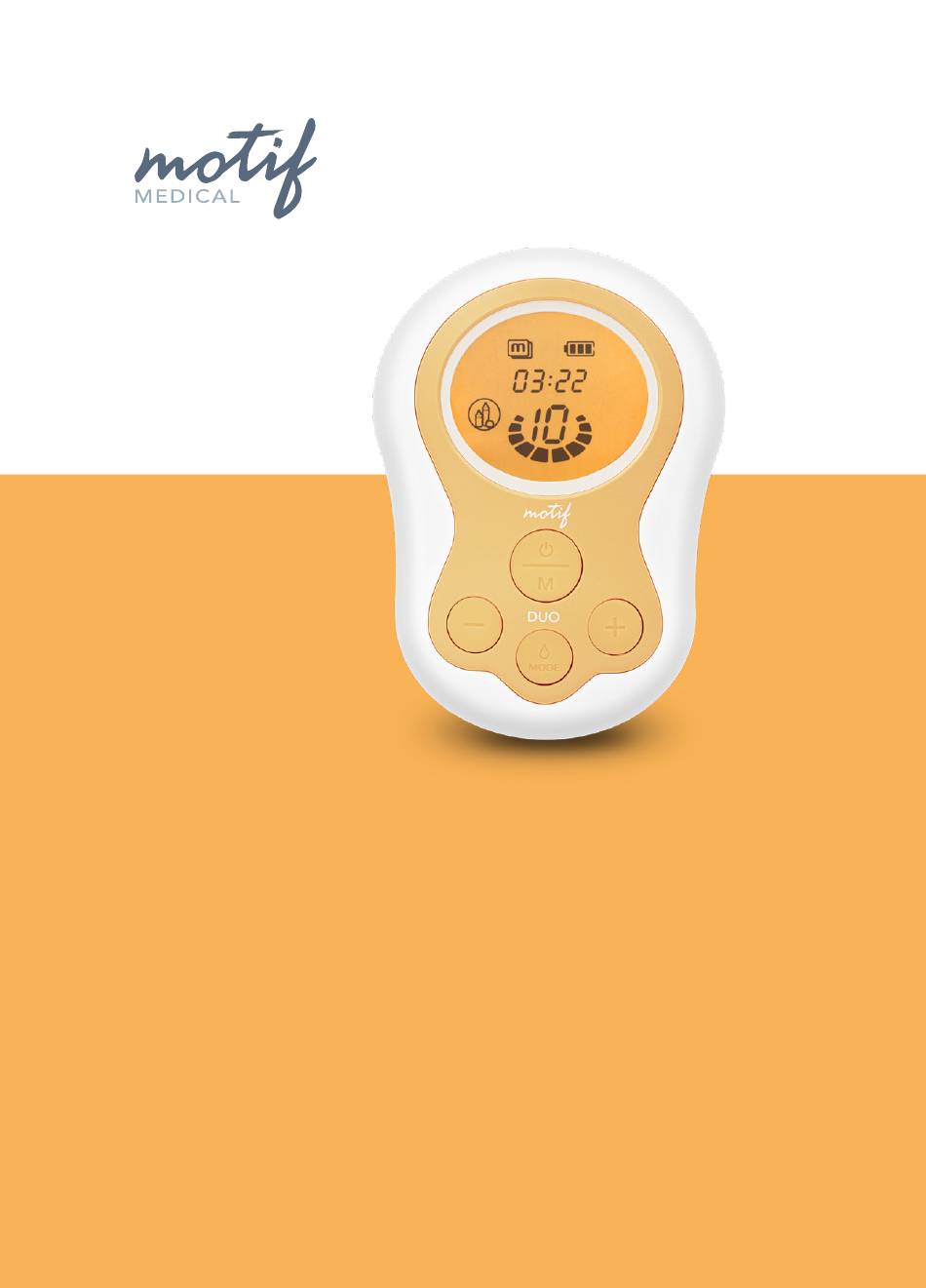

  • Page 1 Motif Duo ® Operational Manual...
  • Page 2 1. Introduction Meet The Duo Less than one pound, the quiet Duo fits in one hand and discreetly slips into any bag. Whether you’re traveling, working, or just multitasking, the Duo is convenient, rechargeable, and lasts 2.5 hours between charges. Recommended as an everyday work or weekend travel pump.
  • Page 4 Symbols Safety Prohibitions, Warnings, and Cautions Parts What’s Included Buttons and Features Settings and Modes Sterilization and Cleaning Operating Your Breast Pump Breast Shield Sizing Assembling The Duo Pump How to Use The Dual Pump Turning On/Off The Duo Pump...
  • Page 5 Using Your Motif Duo Pump Pumping Guide Getting Ready to Pump Aligning the Breast Shield Expressing Your Milk After Pumping Storing Breast Milk Advanced Features 10. Troubleshooting 10.1 Troubleshooting 10.2 Disposal 10.3 When to Replace Parts Warranty...
  • Page 7 Advanced Features Ability to record and recall customized pumping sessions with Memory Mode & ability to control cycles per minute during Expression Mode. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 8 3. Intended Use (Indications of Use) The Motif Duo® Double Electric Breast Pump is intended for use by lactating women to express and collect breast milk. The Duo can be used as a single or double pump and is only intended for personal use.
  • Page 9 Type BF applied part This product should not be mixed with other commercial waste for disposal Power Switches between massage mode and expression mode Increases vacuum intensity Decreases vacuum intensity MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 10 5. Safety 5.1 Prohibitions, Warnings, and Cautions Prohibition: To prevent voiding of warranty • Do not modify this equipment without authorization of the manufacturer. • Do not disassemble or modify the product. The device has no user- serviceable parts. Warning: To reduce the risk of electrocution •...
  • Page 11 If damage is found, immediately discontinue use of power adapter or battery pack and call Motif Medical® Customer Service. • The Motif Medical® Duo should not be positioned so that it is difficult to operate the adaptor. Warning: To avoid health risk and reduce the risk of injury •...
  • Page 12 5. SAFETY Caution: To avoid minor injury • Do not wrap cord around adapter body. • Use only the power adapter that comes with the powered breast pump. • Pump only with the breast pump in an upright position. • Do not shorten tubing.
  • Page 13 21mm, 24mm & 27mm Breast Shields (3 pairs) Breast Shield Connector (2) Valve (2) 180 ml Bottle (2) Bottle Cap (2) Nipple (2) Bottle Cover (2) Bottle Disk (2) Power Adapter MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 14 6. PARTS Additional accessories and parts available for the Duo breast pump: • Full resupply kit with replacement parts • Individual parts Find replacement parts and additional supplies for the Duo at: motifmedical.com/replacement-supplies/...
  • Page 15 Memory Battery (Indicates a (Indicates program is remaining stored) battery power) Timer Expression Massage (Displays while (Displays while in Expression in Massage Mode) Mode) Vacuum (Intensity displayed numerically and visually) MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 16 6. PARTS Button Control Power Button Increase Decrease Button Button (Increases (Decreases Vacuum Vacuum Intensity) Intensity) MODE Mode Button (Use to switch between Massage Mode/ Expression Mode)
  • Page 17 Single Pumping Basic Tubing Port Tubing port for single pumping Double Pumping Auxiliary Tubing Port Tubing port for double pumping Port Cover Power Adapter Power Adapter Port Port Cover Stabilizer MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 18 6. PARTS The Motif Duo® software includes three major features: 1. Two Pumping Modes 2. Frequency Function 3. Programmable Memory Each button has three functions: 1. Pressing the button will perform a base function. 2. Pressing with a short hold will engage the secondary function.
  • Page 19 Switches between the Massage and Expression Modes. This will delete a saved memory sequence. The Memory icon will turn off once the sequence has been deleted. After a sequence is deleted, your Duo will return to your previous pump settings.
  • Page 20 0% - 25% Charge Charge the battery as soon as the [Lo bt] symbol begins flashing. If the battery dies, your Motif Duo® will automatically shut down. Indicates operating time since device has been powered on. After 30 minutes, the main body will Timer turn off automatically.
  • Page 21 You can save your preferred settings for the Massage and Expression Modes, as well as the length of your most productive pumping times. To learn how to set your Memory Modes, see Section 9.7 Advanced Features. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 22 6. PARTS Frequency Function This function is available during Expression Mode, and effects the number of times your pump pulls per minute. • There are 3 frequency levels (1-3), that you can select during Expression Modes by pressing and holding the INCREASE or DECREASE buttons for 1 second.
  • Page 23 Parts can also be sterilized in a steam sterilizer or microwave sterilization bag to sterilize breast pump parts quickly and efficiently. Be sure not to place tubing into the Sterilizer Bags in attempt to clean the tubing. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 24 7. STERILIZATION AND CLEANING Cleaning Instructions 1. Thoroughly wash your hands with warm soap and water. 2. Disassemble each breast pump part that came into contact with breast milk. This includes the valves, bottles, breast shields, and nipples. *Do not clean the tubing or diaphragms.
  • Page 25 *Never use water to wash the outside of your breast pump. 7. Store parts after they completely dry in a clean bag or container. *Do not store any damp parts. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 26 8. Operating Your Breast Pump 8.1 Breast Shield Sizing Understanding size Pumping should not hurt. This guide is a starting point to help determine your optimal breast shield size based on your nipple diameter. How To Find The Right Size Breast Shield For You Step 1 Using a ruler or measuring AREOLA...
  • Page 27 During pumping more of your areola is drawn into the breast shield tunnel with your nipple. You may experience your areola rubbing up against the side of the breast shield tunnel. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 28 8. OPERATING YOUR BREAST PUMP Should you try a new breast shield size? • Does your nipple rub sides of the tunnel, to the point of causing discomfort? • Do you see excessive areola being pulled into the tunnel? • Do you see any redness? •...
  • Page 29 Twist the diaphragm Connector assembly off of the breast shield connector. Remove the Valve breast shield from the breast shield connector. Following cleaning instructions on breast pump parts after each use. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 30 8. OPERATING YOUR BREAST PUMP 8.3 How to use The Dual Pump To use the Duo in Double-Pump mode remove the plug from the air flow port and connect the tube from the extra collection kit. When changing back to Single-Pump mode make sure to cover the air flow port with the plug.
  • Page 31 8.4 Turning On/Off The Duo Pump Press the POWER button. The device will power ON, indicated by the LCD screen lighting up. The Duo will begin in Massage Mode to help with faster letdown. Press the MODE button. This will change the pump to Expression Mode once your milk starts flowing.
  • Page 32 9. Using Your Motif Duo Pump 9.1 Pumping Guide Even when you are using the breast pump, it is recommended to breastfeed your baby whenever you can. • Gently massage your breasts or apply warm compresses from the breast toward the nipple before starting your pumping session.
  • Page 33 6. Hold the breast shield and connector onto your breast with your thumb and index finger. 7. Support your breast with the palm of your hand. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 34 9. USING YOUR MOTIF DUO PUMP 9.3 Aligning The Breast Shield Center the breast shield on your breast so that the nipple is drawn into the breast shield tunnel. It’s important that the breast shield is positioned properly before pumping begins to avoid any pain that may be caused by rubbing or twisting of your nipple onto the side of the breast shield.
  • Page 35 5. When your pumping session is over, press the POWER button on the breast pump to stop the pump. Please note, the breast pump will automatically stop after 30 minutes. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 36 9. USING YOUR MOTIF DUO PUMP 9.5 After Pumping After each pumping session, be sure to take apart the assembly. Never attempt to clean or sterilize pump parts when still assembled; ensure you are cleaning and sterilizing each part individually. 1. Twist the diaphragm assembly off the breast shield.
  • Page 37 Never refreeze human milk after it has been Leftover from thawed a Feeding 0 - 2 hours after the baby is (baby did finished feeding not finish the bottle) Source: CDC.gov MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 38 9. USING YOUR MOTIF DUO PUMP How to Thaw Breast Milk 1. Always make sure to check the date on the milk’s container before using. Do not use undated milk, or milk that has been stored longer than recommended. 2. Thaw frozen milk in the refrigerator or under cool, running water.
  • Page 39 Start Memory Mode To play your pumping program, press the DECREASE button (the same button you press to decrease vacuum intensity) for 2 seconds. MODE MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 40 9. USING YOUR MOTIF DUO PUMP Erase Your Set Memory Mode Press the MODE button for 2 seconds to delete the stored pump program. After deleting your stored program, the Memory icon will disappear from the screen. MODE...
  • Page 41 If it has damage, contact Inspect the Power button Does not Motif customer service at and pump exterior for any 844-272-8390 or where you power on foreign objects. purchased the pump. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 42 Remove the milk and tubing from the diaphragm. If you need additional help troubleshooting your breast pump, please reach out to the Motif Medical® Costumer Service Department. You can access them online at motifmedical.com via chat, through email at hello@motifmedical.com or by phone...
  • Page 43 10.2 Disposal Please send components that are no longer used to Motif Medical® or properly dispose of the device in accordance with local, state, and federal regulations. As electrical and electronic equipment, the device must be disposed of according to a specialized procedure for...
  • Page 44 10. TROUBLESHOOTING 10.3 When to Replace Parts How often you should replace your breast pump supplies can vary based on how often you use your breast pump. For example, a mom that exclusively breast pumps about 9 times a day and sanitizes their pump more frequently than a mom that only pumps 3 to 4 times per day will need to replace her parts more often.
  • Page 45 However, keep an eye out for any cracks, tears, or warping because that could indicate that need to be replaced sooner. • The discoloration will not affect how well your pump works but may not be pleasing to the eye. MOTIF MEDICAL® | THE DUO BREAST PUMP | OPERATION MANUAL...
  • Page 46 The warranty is non-transferable. Motif breast pumps are single-user pumps and the warranty only applies to the original pump user. The warranty covers manufacturing defects. Motif Medical® cannot replace a pump part which was damaged by the end user while using the pump. The warranty does not cover lost or stolen items, normal wear and tear to breast pump parts, and items that are misused, abused or improperly stored.
  • Page 47 Manufactured for: Phone: (844) 272-8390 Motif Medical®, LLC Email: info@motifmedical.com 8 The Green, Suite 5601 Web: www.motifmedical.com Dover, DE 19901...
  • Page 48 Thank you for choosing the Motif Duo Double Electric ® Breast Pump. (844) 272-8390 Motif Medical® info@MotifMedical.com 8 The Green, Suite 5601 www.motifmedical.com Dover, DE 19901...
