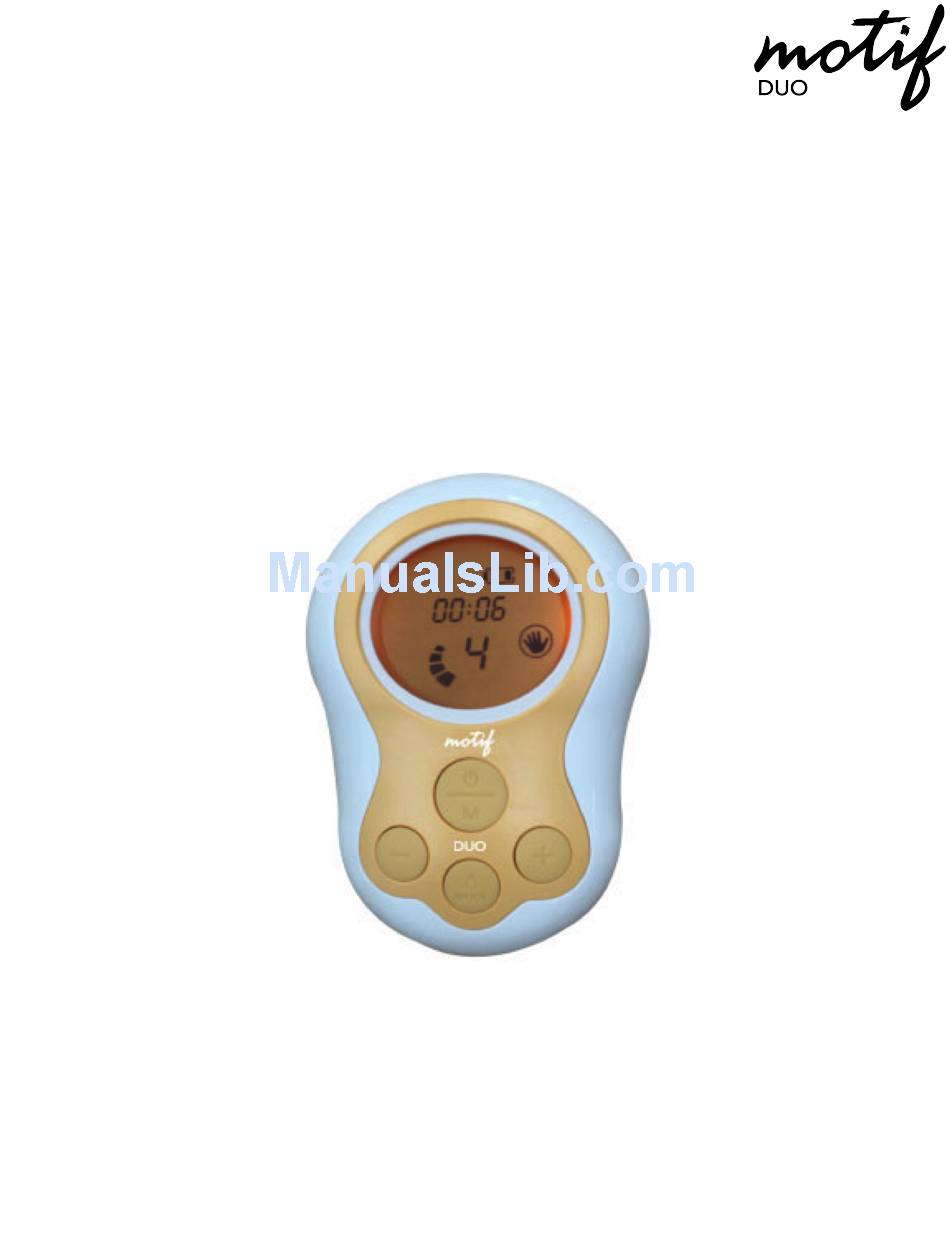

- Page 1 Motif Duo Operation Manual Motif Duo Double Electric Breast Pump Operation Manual...
-
Page 2: Table Of Contents
Motif Duo Operation Manual Table of Contents INTENDED USE PRODUCT DESCRIPTION CONTRAINDICATIONS 1. SAFETY INFORMATION 2. PRODUCT CONFIGURATION 3. PREPARING THE PUMP & PARTS 3.1 Assembling the Tubing and Connector 3.2 Assembling Pump Parts 3.3 LCD Display 3.4 Operating Functions 3.5 Performance Functions... -
Page 3: Intended Use
The Motif Duo Double Electric Breast Pump is intended for use by lactating women to express and collect breast milk. The Duo can be used as a single or double pump and is intended for personal use only — sharing a breast pump can present a health hazard. - Page 4 Motif Duo Operation Manual Caution: If you have been diagnosed with Hepatitis B, Hepatitis C or Human • Immunodeficiency Virus (HIV), pumping breast milk will not reduce or remove the risk of transmitting the virus to your baby through your breast milk.
-
Page 5: Product Configuration
• 2. Product Configuration The Motif Duo double electric breast pump utilizes a vacuum to express breast milk. The motor is classified as a medium vacuum with an intermittent suction device. When unpacking the box, ensure that all of the following components are enclosed. - Page 6 Motif Duo Operation Manual 1. LCD Display 2. Buttons 1. Basic tubing port: Tubing port for single pumping 2. Auxiliary tubing port: tubing port for double pumping 3. Port cover 4. Power adapter port 5. Port cover stabilizer...
-
Page 7: Preparing The Pump & Parts
Motif Duo Operation Manual 3. Preparing the Pump & Parts 3.1 Assembling the Tubing and Connector Insert the metal part of the tubing connector into the end of tubing as shown. 3.2 Assembling Pump Parts 1. Place the diaphragm so the cross-lined surface faces the bottom. Cover the diaphragm top and turn it to lock. -
Page 8: Lcd Display
Motif Duo Operation Manual CAUTION When operating the pump, connect diaphragm tightly to prevent the expressed milk flow from entering the main body. When single pumping, cover the auxiliary tubing port with port cover to prevent airflow into the breast pump. - Page 9 Motif Duo Operation Manual Fully charged 75 - 100% 50 - 75% Percent 25 - 50% Battery ④ Charge 0 - 25% Charge battery when symbol is flashing. The device will shut down automatically when battery dies. Indicates operating time since device has been powered on.
- Page 10 Motif Duo Operation Manual Button Basic function Frequency function Memory function Press longer than 2 Application Press for less than 0.5 Press from 0.5 to 1.5 seconds until the method seconds. seconds. function begins to operate. Memory start/stop Power On/Off button...
-
Page 11: Operating Functions
No response when no sequence saved. 3.4 Operating Functions The Motif Duo has three operating functions: basic massage/express function, frequency change function within the massage level and memory function to save the operating sequence. The memory function, massage/expression mode, level of speed/vacuum strength, and massage/expression time can be saved and restored at any time. - Page 12 Motif Duo Operation Manual After selecting the sequence that you want to save, press and hold the power on/off button for more than two seconds to save the sequence. When saved, the memory icon will turn on. To start the saved operation sequence, press and hold the play button more than 2 seconds while the device is on.
-
Page 13: Performance Functions
4. There are 3 different frequencies for each level of expression. You can change the frequency level by pressing 3.5 Essential Performance Functions The essential performance of the Motif Duo limits its vacuum pressure lower than 250 mmHg. WARNING Only use the Motif Duo for its intended use as described in this manual. -
Page 14: Pumping
Motif Duo Operation Manual 4. Pumping 4.1 Preparing to Pump Wash hands thoroughly with soap and water before touching the breast and pump parts. Check pump components for wear or damage before use and replace parts when/if necessary. Make sure that all components that come into contact with breast milk are cleaned and sanitized appropriately. -
Page 15: Cleaning The Pump
Motif Duo Operation Manual observed, please discontinue use until the parts have been replaced. If you feel pain in your breast or nipple, turn the pump off or slide a finger • between the breastshield and your breast to break the suction. -
Page 16: Sanitation
Motif Duo Operation Manual Tubing Do not clean tubing: replace damaged or dirty tubing with a new set. 5.2 Sanitation 1. Clean all parts before using the pump for the first time. 2. Clean the device (main body) after each use with a dry towel. - Page 17 Motif Duo Operation Manual Freezing Breast Milk • Wait to tighten bottle caps or lids until milk is completely frozen. • Try to leave an inch or so from the milk to the top of the container, as it will expand when freezing.
-
Page 18: Troubleshooting
Motif Duo Operation Manual months is best. Store milk toward the back of the 0°℉ (-18°℃) or Up to 9 months Freezer freezer where the temperature is colder is okay for very most constant. clean expressed milk. Store milk toward the back of the Up to 6 months. -
Page 19: Meaning Of Symbols
Motif Duo Operation Manual Turn off the main body. • Breast milk in Disconnect the tubing from diaphragm top. • tubing Remove the milk from tubing and diaphragm. • If you are having trouble with your breast pump or have further questions, please contact the Motif Medical customer center. -
Page 20: Manufacturer's Declaration On Emc
The set pressure value and operating mode should be unchanged during EMC testing. It is the essential performance of the pump and is checked during EMC testing. Electromagnetic Emissions The Motif Duo is intended for use in the electromagnetic environment specified below. Emissions test Compliance Electromagnetic environment-guidance This electric breast pump uses RF energy only for its internal function. - Page 21 IEC61000-3-3 WARNING The Motif Duo breast pump should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the breast pump should be observed to verify normal operation in the configuration where it will be used.
- Page 22 Motif Duo Operation Manual The electric breast pump is intended for use in the electromagnetic environment specified below. The user of the electric breast pump should ensure that it is used in such an environment. Compliance Electromagnetic Immunity test Test level...
- Page 23 Motif Duo Operation Manual for 5s for 5s Power frequency (50/60 ㎐) magnetic 3 A/m 3 A/m field Power frequency magnetic fields IEC61000-4-8 should be at levels characteristic of a typical commercial or domestic Power frequency environment. (50/60 ㎐) magnetic...
-
Page 24: Technical Specifications
Motif Duo Operation Manual d = 2.3 800 ㎒ ~ 2.5 ㎓ Where p is the maximum output power rating of the transmitter (W) according to the transmitter Conducted RF manufacturer and d is the FDA home use 150 ㎑ ~ 80 ㎒... - Page 25 Motif Duo Operation Manual Functional Characteristics Type Pumping Pressure Electric Breast Pump Vacuum 32 - 250 mmHg Display Function Mode Type 3" Mono LCD Expression 10 levels Pressure Level Numeric & 10 levels Massage 10 levels Operating Time Numeric Display (min:sec)
-
Page 26: Product Warranty
Warranty Period 1 year for motor, 90 days for parts Date of Purchase Manufacturer Motif Medical Thank you for purchasing the Motif Duo Double Electric Breast Pump. This product has been passed through strict quality control and inspection. Motif Duo Double Electric Breast Pump Distributed by Motif Medical LLC.
