Motif Medical Duo Operation Manual

Hide thumbs Also See for Duo:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Duo and is the answer not in the manual?

Questions and answers

Related Manuals for Motif Medical Duo

Summary of Contents for Motif Medical Duo

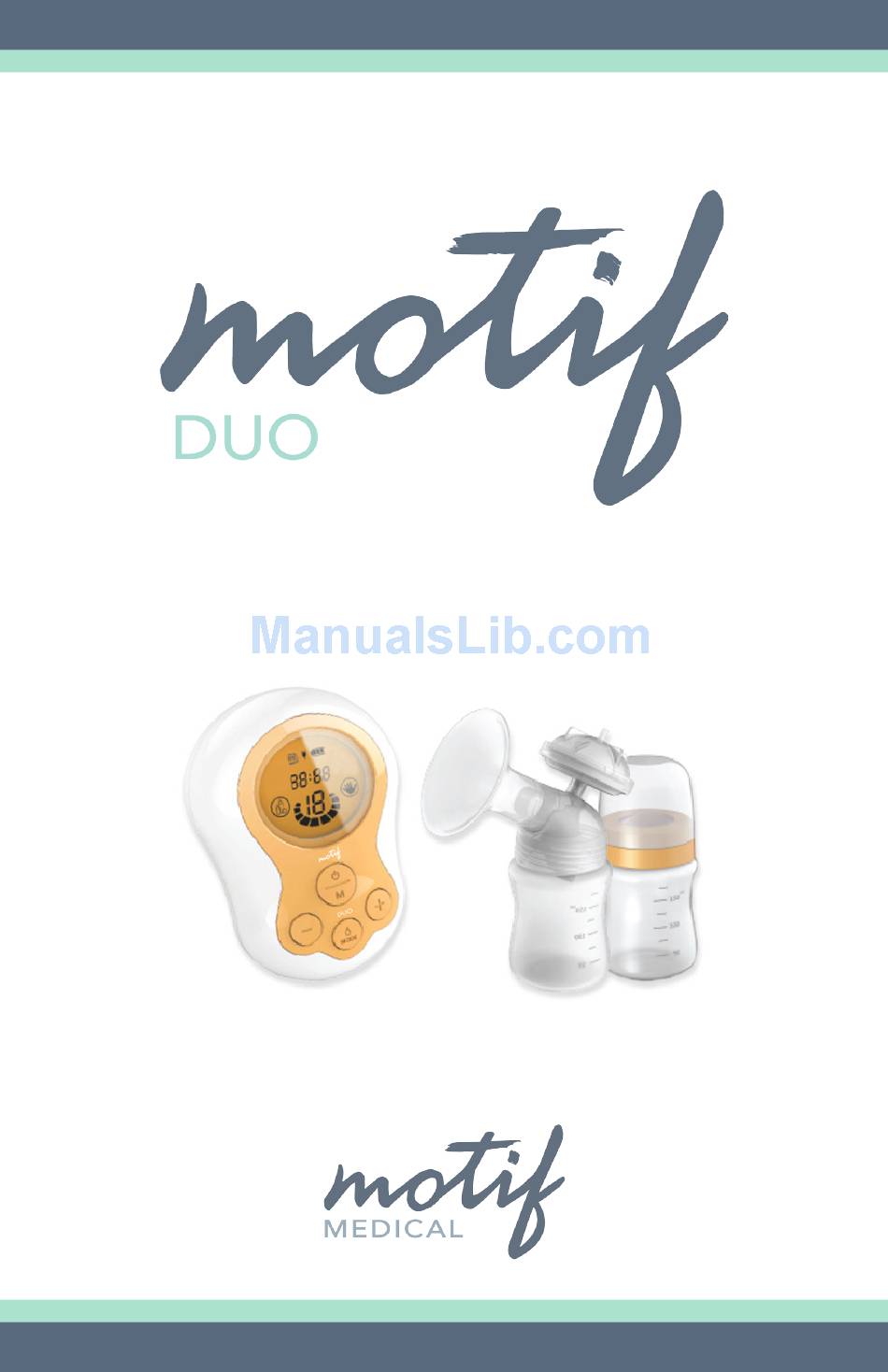

  • Page 1 Operation Manual...

  • Page 2: Table Of Contents

    7. Storing Breast Milk 8. Troubleshooting Product Warranty Caution: Please refer to the Motif Duo Operation Manual for a complete overview of this product. You can download the operation manual at motifmedical.com . Intended Use The Motif Duo Double Electric Breast Pump is intended for use by lactating women to express and collect breast milk.

  • Page 3: Safety Information

    Motif Duo Operation Manual Safety Information Warning Symbols The following symbols are important for user safety. Failure to follow these instructions can lead to personal injury or damage to the breast pump. When used in conjunction with the following words, the symbols...

  • Page 4: Display

    Motif Duo Operation Manual 1. LCD display 2. Buttons: 1. Basic tubing port- tubing port for single pumping 2. Auxiliary tubing port: tubing port for double pumping 3. Port cover 4. Power adapter port 5. Port cover stabilizer Preparing the Pump & Parts...
  • Page 5 Motif Duo Operation Manual Assembling Pump Parts 1. Place the diaphragm so the cross-lined surface faces the bottom. Cover the diaphragm top and turn it to lock. 2. Place the breastshield into the breastshield connector. 3. Connect the valve to the bottom of the breastshield connector. Screw the bottle into the breastshield connector.
  • Page 6 Motif Duo Operation Manual LCD Display...
  • Page 7 Motif Duo Operation Manual Operating Functions The Motif Duo software has three major components: Massage and Expression Modes, Frequency Function, and Programmable Memory. Buttons Each button has three functions. Pressing the button will perform a base function, a Press with a Short Hold will engage the secondary function, and a Press with a Long Hold will engage the advanced function.
  • Page 8 Motif Duo Operation Manual Pump Modes The Motif Duo can operates under Massage or Expression Mode. Massage Mode This Massage Mode operates on 10 suction levels. The Massage Mode mimics baby’s sucking so that allows the breast muscles to relax and stimulate the natural let down so that breastmilk should flow easier.
  • Page 9 Motif Duo Operation Manual Programming Pump Memory You can save your personal settings for Massage and Expression Modes, as well as your optimal pumping session times. 1. Determine the operating sequence that you want to save (Massage and Expression sequence, Speed and Vacuum Levels, and Operating Time) 2.
  • Page 10 Motif Duo Operation Manual Example of Programming Pump Memory If you want to program the following operation sequence: 1. Check the LCD display to see if there is an existing saved operating sequence. The icon is show when there is a saved operating sequence.

  • Page 11: Pumping

    Note: Increasing the Frequency might be accompanied by an increase in noise and vibration. Performance The performance of the Motif Duo is limited to a vacuum greater than -250 mmHg. Pumping Preparing to Pump 1.

  • Page 12: Cleaning The Pump

    Motif Duo Operation Manual Pumping To prevent backflow in tubing, always use the breast pump while seated. 1. Place the breast shield on your breast so that your nipple is centered within breast shield. 2. Turn the Breast Pump on to begin pumping.

  • Page 13: Storing Breast Milk

    Motif Duo Operation Manual Sanitation 1. Clean all parts before using the pump for the first time. 2. Clean the device (main body) after each use with a dry towel. Sanitizing Pump Parts 1. Disassemble all parts that come in contact with breast milk.
  • Page 14 Motif Duo Operation Manual Thawing and Warming Milk • Clearly label milk containers with the date the milk was expressed. Use oldest stored milk first. • Thaw the bottle or bag of frozen milk by putting it in the refrigerator overnight, holding it under warm running water, or by placing it in a container of warm water for several minutes.

  • Page 15: Troubleshooting

    Brand Name Motif Medical Model Name MD-20.2 Serial Number Warranty Period 1 Year Manufacturer Warranty Date of Purchase Thank you for purchasing the Motif Duo Double Electric Breast Pump. This product has been passed through strict quality control and inspection.
  • Page 16 Motif Duo Operation Manual Motif Medical 8 The Green Suite #5601 Dover, DE 19901 Phone: (844) 272-8390 Email: info@motifmedical.com Web: www.motifmedical.com 2017.7 Duo Quick Guide (Duo-ENG-QG-USA-R01)
