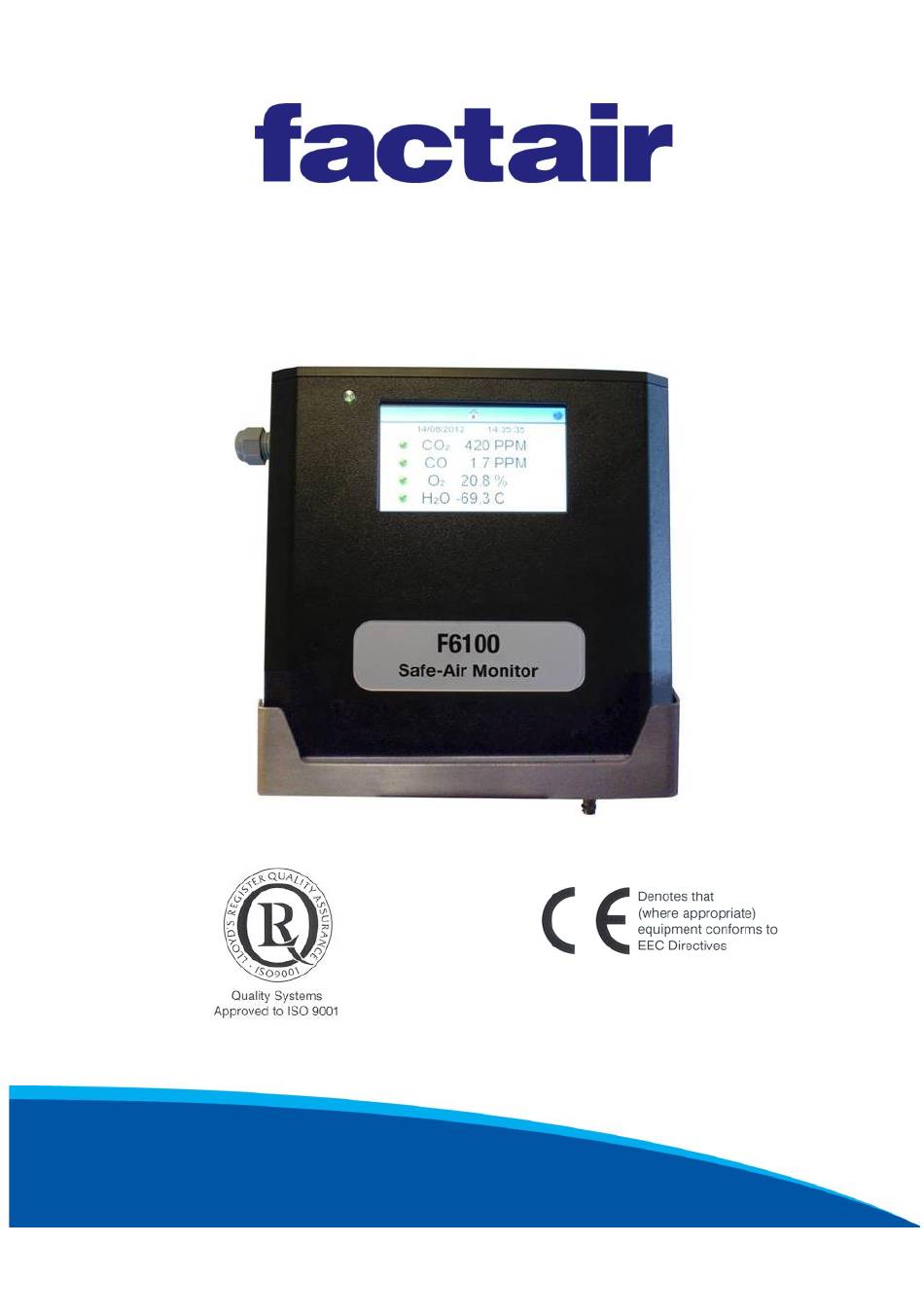

- Page 1 F6100 SAFE-AIR MONITOR OPERATING INSTRUCTIONS FAC QAM 097 Issue E 03/21...
-
Page 3: Table Of Contents
Page(s) INTRODUCTION DIAGRAM & EQUIPMENT LIST INSTALLATION BATTERY AND POWER SUPPLY OPERATING INSTRUCTIONS 5.1 START-UP 5.2 F6100 SCREEN MENUS 5.3 USING THE TEST PORT F6100 PC SOFTWARE 6.1 INSTALLING THE SOFTWARE 6.2 USING THE SOFTWARE DATALOGGED RESULTS APPENDICES Appendix 1 - Helpful tips Appendix 2 –... -
Page 4: Introduction
Periodic oil measurements are completed using the Draeger Impactor, which is inserted into the test port on the instrument. The F6100 provides a prompt to the user whenever an oil Impactor test is required and the time interval can again be defined by the user in the set up. - Page 5 This monitor’s test port is calibrated for the following approved reagent tubes/Impactor. Test Draeger ref. Factair Part Sensitivity Oil (Impactor) 8103560 TUB0053 0.1 mg/m Oil (chemical reagent 6728371 TUB0003 0.1 mg/m tube)* Nitrous Fumes 8103661 TUB0068 0.2-6 ppm Sulphur Dioxide...
-
Page 6: Diagram & Equipment List
Mains input 2 no. 4-20 mA inputs for remote USB Connection for PC Software sensors (not supplied with instrument) Additional Items Supplied with F6100 a. Stylus Pen b. USB Connection Lead c. DVD Training Video d. USB Memory Stick with PC... -
Page 7: Installation
INSTALLATION The F6100 is supplied with a mounting kit which enables the instrument to be wall mounted at the most suitable location to test your breathing-air / compressed-air supply. The test location needs to be as close to the breathing-air supply point as possible, in a well ventilated area free from dust and with a mains power supply available. -
Page 8: Operating Instructions
For high pressure systems the F6100 should be used in conjunction with the F3002 HP regulator. Please note when the unit is first supplied or has been disconnected from the air supply... -
Page 9: F6100 Screen Menus
5.2 F6100 SCREEN MENUS On the home screen the unit displays the date and time together with the current reading carbon dioxide, carbon monoxide, oxygen and moisture. A green tick or red exclamation mark next to each of these confirms whether they are meeting the selected breathing-air standard. -
Page 10: Using The Test Port
To prepare the tubes Factair recommends the F2187 Draeger tube tip cutter, this is not supplied as standard. If you have another Draeger tube, which you wish to use with the instrument, contact Factair for technical advice on its suitability. - Page 11 To complete an Impactor test click on the button. The instrument will now begin a 1-minute purge sequence, during which time an airflow will be passed through the test port. This clears contaminants from previous tests and ensures that a representative sample is being tested.
- Page 12 If you have no knowledge of the type of compressor lubricant being used in the breathing-air system then Factair recommends 15 minutes as this covers the vast majority of lubricants. Once you have selected the tube to tested follow the testing process as described earlier in the...
- Page 13 Once you have selected which tube you wish to test the instrument will complete its purge sequence after which you will be prompted to insert the appropriate tube into the test port and tighten firmly. Note: Both ends of the tube should only be cut immediately prior to the test.
-
Page 14: F6100 Pc Software
F6100 PC SOFTWARE INSTALLING THE SOFTWARE The PC software program (F6100 Configuration Software) is available to download from the Factair website: http://www.factair.co.uk/downloads/ USING THE SOFTWARE Once the software is installed when you run the application the following screen will be... - Page 15 A message will then be displayed to confirm you have connected the cable, press ok to proceed. A message will then be displayed to confirm the settings have been downloaded into the software, click ok to proceed. A typical example of a configuration is shown below:...
- Page 16 General In the General section there is a range of configurable options available these include: A commissioning delay you want which will then allow time for the sensors to stabilise before the alarm is activated. The datalogging interval allows you to choose how frequently test results are being saved to the instrument’s SD card.
- Page 17 A message will then be displayed to confirm the settings have been uploaded into the F6100, click ok to proceed. The software can then be closed by clicking on the red X in the top right hand corner of the...
-
Page 18: Datalogged Results
Test results are recorded in a CSV format on the instrument’s SD card. These results can be read using Microsoft Excel, alternatively a free of charge software program to analyse results is available from Factair and can be downloaded from the website (F6100 Data Monitoring Software): http://www.factair.co.uk/downloads/... -
Page 19: Appendix 1 - Helpful Tips
1 minute prior to the test results being saved onto the SD card a blinking icon will be displayed on the home screen. This icon will continue to blink if the SD card is not in the instrument and the F6100 has been unable to save the results. -
Page 20: Appendix 2 - Draeger Tube Tip Cutter
APPENDIX 2 Draeger Tube Tip Cutter Note: This item is not supplied as standard with the F6100. The F2187 is especially designed to prevent glass from falling out of the opener by accident. The reservoir for the broken-off tips is easy to empty. -
Page 21: Appendix 3 - Reading The Oil Impactor Draeger
APPENDIX 3 Reading the Draeger Oil Impactor and Chemical Reagent Tubes Oil Impactor With a standard measurement range of 0.1 to 1.0 mg/m the Impactor has a limit of detection of 0.05 mg/m . The Impactor features a series of 3 horizontal lines, each formed by a series of precision manufactured nozzles. - Page 22 Each pack of tubes has its own instruction leaflet but the following notes should help you take readings after the tests have been completed. Oil (67 28371) REQUIREMENT FOR BS EN12021 BREATHING-AIR SHOULD HAVE A MAXIMUM OIL CONTENT OF 0.5 MG/M³ AND SHOULD BE WITHOUT SIGNIFICANT ODOUR OR TASTE.
- Page 23 Water (H O) (67 28531) REQUIREMENT FOR AIRLINES BELOW 40 BAR THE PRESSURE DEWPOINT TO BE 5°C BELOW THE LIKELY LOWEST TEMPERATURE. WHERE THE LIKELY LOWEST TEMPERATURE IS NOT KNOWN THE PRESSURE DEWPOINT SHOULD NOT EXCEED -11°C. FOR HIGH-PRESSURE CYLINDERS THE FOLLOWING UPPER LIMITS APPLY: - 40 TO 200 BAR = 50MG/M³, ABOVE 200BAR = 35MG/M³...
- Page 24 Nitrous Fumes (NO ) (8103661) REQUIREMENT MAXIMUM READING OF 2 PPM. The media in the detector tube will discolour to show the presence of nitrous fumes. The total length of the discoloration is the measure of concentration read directly from the scale in parts per million.
-
Page 25: Appendix 4 - Disposal Of Draeger-Tubes
APPENDIX 4 Dräger Disposal of Draeger-Tubes When Draeger-tubes have been used, or unopened tubes have exceeded their expiry date, they should be disposed of using one of the following methods : Used Tubes Submerge the tube(s) in a beaker or metal container filled with water and allow to soak for 24 hours. - Page 27 Factair Ltd 49 Boss Hall Road Ipswich Suffolk IP1 5BN Tel Sales: +44 (0) 1473 746400 Tel Hire: +44 (0) 1473 746444 Fax: +44 (0) 1473 747123 Email: enquiries@factair.co.uk www.factair.co.uk...
