Powered aerial platform

Advertisement

Quick Links

SB66JRT
Operator Manual
(EN) Manual part number 508372-002 for serial numbers 10032 to current.
June 08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNORKEL TB66J and is the answer not in the manual?

Questions and answers

Summary of Contents for Upright SNORKEL TB66J

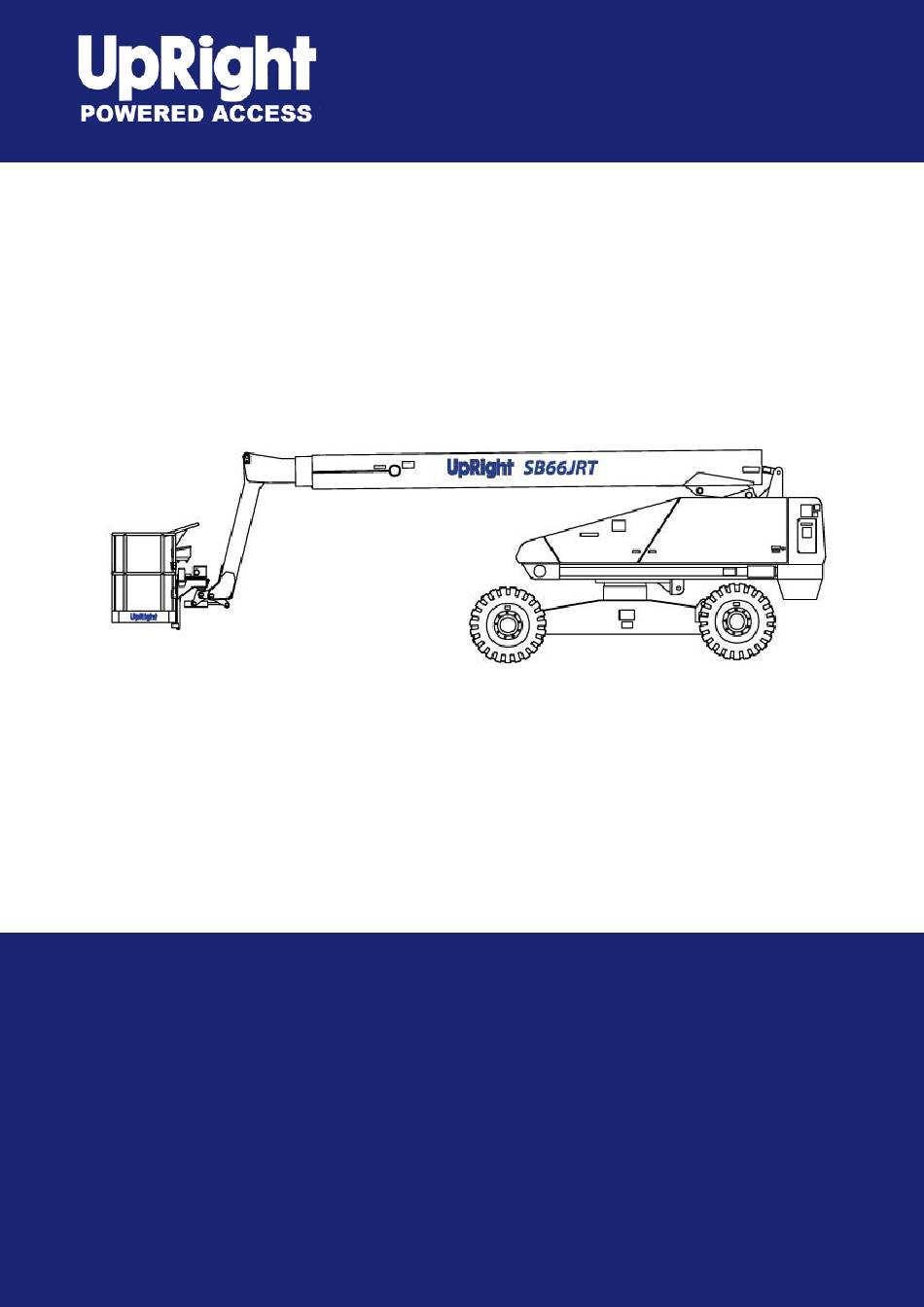

  • Page 1 SB66JRT Operator Manual (EN) Manual part number 508372-002 for serial numbers 10032 to current. June 08...
  • Page 3: Table Of Contents

    Table of Contents Table of Contents Transporting the Machine .........13 Declaration of Conformity ...........2 Preparing for Transportation .........13 Safety Rules ...............3 By Crane ...............13 Introduction ..............4 By Truck ..............13 Component Identifi cation ..........4 Maintenance .............14 Special Limitations............5 Hydraulic Fluid ............14 Platform Capacity ............5 Check Hydraulic Fluid ...........14 Manual Force ............5...
  • Page 4: Declaration Of Conformity

    FOR MACHINERY MACHINERY: Powered Aerial Platform known as: Type: SNORKEL TB66J (Upright SB66JRT) Serial Number: The machine specified above conforms to the following provisions: Machinery directive 98/37/EC (using document EC Community Legislation on Machinery and taking guidance from EN280:2001 + Amendment A1:2004)
  • Page 5: Safety Rules

    It is designed for repair and assembly jobs and assignments at overhead workplaces (ceilings, cranes, roof structures, buildings etc.). Uses or alterations to the aerial work platform must be approved by UpRight. THIS AERIAL WORK PLATFORM IS NOT INSULATED! For this reason it is imperative to keep a safe distance from live parts of electrical equipment! Exceeding the specifi...
  • Page 6: Introduction

    Introduction Introduction When contacting UpRight for service or parts information, be sure to include the MODEL and SERIAL NUMBERS This manual covers the SB66JRT Aerial Work Platform. from the equipment nameplate. Should the nameplate be missing, the SERIAL NUMBER is also stamped at the This manual must be stored on the machine at all top front of the chassis.
  • Page 7: Special Limitations

    Special Limitations Special Limitations The system will remain in error mode until the excess load is removed from the platform and the emergency Travel with the platform raised is limited to creep speed stop button or start switch is cycled off and back on, range.
  • Page 8: Controls And Indicators

    Controls and Indicators Controls and Indicators 13. Ground operation switch 14. Engine throttle switch The operator shall know the location of each control and 15. Boom rotate switch indicator and have a thorough knowledge of the function 16. Platform overload light and operation of each before attempting to operate the 17.
  • Page 9: Pre-Operation Safety Inspection

    Pre-Operation Safety Inspection Pre-Operation Safety Inspection 3. Check that the fluid level in the batteries is correct. See “Battery Maintenance” on page 14. Note Carefully read, understand and follow all safety rules, 4. Check that all guardrails are in place and all fasteners operating instructions, labels and National Safety Instruc- are properly tightened.
  • Page 10: System Function Inspection

    System Function Inspection System Function Inspection 5. Test each machine function (Lift, Slew, Telescope) from the lower control station by holding the ground Refer to “Controls and Indicators” on page 6 for the loca- operation switch up while operating the control toggle tions of various controls and indicators.
  • Page 11: Operation

    Operation Operation At the lower controls, hold the manifold heater switch on for about a minute before turning the master switch to The aerial platform may be operated from either the lower start the engine. A glow plug in the manifold preheats the or upper controls.
  • Page 12: Upper Controls

    Operation 1. Pull the emergency stop button outward. Insert the 2. Step down on the platform foot switch. This switch key in the control selector and turn the switch to the must be held down to operate the upper controls. lower control position.
  • Page 13: Drive Speeds

    The air line may be used to conduct fluids such as water The drive speed is proportional to the joystick position. or antifreeze. Contact your local distriburor or UpRight The farther the joystick is moved, the faster the travel for compatibility information before using the air line to speed.
  • Page 14: Driving Lights

    Operation Use the following procedure to drain the air line. 1. Close the input connector on the chassis. 2. Open the output connector at the platform. 3. Raise the boom slightly above horizontal. 4. Open the input connector on the chassis. 5.
  • Page 15: Transporting The Machine

    Transporting the Machine Transporting the Machine Caution Preparing for Transportation Ratchets, winches, and come-alongs can produce Use the following procedure to prepare the aerial platform enough force to damage machine components. Do for transportation. not over tighten the straps or chains when securing the aerial platform to the transport vehicle.
  • Page 16: Maintenance

    Maintenance Maintenance Battery Maintenance Warning Warning Hazard of explosive gas mixture. Keep sparks, flame, Never perform service while the platform is el- and smoking material away from batteries. evated. Always wear safety glasses when working near bat- Hydraulic Fluid teries. The hydraulic fluid reservoir is located in the chassis door.
  • Page 17: Inspection And Maintenance Schedule

    Inspection and Maintenance Schedule Inspection and Maintenance Schedule Warning The Complete Inspection consists of periodic visual and Before performing preventative maintenance, famil- operational checks, along with periodic minor adjustments iarize yourself with the operation of the machine. that assure proper performance. Daily inspection will pre- Always block the elevating assembly whenever it is vent abnormal wear and prolong the life of all systems.
  • Page 18: Daily Preventative Maintenance Checklist

    Daily Preventative Maintenance Checklist Daily Preventative Maintenance Checklist Preventative Maintenance Report Serial No: Date: Serviced By: Owner: Model No: ITEM INSPECTION OR SERVICES Operator’s Manual In place, all pages readable and intact Engine Oil level Between full and add marks Coolant Air intake and fan free of obstructions, belt in good condition Radiator...
  • Page 19: Decal Location

    Decal Location Decal Location A08065S SB66JRT – 0084221...
  • Page 20 Decal Location ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 0162336F DECAL, DANGER ELECTRI- 508229-001 1 DECAL, UPRIGHT BRAND CAL HAZARD – FRENCH LOGO 0162366 DECAL, DANGER ELECTRI- 0162336E DECAL, DANGER ELECTRI- CAL HAZARD – FRENCH CAL HAZARD – ENGLISH...
  • Page 21 DECAL, ROTATE WHILE 0151410G DECAL, DANGER ROTAT- GREASING – ENGLISH ING PARTS – GERMAN 0073492F DECAL, ROTATE WHILE 508228-001 2 DECAL, UPRIGHT LOGO GREASING – FRENCH 0083432 DECAL, LIFT /TIE DOWN 0073492P DECAL, ROTATE WHILE LOCATION GREASING – SPANISH 0071926...
  • Page 22: Specifi Cations

    Specifi cations Specifi cations Maximum operating temperature 93°C (200°F) Aerial Platform Hydraulic fluid recommended Working height 21.9 m (72′) Above -12°C (10°F) Mobil DTE-13M (ISO VG32) Maximum platform height 20.1 m (66′) Below -12°C (10°F) Mobil DTE-11M (ISO VG15) Horizontal reach 17.1 m (56′) Main boom Engine...
  • Page 24 Local Distributor: Lokaler Vertiebshändler: Distributeur local: El Distribuidor local: Il Distributore locale: Europe TEL: +1 (559) 443 6600 TEL: +44 (0) 845 1550 058 FAX: +1 (559) 268 2433 www.upright.com PN- 508372-002-(EN)
