Upright MB20N Service & Parts Manual

Work platform
Hide thumbs Also See for MB20N:

Advertisement

Quick Links

POWERED ACCESS
MB20
/26
N
WORK PLATFORM

Advertisement

loading
Need help?

Need help?

Do you have a question about the MB20N and is the answer not in the manual?

Questions and answers

Related Manuals for Upright MB20N

Summary of Contents for Upright MB20N

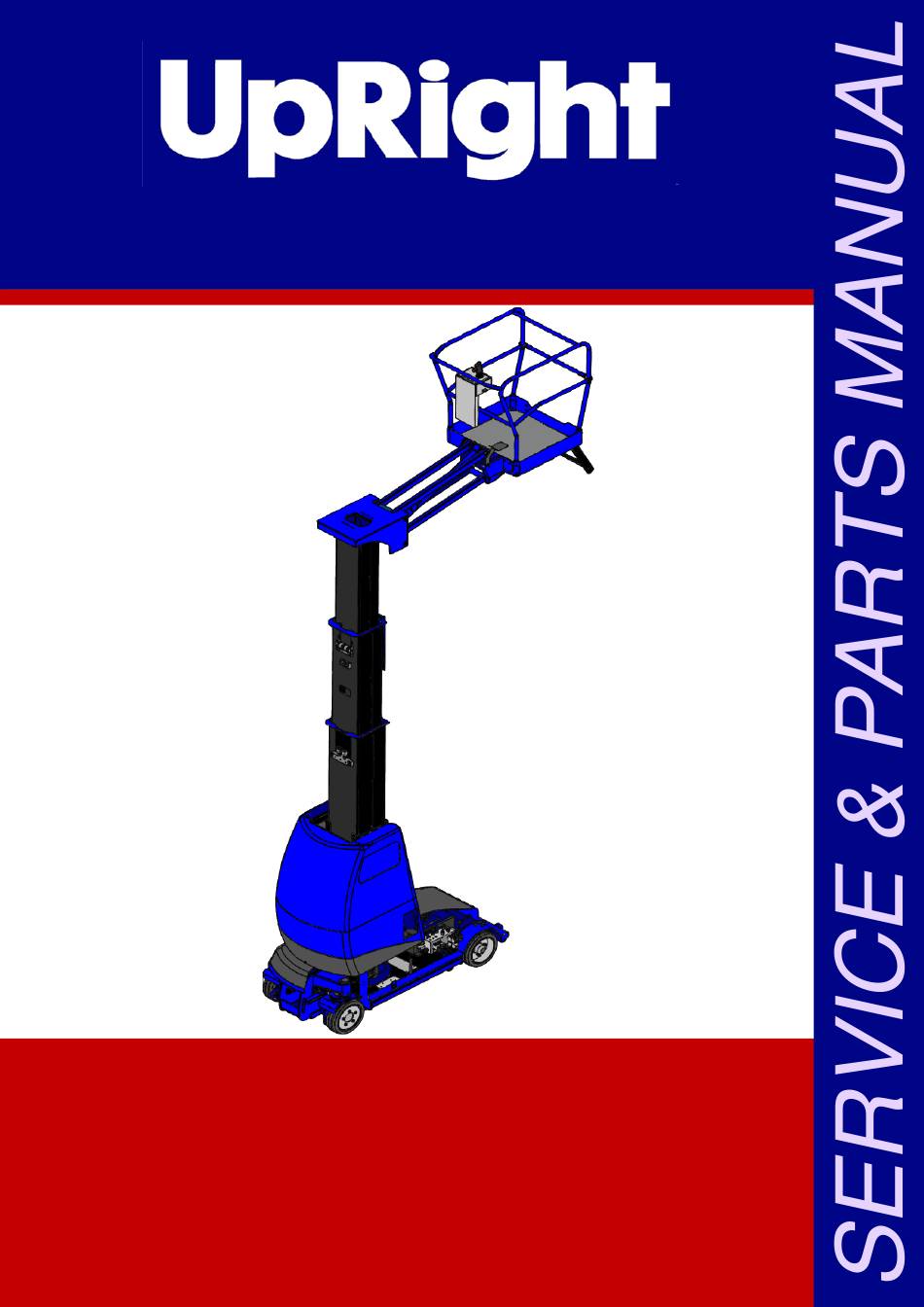

  • Page 1 POWERED ACCESS MB20 WORK PLATFORM...
  • Page 3 MB20 /26 SEVICE AND PARTS MANUAL PART NUMBER: 501376-001 SERIAL N . MB20 0132 - current MB26 0245 - current OREWORD This manual is divided into six main sections. NTRODUCTION ECTION General description, including machine specifications and limitations. PERATION AND PECIFICATIONS ECTION Information on how to operate the work platform and how to prepare it for operation.
  • Page 4 MB20N & MB26 Work Platform manufactured by Upright Powered Access Ltd. The purpose of this machine is to provide fast and safe access to difficult to reach areas. The machine may only safely operated on firm level ground.
  • Page 5 1. Introduction LATFORM The MB20/26 platform is large enough for two operators and has a free-draining perforated floor with 150 mm toeboards. Hand-rails are constructed from aluminium tubing and a safety drop-bar is provided at the entrance. Safety harness anchor points are also fitted in the floor of the platform.
  • Page 6 Please understand that these warnings cannot cover all conceivable ways in which service, whether or not recommended by UpRight, might be done, or of the possible hazardous consequences of each conceivable way, nor could UpRight investigate all such ways.
  • Page 7 2. Operation & Specifications 2. Operation & Specifications 2.1 I NTRODUCTION PECIAL IMITATIONS The purpose of this machine is to provide fast and safe access to difficult to reach areas. Refer to the Specification section for the machines access limitations. Travel with the platform raised is limited to creep speed range.
  • Page 8 2. Operation & Specifications 2.2 G ENERAL ESCRIPTION The MB20/26 are self propelled, fast acting aerial work platforms, designed to raise two operators with hand tools to a platform floor height of 6.00m and 7.76m respectively. The accessible height is approximately 2.00m above these figures. The unit offers the ability to reach over obstacles but must be used on firm and level ground at all times.
  • Page 9 2. Operation & Specifications 2.3 S AFETY NSPECTION This Safety Inspection shall be carried out by the owner immediately prior to transporting this machine. This Safety Inspection shall also be carried out by the user prior to use each day. The procedure is to carry out the following 14 checks in order as follows.
  • Page 10 2. Operation & Specifications Figure 4: Lower Control Panel 1. Enable Button 2. Analog Rocker 3. Mast Button 4. Jib Button 5. Rotate Button 6. Emergency Stop 6. Prior to operating the functions, check that the upper and lower emergency stop buttons on each control station are retracted;...
  • Page 11 2. Operation & Specifications The function of the mast straps is to ensure that masts descend in the correct order and more importantly, that masts cannot continue to descend if the jib or platform meets an external obstacle. Raise the masts about 30cm. Check the external mast clamp screws for tightness.
  • Page 12 2. Operation & Specifications W A R N I N G The issue of reduced speed while elevated and deployment of the pothole protection bars is crucial to the safe operation of this machine. The machine may not be released or operated unless these functions operate properly.
  • Page 13 2. Operation & Specifications W A R N I N G DO NOT operate the machine from the upper controls until the platform entrance drop-bar is in the fully lowered position and your safety harness has been fitted and attached. PPER ONTROL ANEL...
  • Page 14 2. Operation & Specifications TEMS AMES UNCTION Steering Switch Turns the wheels left or right. Jib Select Button Pre-selects the Jib function. Mast Select Button Pre-selects the Mast function. Rotate Select Button Per-selects the Mast Rotate function. Pre-selects the drive function with the mast in the raised Drive (Mast Raised) position and for high torque.
  • Page 15 2. Operation & Specifications Figure 4: Lower Control Panel 1. Enable button 2. Rocker switch 3. Mast selection button 4. Jib selection button 5. Rotate selection button 6. Emergency Stop YPICAL PERATION Raising the mast. • The Keyswitch located on the Upper Control box must be turned on. •...
  • Page 16 2. Operation & Specifications 1. Enter the Platform through the entrance at the rear of the MB20/26 and ensure that the drop bar is in position. Raise and lock the entry step by means of the pedal in the platform. 2.
  • Page 17 2. Operation & Specifications MERGENCY ITUATIONS In any emergency situation, the immediate action is to push the red “Emergency Stop” button. This will instantly cut of all electrical power to the controls. The button must be twisted in a clockwise direction in order to recommence control. However, the switch should be reset only when it is safe to do so.
  • Page 18 ACHINE EIGHTS Before transporting or lifting the MB20N/26 machine be aware of its weight. It is very important to realise that the centre of gravity of the stowed machine is approximately 80 cm above ground and in the plane of the energy chain which is located on the back of the mast.
  • Page 19 2. Operation & Specifications 1. Never approach the MB20 from the front or rear while fork lifting. 2. Use maximum forklift tilt as soon as possible when raising the MB20/26. 3. If travelling over sloped or uneven ground it is strongly recommended to temporarily tie the MB20 jib mount structure to the forklift mast as a safety precaution.
  • Page 20 When the MB20n/26 is on the truck or trailer it should then be made secure by:- 1. Chocking the wheels.
  • Page 21 2. Operation & Specifications Proceed as follows:- (Refer to the valve block drawing Figure 6.) 1. Fully lower the jib boom and the mast sections. Rotate the mast into the stowed position. 2. Turn the Upper Control Box to the OFF position and remove the key. 3.
  • Page 22 2. Operation & Specifications ETER To access the hour meter function perform the following steps. 1. Climb into the basket (with the machine powered up) 2. Push the platform emergency stop button. 3. Hold down the following buttons, Horn and Lift. 4.
  • Page 23 2. Operation & Specifications AILY REVENTATIVE AINTENANCE HECKLIST Daily daily preventative maintenance will prevent abnormal wear and prolong the life of all systems. The inspection & maintenance schedule should be performed at the specified intervals. Inspection and maintenance shall be performed by personnel who are trained and familiar with mechanical and electrical procedures.
  • Page 24 2. Operation & Specifications PECIFICATIONS MB20 MB20 EU V MB20 US V ARAMETER ERSION ERSION Duty Cycle 45%over 8 hour cycle 35%over 8 hour cycle Platform Size 780mm x 745mm 31in. x 29in. Maximum Platform Capacity 215kg. 425lbs. Maximum No. of Persons Heights: Maximum Platform Height 6.00m...
  • Page 25 2. Operation & Specifications PECIFICATIONS MB26 MB26 EU V MB26 US V ARAMETER ERSION ERSION Duty Cycle 45%over 8 hour cycle 35%over 8 hour cycle Platform Size 780mm x 745mm 31in. x 29in. Maximum Platform Capacity 215kg. 425lbs. Maximum No. of Persons Heights: Maximum Platform Height 7.79m...
  • Page 26 2. Operation & Specifications OTES 2 - 20...
  • Page 27 DO NOT undertake any mechanical, electrical or structural modifications to the design of this machine. Any departure from the normal use of the machine must be certified in writing from UpRight Powered Access Ltd. or other responsible authority. Failure to abide by this instruction is a Safety Violation and a Warranty Violation.
  • Page 28 Maintenance The MB machine should be maintained while on level ground only. This will ensure that the mast rotating mechanism and the running gear are stable. The greatest risk to safety when maintaining the work platform is the sudden motion under gravity when a hose connection or built-in valve is loosened.
  • Page 29 Other service methods may be deployed to carry out a specific task, however, these methods may not be recommended by UpRight. UpRight cannot investigate all possible methods nor can they warn against all possible dangers Service personnel must be fully satisfied that neither personal safety nor machine safety is compromised.
  • Page 30 W A R N I N G Where an abnormal situation is noted - for example damage to a part etc. - it is imperative that advice is sought from UpRight Techncal advisors or from a suitably qualified person before continuing with maintenance.
  • Page 31 Lubricate per Lube Chart Cylinder rod straightness. Fit a complete new cylinder if rod is bent. Score Check cylinder rod for abrasions Change Replace with Upright Spare Part. Clean Extract, clean and replace. Replace Part liable to become detached. Replace if missing.
  • Page 32 Maintenance AINTENANCE CHEDULE ESCRIPTION AILY EEKLY ONTHLY ONTHLY EARLY Chassis Base 1 Chassis Structure Damage Clean 2 Chassis Towing Points Damage 3 GRP Covers Fixing Replace 4 Tyres Wear 5 Wheel Studs Fixing Wear 6 Hydraulic Drive Motors Leaks 7 Parking Brakes Leaks 8 Rear Wheel Bearings Wear...
  • Page 33 Maintenance 3.5 L UBRICATION REASE OINTS Clean each fitting before applying grease. Using multipurpose grease (NLGI #1 or #2), pump the grease into the fitting using a gun until grease just begins to appear at the edges of the pivot pin. Wipe away excess grease. Figure 3-1: Grease Points IVOT Apply grease liberally to the Pivot Pin and Pin Lock Plate locations using a brush or cloth.
  • Page 34 Maintenance Figure 3-3: Bonnet Catch To remove the cover, loosen the 2 Turn to Open bonnet catches by twisting half a turn in the anticlockwise direction. Undo the 2 side catches by pressing on the black tab lock, flipping out the tab and twisting 1/4 turn in the clockwise direction.
  • Page 35 Maintenance Figure 3-7: Mast Cover Removal The rear ‘wings’ of the cover must be splayed out as shown while lifting the cover off its rest position. Locate the lower control box cable within the left wing and undo the cable connector by turning it anticlockwise.
  • Page 36 Maintenance ADDER The machine should not be operated with a damaged ladder. Failure to replace a damaged ladder could result in injury. Do not repair a damaged or broken ladder. Use only plated bolts and nylok nuts when renewing the ladder pivots. Replace damaged, missing or jammed drop-bars on the cage rails.
  • Page 37 Maintenance AILS The cage rails are fixed in position by means of 8 No. M8 ISO grade 8.8 bolts. Regularly inspect these bolts for damage and replace as necessary. The bolts should be tightened to a torque of 20.0 Nm. The cage rails are manufactured from painted aluminium alloy.
  • Page 38 Maintenance Figure 3-12: Jib Pin Removal Inspect the cylinder boss and the jib ends for bushing wear and replace as necessary. When replacing the bushings it is important to first remove burrs and lightly oil the steel bosses. Use a small mallet and drift to fit the bearings. Take care not to score the ptfe/bronze coatings as this will greatly reduce the useful life of the bearing.
  • Page 39 Maintenance 3.8 S WITCH DJUSTMENTS IMIT WITCH UNCTION This limit switch is activated when the Elevating Assembly is fully lowered into the stowed position. The limit switch is a magnetic reed type and is mounted on a bracket between the jib strut and the fixed mast.
  • Page 40 MB20/26 masts is a specialised task requiring special tools, jigs and fixtures. Structural damage to any of the masts requires a total replacement of the complete mast Remove the covers to facilitate handling assembly by UpRight Powered Access. 3 - 14...
  • Page 41 Maintenance The jib-mount structure may be replaced as follows:- Remove the platform and jib assembly as per the instructions in Section XXX. Carefully route the hoses and cables through the openings in the back of the jib- mount weldment. Take note of the positions of hoses and cables to facilitate refitting. Remove the cover plate at the top of the jib-mount to reveal the chain and pulley assembly.
  • Page 42 HAINS TRAPS HAINS Disassembly and replacement of the lifting chains on the MB20N & MB26 machines is a specialised task requiring special tools, jigs and fixtures. Damage to the chains requires a re-assembly of the mast sections. Servicing of the lifting chains can be broken into 3 separate functions:- •...
  • Page 43 NCHOR NSPECTION DJUSTMENT The chain anchors on the MB20N & MB26 machines can be inspected by adjusting the height of the masts until the anchor points come into view through the inspection opening. Figure 3-18: Top Chain Ends,Mast-3 Top chain...
  • Page 44 Maintenance If the differential dimension is greater than 6mm. then it is neccessary to tighten the loose adjuster. Return the masts to the fully lowered position and check the overall height of the mast assembly from the ground. Check that the nominal dimension is 1995 mm. If this dimension has been exceeded during chain balancing, then it is likely that one of the chain pairs the chains has been overtightened, causing the masts to rise above the normal position.
  • Page 45 Maintenance 3.11 W & S HEELS TEERING TEERING SSEMBLY Steering on the MB20 & MB26 machines is via an hydraulic cylinder mounted on the front of the chassis. Figure 3-23: Front Steering Wheels Two steering link arms provide extra tight turning ability and ensure correct geometry during a tight turn.
  • Page 46 Maintenance Figure 3-24: Front Wheel Assembly Before re-assembling the unit, check that the grease nipple is free from dirt. Lubricate the pivot shaft and chassis pivot tube with grease. Lift the assembly into the pivot preferably using a forklift. The unit weighs approximately 70kg. Fit the spacer washer and a new circlip if necessary.
  • Page 47 Maintenance It is strongly recommended to change the filter element in any case after each 500 hours work. To replace the filter element undo the 4 screws at the top of the filter body. Refer to Figure 3-26. The element is retained by means of the o-ring seal. Do not remove the replacement element wrapping until required - invisible contamination can cause damage to hydraulic components.
  • Page 48 Maintenance 3.13 H YDRAULIC ALVES PERATING RINCIPLES ONTROL ALVES This machine is fitted with 3-way, 2-position and 4-way, 3-position cartridge type directional control valves. When the circuit is activiated and the solenoid activated, the spool shifts and allows oil to flow through the port and on to the desired activator (cylinder or motor).
  • Page 49 Maintenance ELIEF ALVE DJUSTMENT 1. Operate the hydraulic system for 10-15 minutes to warm the oil. 2. Remove the rear chassis cover. 3. Insert a (zero-to-300 bar) pressure gauge into the high pressure gauge port on the Manifold Block. 4. Loosen the locknut on the Main relief valve (CT 10) and insert a 4 mm allen key into the hex head adjusting screw.
  • Page 50 Maintenance ROSS ELIEF ALVE DJUSTMENT 1. Operate the hydraulic system for 10-15 minutes to warm the oil. 2. Remove the rear chassis cover. 3. Insert a (zero-to-100 bar) pressure gauge into the high pressure gauge port on the Manifold Block. 4.
  • Page 51 Maintenance ANIFOLD LOCK EMOVAL 1. Remove the rear chassis cover. 2. Disconnect the Battery Disconnect Plug. 3. Tag and disconnect the solenoid valve leads. 4. Tag and disconnect the hydraulic hoses from the top face of the block. 5. Lift the manifold block from the two studs onthe tank. Rotate the block to give access to the underside hose end fittings.
  • Page 52 Maintenance Apply the following torques to all components:- • Cartridge Valves 20 Nm • Relief Valves 45 Nm • Overcentre Valves 45 Nm • Coil Retainers 4 Nm LOCK NSTALLATION 1. Refer to the exploded view of the block before connecting the hoses to the male adaptors on the underside.
  • Page 53 Maintenance NSTALLATION 1. Lubricate the pump shaft with a Molybdenum based grease and attach to the motor. Take care to orientate the pump ports correctly relative to the motor terminals. Tighten the 4 capscrews to 27Nm. 2. Refit the hoses. 3.
  • Page 54 Maintenance Figure 3-29: Main Lift Cylinder Component Breakdown Note: The diagram shoes a sample cylinder breakdown for the Upper Lift Cylinder. Component Breakdowns of the other cylinders are shown in the Illustrated Parts Breakdown. Body End Block Overcentre Valve Seals Collor Locking Washer Cylinder Body Washer Tab...
  • Page 55 Maintenance ISASSEMBLY 1. Unscrew the headcap and withdraw the rod and piston assembly from the barrel tube. 2. Unscrew the piston nut and remove piston and headcap from the cylinder rod. 3. Remove the piston static O-ring from the cylinder rod. 4.
  • Page 56 Maintenance 3.17 B ATTERIES RINCIPLES OF PERATION Electrical energy for the motor is supplied by four 6- Volt batteries wired in series to give a 24 volts DC supply. Each of these batteries consist of three cells supplying a maximum voltage of 2.2V each, i.e.6.6V at each battery or 26.4V for the full battery pack.
  • Page 57 Maintenance 3.18 B ATTERY AINTENANCE ATTERY NSPECTION AND LEANING Check battery fluid level every day, especially if the work platform is being used in a warm, dry climate. Top up using distilled water only. Tap water contains a high mineral content and will shorten the battery life. W A R N I N G Danger of explosive gas mixture.
  • Page 58 Maintenance W A R N I N G DO charge batteries in a well-ventilated area. DO NOT charge batteries in the vicinity of sparks or flames. NEVER leave the charger operating unattended for more than two days. NEVER disconnect cables from batteries when the charger is operating. Permanent damage to batteries will result if they are not recharged immediately after discharging.
  • Page 59 Maintenance ATTERY LUID EVEL Open the Inspection hatches on both sides of the upper mast cover. Check that the AC mains cable is disconnected from the battery charger. Check the electrolyte level in each battery cell. If electrolyte level is less than 10 mm above the top edge of the plates then distilled water must be added.
  • Page 60 For further assistance contact the local distributor and if warranted the UpRight Powered Access Product Support at: UpRight U.K.
  • Page 61 Following is a list of tools which may be required to perform certain maintenance procedures on the MX19 work platforms. • Flow Meter with Pressure Gauge (UpRight P/N 067040-000) • 0-69 bar (0-1000 psi ) Hydraulic Pressure Gauge with Adapter Fittings (UpRight P/N 014124-010) •...
  • Page 62 Troubleshooting 4.2 G ENERAL ROUBLESHOOTING ROBLEM AUSE CTION All functions inoperable. 1. Blown main fuse Check the 475A fuse and replace if necessary Electric motor does not start. 2. Faulty Battery Charger Connect charger to batteries and check the output voltage. If less than 24v, repair or replace.
  • Page 63 Troubleshooting ROBLEM AUSE CTION Platform assembly will not 1. Faulty controller Check the fault codes 57-58 slew 2. Faulty slew solenoid Check voltage at the solenoid electrical connections. Use a screw driver or similar component to check the magnetic effect of solenoid.
  • Page 64 Troubleshooting ROBLEM AUSE CTION Machine will not steer 1. Malfunction of joystick toggle Check Fault codes 59 & 61. switch Remove and service the switch &/or joystick. 2. Faulty steering solenoid & Check that the solenoids at CT 1 are energised while the steering valve function is selected.
  • Page 65 Troubleshooting 4.3 H YDRAULIC YSTEM YDRAULIC UNCTION ABLE UNCTION OCATION Front face of block Directional control valve - Steering Moves steering rod to left or right (double solenoid) Turns mast assembly Front face of block Directional control valve - Slew left or right (double solenoid) Diverts oil to either the drive or lift part of...
  • Page 66 Troubleshooting UNCTION OCATION Automatically limits the pressure in the Left hand face of block CT22 Pressure reducing valve brake chamber to 25 bar regardless of (Hex head) the operating pressures Switches between series and parallel Left hand face of block CT23 Series/Parallel poppet valve connection of the motors (Single Solenoid)
  • Page 67 Troubleshooting Figure 4-1: Manafold Block with Valve Location...
  • Page 68 Troubleshooting 4.4 E LECTRICAL ROUBLESHOOTING ABLE OMPONENT LARM ATTERIES ATTERY HARGER 5 AMP C IRCUIT REAKER 175 AMP F OTOR ONTROL OTOR HASSIS MERGENCY WITCH HASSIS WITCH LATFORM MERGENCY WITCH NTERLOCK WITCH PQ C ONTROL ANDLE EIGHT IMIT WITCH LATFORM TEERING WITCH ENSOR...
  • Page 69 ODES NTRODUCTION The MB20N-26 is equipped with a fault detection system. If you have a faulty component, bad electrical connection or start up error a fault code will be displayed on the read out located on the upper control box.
  • Page 70 Troubleshooting AULT UMMARY 01 - System initialization error 02 - System communication error 03 - System overload error 22 - Platform Left Turn Switch ON at power-up 23 - Platform Right Turn Switch ON at power-up 24 - Platform Rotate Lift Switch ON at power-up 25 - Platform High Speed Drive Switch ON at power-up 26 - Platform Mast Switch ON at power-up 27 - Platform Low Speed Drive Switch ON at power-up...

  • Page 71: Table Of Contents

    Schematics 5. Schematics NTRODUCTION This section contains electrical and hydraulic schematics and associated information for maintenance and fault finding purposes. ONTENTS Hydraulic Schematic Electrical Schematic J1 Harness Schematic J1 Harness Information J1 Harness Assembly J2 Harness Schematic J2 Harness Information J2 Harness Assembly 5 - 1...
  • Page 72 Schematics 0.1 S CHEMATICS 5 - 2...

  • Page 73: Electrical Schematic

    Schematics Electrical System Schematic 5 - 3...

  • Page 74: J1 Harness Schematic

    Schematics J1 Harness Schematic 5 - 4...

  • Page 75: J1 Harness Information

    Schematics J1 Harness Infomation 5 - 5...

  • Page 76: J1 Harness Assembly

    Schematics J1 Harness Assembly 5 - 6...
  • Page 77 Schematics 5 - 7...

  • Page 78: J2 Harness Information

    Schematics J2 Harness Information 5 - 8...

  • Page 79: J2 Harness Assembly

    Schematics J2 Harness Assembly 5 - 9...
  • Page 80 Schematics 5 - 10...
  • Page 81 Hydraulic Tank _______________________________ 4 is necessary to first identify the machine type Hydraulic Pump-Motor Unit _____________________ 5 in question, i.e. Slew Bearing ________________________________ 6 • MB20N Steering Assembly ____________________________ 7 Pothole Assembly ____________________________ 9 • MB26 Wheel Assembly ____________________________ 11...
  • Page 82 Illustrated Parts List MB20 HASSIS SSEMBLY ESCRIPTION 500715-000 Chassis Weldment Front Wheel Assembly Steering Assembly Pothole Assembly 500840-002 Chain Side Plate - LH Hydraulic Assembly Rear Wheel Assembly 501599-000 Pump/Motor Unit 501234-000 Hydraulic Tank Electrical Assembly 500840-001 Chain Side Plate - RH Slew Bearing Assembly 501212-000 Chassis Energy Chain...
  • Page 83 Illustrated Parts List MB26 HASSIS SSEMBLY ESCRIPTION 500715-001 Chassis Weldment Front Wheel Assembly Steering Assembly Pothole Assembly 500840-002 Chain Side Plate - LH Hydraulic Assembly Rear Wheel Assembly 501599-000 Pump/Motor Unit 501234-000 Hydraulic Tank Electrical Assembly 500840-001 Chain Side Plate - RH Slew Bearing Assembly 501212-000 Chassis Energy Chain...
  • Page 84 Illustrated Parts List YDRAULIC ESCRIPTION 500728-000 Tank Weldment 500728-001 Inspection Lid & Gasket 057534-000 Filler Breather Cap 057532-000 Filter Body 058074-000 Filter Cartridge 057108-000 Drain Plug 057533-000 Hydraulic Oil ISO VG46 20 l. 058359-000 Suction Filter 6 - 4...
  • Page 85 Illustrated Parts List YDRAULIC OTOR ESCRIPTION 501599-001 Electric Motor 058862-000 Hydraulic Pump Complete 058862-001 Pump Seal Kit 058847-000 Drive Coupling 501232-002 Pressure Port Adaptor Kit 501232-003 Suction Port Adaptor Kit 058114-000 Fixing Clip (Hose Clip) 501757-000 Brushes (not shown) 6 - 5...
  • Page 86 Illustrated Parts List EARING ESCRIPTION 500284-000 Worm Drive Unit 500285-000 Hydraulic Motor 058480-070 Bolt, M16 x 70mm 058480-100 Bolt, M16 x 100mm 500281-000 Washer Item 3 secures slewing ring to the mast assembly Item 4 secures slewing ring to the chassis 6 - 6...
  • Page 87 Illustrated Parts List TEERING SSEMBLY MB20 MB26 ESCRIPTION ESCRIPTION 500782-000 Steering Cylinder 500782-001 Steering Cylinder Flanged Bush Flanged Bush 501340-000 501340-000 (FMB 1509DU) (FMB 1509DU) 501227-000 Pivot Pin 501227-000 Pivot Pin 500727-000 Link Arm Weldment 500727-000 Link Arm Weldment 501056-000 Circlip (15mm External) 501056-000 Circlip (15mm External)
  • Page 88 Illustrated Parts List TEERING YLINDER MB20 MB26 500782-000 500782-001 ESCRIPTION ESCRIPTION Cylinder Body Cylinder Body Washer Tab Washer Tab Body End Cap Body End Cap 500460-000 Seal Kit 500460-000 Seal Kit Cylinder Rod Cylinder Rod 6 - 8...
  • Page 89 Illustrated Parts List OTHOLE SSEMBLY MB20 MB26 ESCRIPTION ESCRIPTION 500726-002 Pothole Weldment - LH 500726-002 Pothole Weldment - LH 500726-003 Pothole Weldment - RH 500726-003 Pothole Weldment - RH 500783-000 Pothole Cylinder 500783-001 Pothole Cylinder 501056-000 Circlip 501056-000 Circlip 501226-001 Pivot Pin 501226-001 Pivot Pin...
  • Page 90 Illustrated Parts List OTHOLE YLINDER MB20 - 500783-000 MB26 - 500783-001 ESCRIPTION ESCRIPTION Cylinder Body Cylinder Body Washer Tab Washer Tab Body End Cap Body End Cap 500459-000 Seal Kit 500459-000 Seal Kit Cylinder Rod Cylinder Rod Piston Head Piston Head Locknut Locknut Washer...
  • Page 91 Illustrated Parts List RONT HEEL SSEMBLY IGHT Item Part No. Description Item Part No. Description 501625-000 Front Wheel 501625-000 Front Wheel 501233-000 Wheel Motor 501233-001 Wheel Motor 501430-000 Straight Swivel Fitting 501430-000 Straight Swivel Fitting 501068-001 Swivel Fitting - Long 501068-001 Swivel Fitting - Long 501066-000...
  • Page 92 Illustrated Parts List HEEL SSEMBLY Item Part No. Description Qty. Not a Serviceable Part 501577-000 Roll Pin 501657-000 Oil Seal Bearing Wheel Hub 056069-030 Washer 508241-000 Castle Nut 501658-000 Hub Cap 501625-001 Rear Wheel 500790-002 Wheel Nut 6 - 12...
  • Page 93 Illustrated Parts List MB20 SSEMBLY 500861-000 Jib Mount Cover Plate Item Part No. Description Qty. 500871-001 Slide Channel 500717-000 Mast #1 Weldment 500882-000 Slide Channel Cover 500718-000 Mast #2 Weldment 501550-000 Energy Chain Weldment 500719-000 Mast #3 Weldment 500875-000 Lower Guide Trunking 500720-000 Mast #4 Weldment 501274-000...
  • Page 94 Illustrated Parts List MB26 SSEMBLY 500861-000 Jib Mount Cover Plate Item Part No. Description Qty. 500871-003 Slide Channel 500717-000 Mast #1 Weldment 500882-001 Slide Channel Cover 500718-000 Mast #2 Weldment 501211-000 Mast Energy Chain (50 L) 500719-000 Mast #3 Weldment 500871-002 Slide Channel 500720-001...
  • Page 95 Illustrated Parts List MB20 501659-000 MB26 501659-001 Item Part No. Description Qty. Item Part No. Description Qty. 500820-000 Lower Slide 10mm 500820-000 Lower Slide 10mm 500820-001 Upper Slide 10mm 500820-001 Upper Slide 10mm 500820-003 Upper Slide 11mm 500820-002 Lower Slide 10mm 501299-000 Lower Slide 26mm 500820-003...
  • Page 96 Illustrated Parts List MB20 SSEMBLY Item Part No. Description Qty. Item Part No. Description Qty. 501388-000 Mast Cover Bracket 500717-000 Mast #1 Weldment 500885-000 Bottom Hose Guide 501575-000 Battery Indicator 501381-000 Lever Hand Actuator 501598-000 Indicator Mounting Plate 501451-000 Lever Actuator Cover 501422-000 Tie-Down Plate LH 501473-000...
  • Page 97 Illustrated Parts List MB26 SSEMBLY Item Part No. Description Qty. Item Part No. Description Qty. 501388-000 Mast Cover Bracket 500717-000 Mast #1 Weldment 500885-000 Bottom Hose Guide 501575-000 Battery Indicator 501381-000 Lever Hand Actuator 501598-000 Indicator Mounting Plate 501451-000 Lever Actuator Cover 501422-000 Tie-Down Plate LH 501473-000...
  • Page 98 Illustrated Parts List (BL666) OWER HAIN ROUP Item Part No. Description Qty. 501307-000 Chain Anchor Block 501301-000 Anchor Pin 500858-000 Knob 501563-025 Split Pin 501209-000 BL666 Chain (Complete) 501247-030 Socket Head Screw 056021-012 Spring Washer 501310-000 Tensioner Fork 501323-001 BL666 Brace 501302=000 Tensioner Pin 501244-012...
  • Page 99 Illustrated Parts List (BL566) NTERMEDIATE HAIN ROUP Mast #3 Item Part No. Description Qty. 501311-000 Anchor Block 501304-000 End Pin 501244-012 Split Pin 501208-000 BL566 Chain (Complete) 058492-025 Hex Hd Screw 056069-008 Washer 500860-016 Roll Pin 501314-000 BL666 Dual Pulley 501064-000 Bushing 501303-000...
  • Page 100 Illustrated Parts List (BL444) (MB26 HAIN ROUP ONLY Item Part No. Description Qty. 501312-000 Anchor Block 501305-000 Anchor Pin 501244-012 Split Pin 501207-000 BL444 Chain (Complete) 058492-020 Hex Hd Screw M8 056069-008 Washer M8 500860-016 Roll Pin 501064-000 Bushing 501303-001 Pulley Axle 501321-000 Pulley Mount...
  • Page 101 Illustrated Parts List EQUENCE TRAPS MB20 MB26 Item Part No. Description Qty. Item Part No. Description Qty. Strap Clip Upper 500851-000 500851-000 Strap Clip Upper 500850-000 Strap Clip Lower Strap Clip Lower 500850-000 501287-000 Roller Support Block Roller Support Block 501287-000 500852-000 Strap Clip Shaft...
  • Page 102 Illustrated Parts List YLINDER OUNTING Item Part No. Description Qty. 500838-000 Anchor Block 058503-060 Socket Hd Screw M8 500784-000 Stand Pipe Adaptor 057033-000 Circlip (External) 501324-000 Anchor Pin 500780-000 Lift Cylinder Assembly 058480-100 Hex Hd Bolt 056064-016 Lock Nut M16 501445-001 Cylinder Mount Assembly 500864-000...
  • Page 103 Illustrated Parts List YLINDER MB20 Item Part No. Description Qty. Body End Block 058728-000 Over-Centre Valve 501664-000 Seal Kit Collar Locking Washer Cylinder Body Washer Tab Rod End Cap Cylinder Rod Piston Head Cap Piston Head Nylock Nut Washer Circlip 500397-000 Emergency Lowering Valve MB26...
  • Page 104 Illustrated Parts List & C SSEMBLY INCLUDING VERLOAD MB20 MB26 Item Part No. Description Qty. Item Part No. Description Qty. Pivot Pin (Jib Mount) Pivot Pin (Jib Mount) 501231-000 501231-000 Jib Cylinder Assembly Jib Cylinder Assembly Upper Control Box Mounting Upper Control Box Mounting 500761-000 500761-000...
  • Page 105 Illustrated Parts List & C SSEMBLY 6 - 25...
  • Page 106 Illustrated Parts List YLINDER MB20 - 501480-000 MB26 - 501480-001 Item Part No. Description Qty. Item Part No. Description Qty. Cylinder Body Cylinder Body 501483-000 Hydraulic Valve 501483-000 Hydraulic Valve Rod End Cap Rod End Cap 501662-000 Seal Kit 501662-000 Seal Kit 058819-001 Grease Nipple M8...
  • Page 107 Illustrated Parts List OWER ONTROL ANEL Item Part No. Description Qty. 501871-000 PCB Assembly 501867-000 Emergency Stop Button 508033-000 Contact Block K12 Switch Actuator Ground Control Panel 501872-000 Rocker Switch Wire Harness 502506-000 Overlay 6 - 27...
  • Page 108 Illustrated Parts List LATFORM ONTROLS ANEL Item Part Description Qty. 502453-000 CIRCUIT BOARD 501866-000 KEY SWITCH 501867-000 EMERGENCY STOP BUTTON 503291-000 DECAL 501881-000 ENCLOSURE 501882-000 JOYSTICK 501882-002 JOYSTICK BOOT 501882-001 JOYSTICK STEERING BOOT 501866-001 6 - 28...
  • Page 109 Illustrated Parts List ECU A SSEMBLY 501243-003 Item Part No. Description Qty. 501871-000 PCB Assembly 501867-000 Emergency Stop Button 508033-000 Contact Block K12 Switch Actuator Ground Control Panel 501872-000 Rocker Switch Wire Harness 502506-000 Overlay 6 - 29...
  • Page 110 Illustrated Parts List LECTRICAL YSTEM AYOUT 6 - 30...
  • Page 111 Illustrated Parts List 501471-000 YDRAULIC ALVE ANIFOLD Item Part No. Description Qty. Item Part No. Description Qty. 058722-001 Relief Cartridge CT12-13 501532-000 O/Centre Cartridge CT8-9 058722-002 Relief Cartridge CT10 501484-000 Check Cartridge CT16-26-30 058722-003 Relief Cartridge CT11 501534-000 Shuttle Cartridge CT17 058723-000 Solenoid Cartridge CT1 501535-000 Hand Pump CT19 058726-002 Solenoid Cartridge CT2-6...
  • Page 112 Illustrated Parts List YDRAULIC OMPONENT SSEMBLY MB20N Hydraulic Assembly MB26 Hydraulic Assembly Item Part No. Description Qty. Item Part No. Description Qty. 501233-000 Wheel Motor L/H 501233-000 Wheel Motor L/H 501367-000 Hydraulic Hose 501371-000 Hydraulic Hose 501368-000 Hydraulic Hose 501372-000 Hydraulic Hose...
  • Page 113 Illustrated Parts List YDRAULIC OMPONENT SSEMBLY 6 - 33...
  • Page 114 Illustrated Parts List ATER YSTEM Item Part No. Description Qty. 501624-000 BATTERY WATER CONTAINER 501630-000 PVC HOSE (10m m ) 501632-000 SUBMERSIBLE PUMP 501627-000 BATTERY WATER REFILL 501666-000 PVC HOSE 10m m X 30m m LG 501628-000 WATER FLOW INDICATOR 501631-000 PVC HOSE (10m m ) 501629-000...
  • Page 115 Illustrated Parts List OVERS Chassis Cover MB20 Chassis Cover MB26 Chassis Cover Item Part No. Description Qty. Item Part No. Description Qty. 501202-001 Front Chassis Cover 501202-003 Front Chassis Cover 500409-001 Captive Screw 500409-001 Captive Screw 500409-003 Captive Screw Recepticle 500409-003 Captive Screw Recepticle 501202-002 Rear Chassis Cover 501202-000 Rear Chassis Cover...
  • Page 116 058531-000 Lift/Tow Point 058531-000 Lift/Tow Point 058538-000 Hazards Decal 058532-000 Hydraulic Fluid 057426-000 Harness Attachment 058530-000 Meets ANSI 92.5 057425-001 Instructions Enclosed 057434-000 Only UpRight Components 057424-001 Crushing Hazard 058533-000 Do Not Adjust Switches 058534-000 Batteries are Ballast 6 - 36...
  • Page 117 Illustrated Parts List MB20 ECALS MB20N English (Euro) MB20N French Item Part No. Description Qty. Item Part No. Description Qty. 501345-001 MB20 Cage Decal 501345-000 MB20 Cage Decal 501343-000 MB20 Ballast Cover Decal 501343-000 MB20 Ballast Cover Decal 501344-000 Mast Boom Decal 501344-000 Mast Boom Decal 057392-000 S.W.L.
  • Page 118 Illustrated Parts List ECALS 6 - 38...
  • Page 119 Illustrated Parts List...
