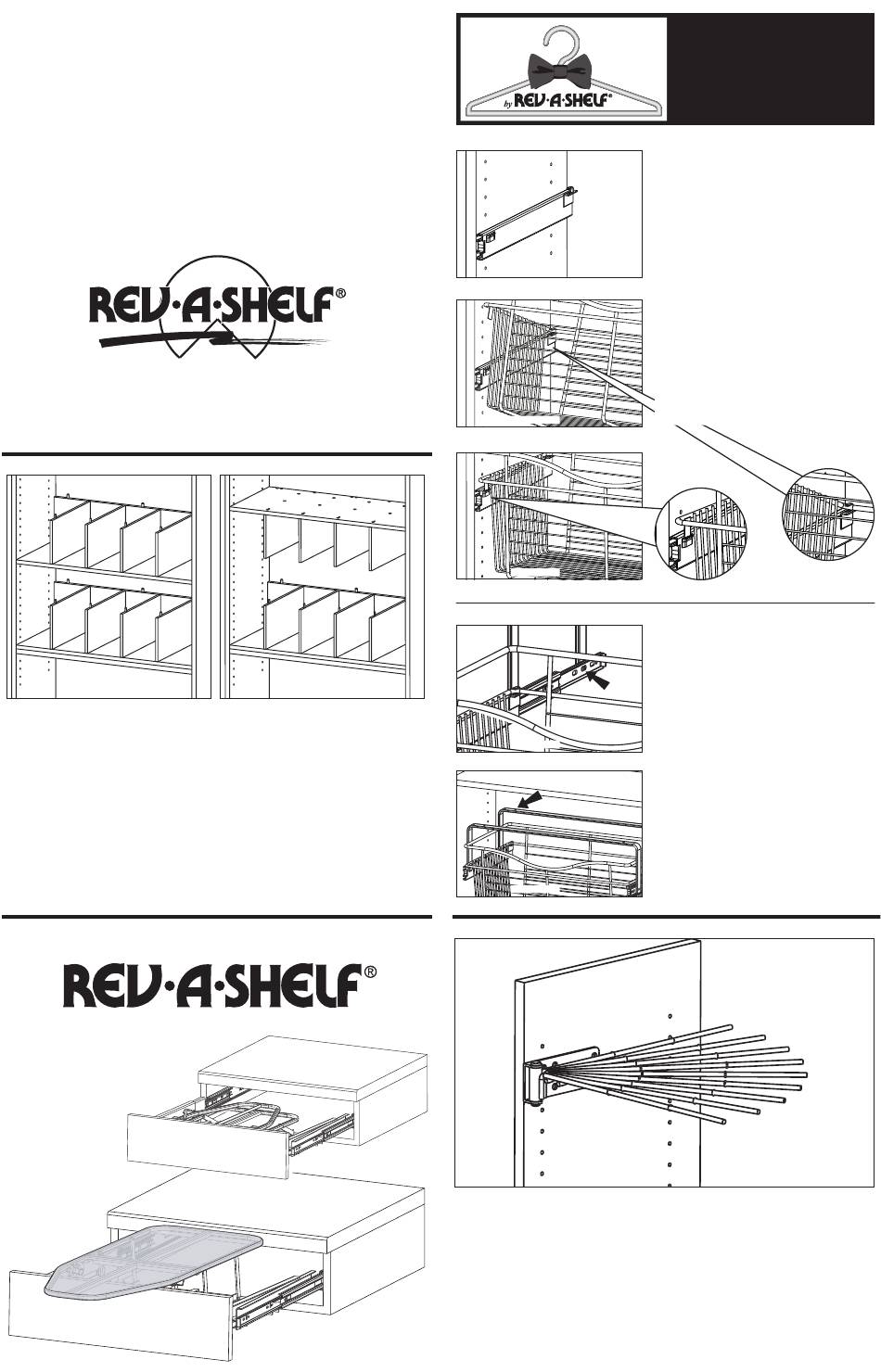

Rev-A-Shelf Closet Installation Instructions

For more information about these products and many
of our other innovative storage solutions,
visit www.rev-a-shelf.com or call (800) 626-1126.
I-CLOSET
Figure 1
Wood Shoe and Purse Organizers
The wood shoe and purse organizers are designed to be used in closet systems with 24",
30" and 36" between partitions. They can be stacked in two manners, one allows for large
openings suitable for purses, and boots. The other is suitable for shoes, and smaller items.
When stacking in either direction use the supplied dowel pins to align the organizer
partitions both vertically, and horizontally. See Figures 1 and 2.
Another Great Closet Product By
The Pull-Out Ironing Board!
Rev-A-Shelf's unique
Pull-Out Ironing Board can be
retro fitted and folds away
neatly into the space of a drawer.
Simply open, unfold,
and the board rises
automatically with a
locking device that
keeps the board in
place and even with
the counter top.
10/06
Figure 2
Fan Pants Rack
1.
2.
3.
Note: Mounting bracket may be reversed for right or left handed installation.
Figure 1
Figure 2
Figure 3
Figure 1
Figure 2
Position Pants Rack where desired.
Use (2) Euro Screws to mount in closet system holes.
Complete installation by using #8 x ½" screws in remaining 4 holes.
ClOSeT
InSTAllATIOn
InSTRuCTIOnS
Closet Wire Baskets
1. Position ball bearing slide where
desired in closet
2. Align front of slide with front of closet
panel as shown in Figure 1.
If the system holes align properly with
holes in the slide, use Euro screws to
attach the slide, if not, use #8 x ½"
flat head screws.
3. Position and install other slide.
4. Place back wire of basket into hook on
left and right slide as shown in Figure 2.
5. Pivot the basket down so that the tabs
on the basket are inserted into the slots
in the slides as shown in Figure 3.
Top Mounting Bracket
Assembly
1. Align top mounting bracket with basket
slides as shown in Figure 1. Attach using
the 8 included flat head machine screws.
Installation
2. Position mounting bracket/slide assembly
under fixed shelf as shown in Figure 2.
Attach to the bottom side of
the closet shelf using #8 x ½ screws.
