CVRI SERIES WITHOUT DRILL GUIDE
1/2"
10 MIN
Clean with a damp cloth and
wipe parts dry.
1. Using a 1/2" drill bit drill
a hole at least 7" deep
Note: It is highly recommended

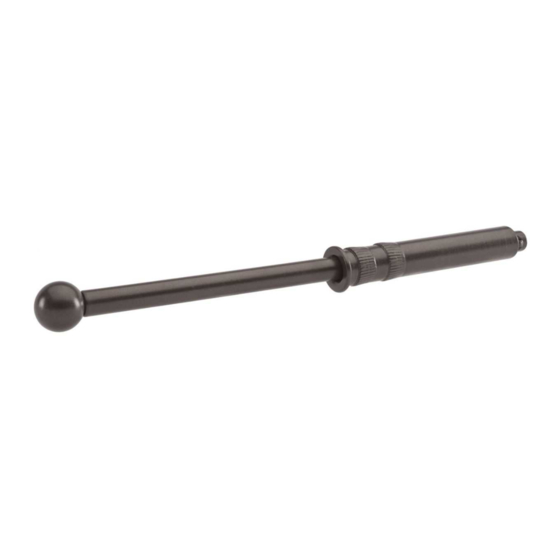

2. Insert valet rod
to use Rev-A-Shelf's drill bit and
guide for accurate installation,
see other side for details.
(CVRI-DG, Sold Seperately)
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
I-CVRI-0417
