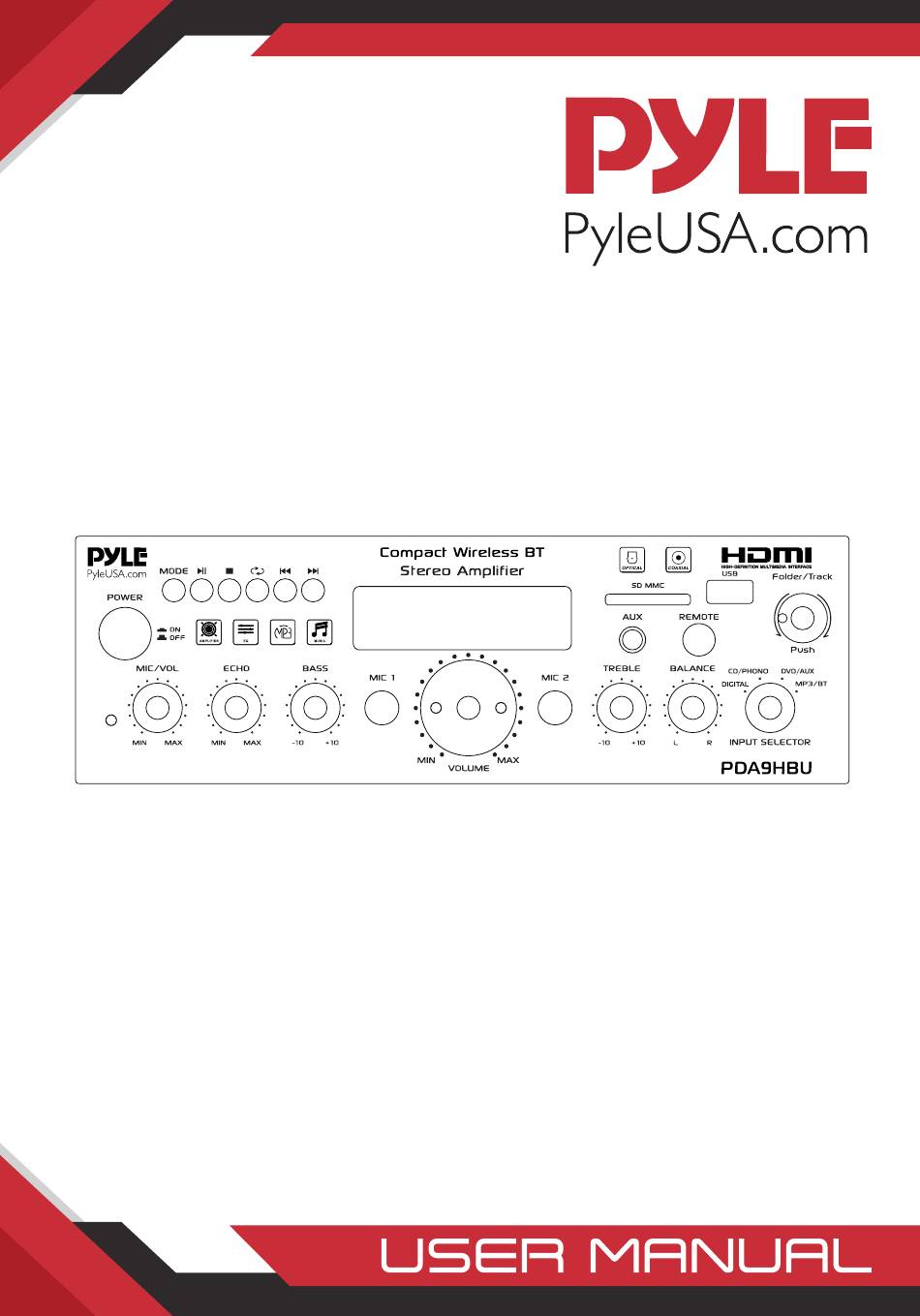

- Page 1 PDA9HBU Compact Wireless BT Streaming Stereo Amplifier Optical/Phono/Coaxial/FM Radio/Microphones/ USB & SD Memory Card Readers, HDMI Inputs/Outputs with Digital LCD Display (200 Watt)
- Page 2 WARNING! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS”...
- Page 3 Introduction To get the most from our PDA9HBU, it is recommended that you review all of the information provided in the instruction manual before operating the equipment. ATTENTION 1.
-
Page 4: File Format
3. FM RADIO • Connect the FM antenna before using the FM radio. • Press MODE button on the front panel to select FM mode. Press PLAY button to search available stations. 4. REMOTE CONTROL Remote control gives you commanding access only to USB/SD, Wireless BT and FM functions and not the Master volume, microphone, bass, treble and other functions. -
Page 5: Control Panel Button
6. USB PORT The USB port is only used for playing audio les on your USB ash drive. DO NOT use it for power supply as it may damage the unit. 7. CONTROL PANEL BUTTON A. These buttons are only used to control the USB/SD, Wireless BT and FM functions and doesn’t control other functions. -
Page 6: Front & Back Panel
A. Press MODE button under the ID3 display screen and enter into BT mode. B. Search for the wireless BT device and nd the BT name “PDA9HBU” C. Select the PDA9HBU BT name and wait for the device to pair. The screen will display “SEARCHING”. - Page 7 Use the other controls, play/pause, stop, repeat (ALL/NORMAL/SINGLE/FOLDER/ RANDOM/BROWSE), previous track & next track to play audio from the USB ash drive/SD Card or Wireless BT. NOTE: The USB input is ONLY meant to connect to a USB ash drive (thumb drive). Connecting a MP3 player or computer directly to the USB ash drive input will result the unit failing to play audio from those devices.
- Page 8 ash drive/SD Card. Press the knob to begin playing the desired track. First the tracks on the root le will be displayed and then the tracks that are in folders. • Press this knob to activate the folder searching function. Once pressed the word “FOLDER”...
-
Page 9: Remote Control
23. OPTICAL INPUT: Inputs optical digital signal, only support PCM format. 24. COAXIAL INPUT: Inputs coaxial digital signal, only support PCM format. 25. BT ANTENNA: Please pull the antenna out when using Bluetooth input. 26. SPEAKER OUTPUT: Connect your speaker system to these terminals. 27. - Page 10 PDA9HBU COMPACT WIRELESS BT STREAMING STEREO AMPLIFIER Optical/Phono/Coaxial/FM Radio/Microphones/USB & SD Memory Card Readers, HDMI Inputs/Outputs with Digital LCD Display (200 Watt) Features: • Wireless BT/USB/SD/FM player • Phono/Optical/Coaxial Digital Signal Inputs • HDMI Signal Inputs and Outputs • Desktop Audio Mini Power Ampli er •...
- Page 11 Integrated Antenna for Extended Wireless Range • Works with All of Today’s Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.) • Wireless BT Version: 2.1 • Wireless BT Network Name: 'PDA9HBU' • Wireless Range: 40'+ Ft. What’s in the Box: • Desktop Stereo Ampli er •...
