PDA63BT
Wireless BT Streaming Amplifier
Multi-Channel 200Watt Power, Home Audio Receiver System
with FM Radio, BT, USB/SD, AUX, RCA, Mic-in, BT&FM Antenna

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDA63BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyle PDA63BT

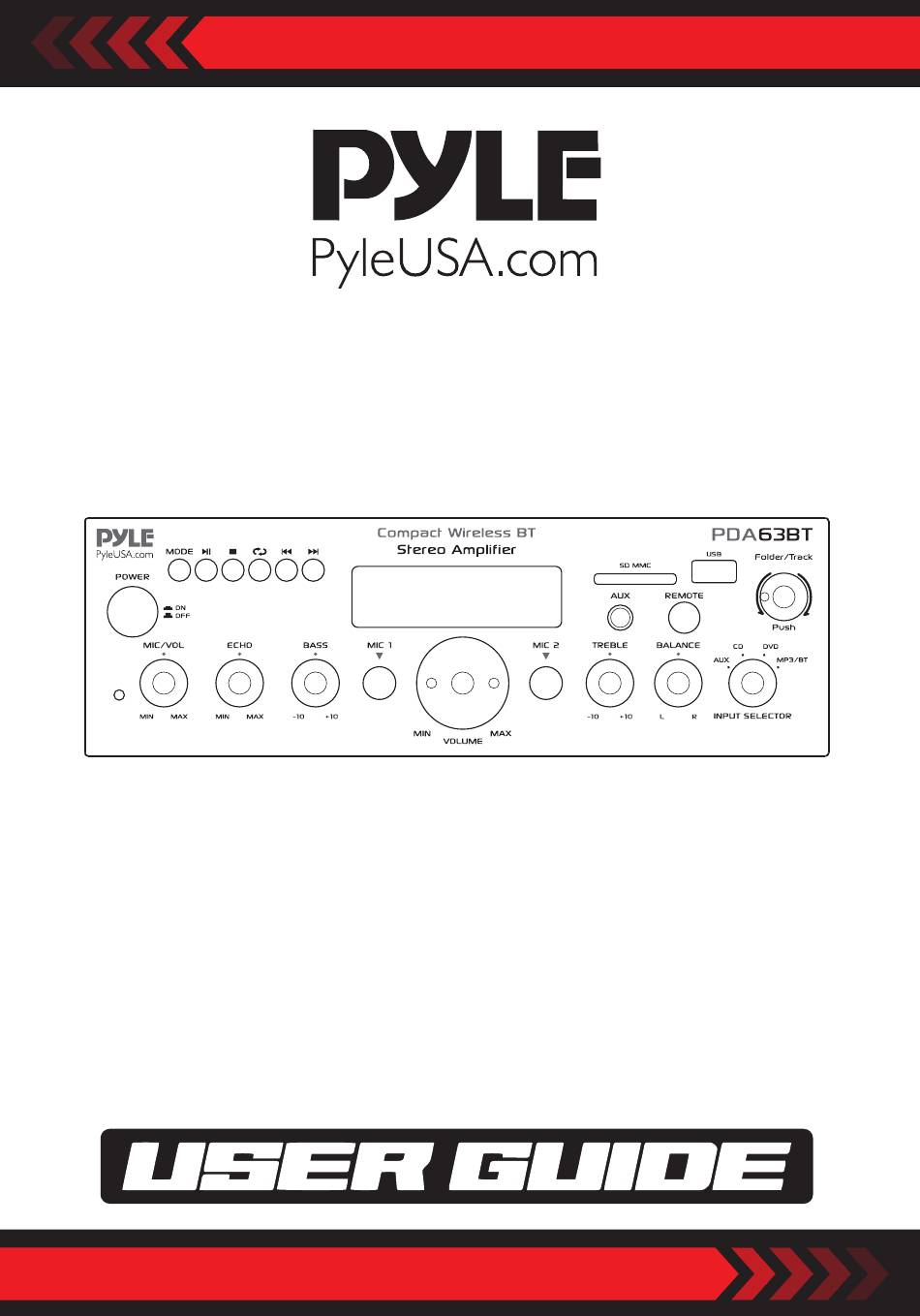

  • Page 1 PDA63BT Wireless BT Streaming Amplifier Multi-Channel 200Watt Power, Home Audio Receiver System with FM Radio, BT, USB/SD, AUX, RCA, Mic-in, BT&FM Antenna...
  • Page 2 WARNING! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS”...
  • Page 3 14. Before placing, installing, rigging, or suspending any product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed, or non-load rated component could signi cantly reduce the strength of the installation, placement or array. Any such condition severely reduces the safety of the installation and should be immediately corrected.
  • Page 4: File Format

    3. STEPS FOR FM RADIO CONTROL A. Connect the FM antenna before using the FM radio. B. Press MODE button on the front panel or remote control to select FM mode. C. Press PLAY/PAUSE button on the front panel or remote control, and will auto scan and sore FM Radio station from 87.5Mhz to 108Mhz.
  • Page 5: Control Panel Button

    6. USB PORT The USB port is only used for playing audio les on your USB ash drive. DO NOT use it for power supply as it may damage the unit. 7. CONTROL PANEL BUTTON A. These buttons are only used to control the USB/SD, Wireless BT and FM functions and doesn't control other functions.

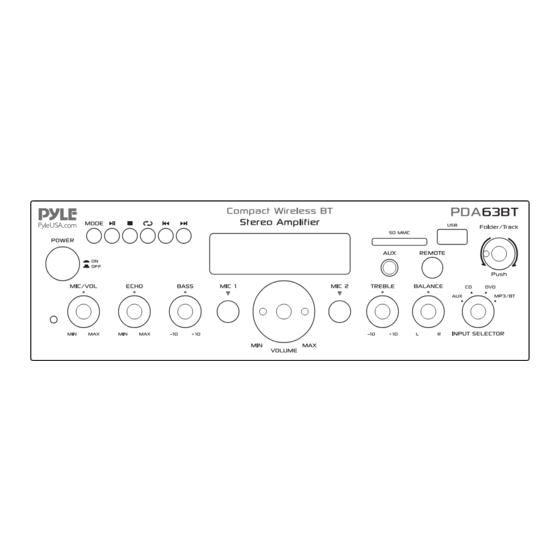

  • Page 6: Front & Back Panel

    FRONT & BACK PANEL 1. USB/SD Card/Wireless BT Control Console After inserting a USB ash drive/SD Card into the input terminal, be sure to set the input selector (13) to USB/SD, then press the mode button to choose between audio from the USB port, SD Card input, Wireless BT or FM radio. If you want to use the Wireless BT, check the below steps.
  • Page 7 NOTE: The USB input is ONLY meant to connect to a USB dash drive (thumb drive). Connecting a MP3 player or computer directly to the USB ash drive input will result the unit failing to play audio from those devices. 2.
  • Page 8 3. Track/ Folder Searching Knob • Turn this knob clockwise to search through all of the tracks inside the USB flash drive/SD Card. Each track will appear by the name of the track. It will show the tracks or folders chronologically (from when the les were loaded onto the USB ash drive/SD Card.
  • Page 9 10. Balance: Control the volume balance from left to right. 11. Input Selector: Turn this button to choose the favorable input 12. MICROPHONE INPUTS: KARAOKE or EXTERNAL MIC connect to these jacks. 13. IPOD/MP3 JACK-IPOD/MP3 connects to this jack. 14. REMOTE RECEIVER: To receive the remote control signal 15.
  • Page 10: Remote Control

    REMOTE CONTROL 1. Press this button to chose the ID3 display model, will show TITLE/ARTIST/ALBUM/OFF. Hold this button for 5 second to turn ON or OFF the MP3. 2. When in the FM mode, press this two buttons to tune FM Frequency. 3.
  • Page 11 Features: • Fire and Smoke Safety Protection • High-Quality Ampli ed Audio • Perfect for Karaoke & Home Theater • Two 1/4" Microphone in for Karaoke • 2 Pairs RCA (L/R) for CD/DVD Player • FM Radio Station Auto-Search Scan •...
  • Page 12 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
