Summary of Contents for Pyle PDA8BU
- Page 2 WARNING! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS”...
-

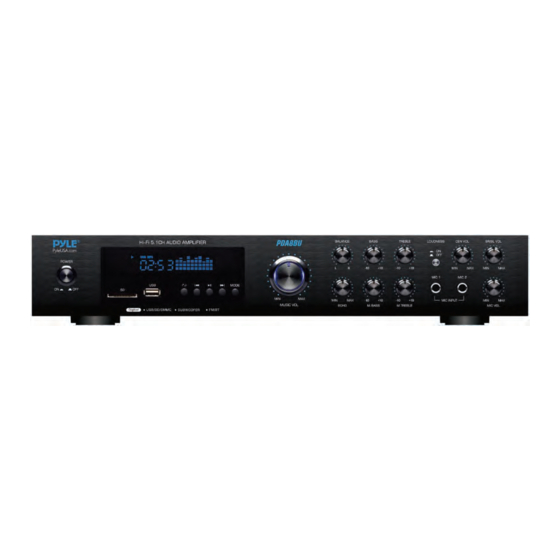

Page 3: Front & Back Panel
Introduction To get the most from the PDA8BU Multi-Channel Bluetooth Home Ampli er, it is recommended that you review all of the information provided in the instruction manual before operating the equipment. -
Page 4: Control Buttons
1. POWER ON/OFF SWITCH: Press this button to power ON/OFF the unit. 2. LED DISPLAY SCREEN: Displays the input sources and track time information. 3 SD CARD SLOT: Insert an SD card in this slot for playing Mp3 les. 4. USB PORT: Insert an USB mass storage device for playing Mp3 les. NOTE: The USB input is ONLY mean to connect to a USB ash drive (thumb drive). - Page 5 C. PLAY/PAUSE BUTTON: Each press of the PLAY/PAUSE BUTTON causes the operation to change from play to pause or from pause to play in the USB/SD mode or BLUETOOTH mode. • Press the PLAY/PAUSE BUTTON one time to auto scan all frequencies from 87.5MHz to 108MHz in FM mode, the unit will auto store the channels.
- Page 6 6. MUSIC VOLUME CONTROL KNOB: Turn this knob to adjust the master music volume. 7. BALANCE: Turn this knob to adjust the volume level of the L/R channel 8. BASS: Turn this knob to adjust the low frequencies level of music 9.
-
Page 7: Remote Control
REMOTE CONTROL 1. Press this button to turn ON or OFF the MP3 2. Press this button to select the playing mode, such as USB/SD/FM/BLUETOOTH 3. Press this button to mute the music 4. Press this button to select a preset sound e ect 5. - Page 8 Features: • 5.1 Genuine Channel Ampli er System • Big VFD screen display with Frequency level light • Built-in Bluetooth for Wireless Audio Streaming • Auto Scan, Memory, Radio Station PREVIOUS/NEXT Control • MP3 Digital Audio File Playback • SD Memory Card & USB Flash Drive Readers •...
- Page 9 Technical Specs: • RMS Power Output: 35W*2+20W+15W*2 RMS • Frequency Response: +/-3dB, 100Hz-20kHz • Impedance: 4/8/16 Ohm • T.H.D.: <1.0% • S/N Ratio: >90dB, Mic <80dB, Line>80dB • Microphone sensitivity: 10mV • USB/SD Flash Memory Support: Up to 32GB • Digital File-type Playback Support: MP3, WMA, WAV •...
- Page 10 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
