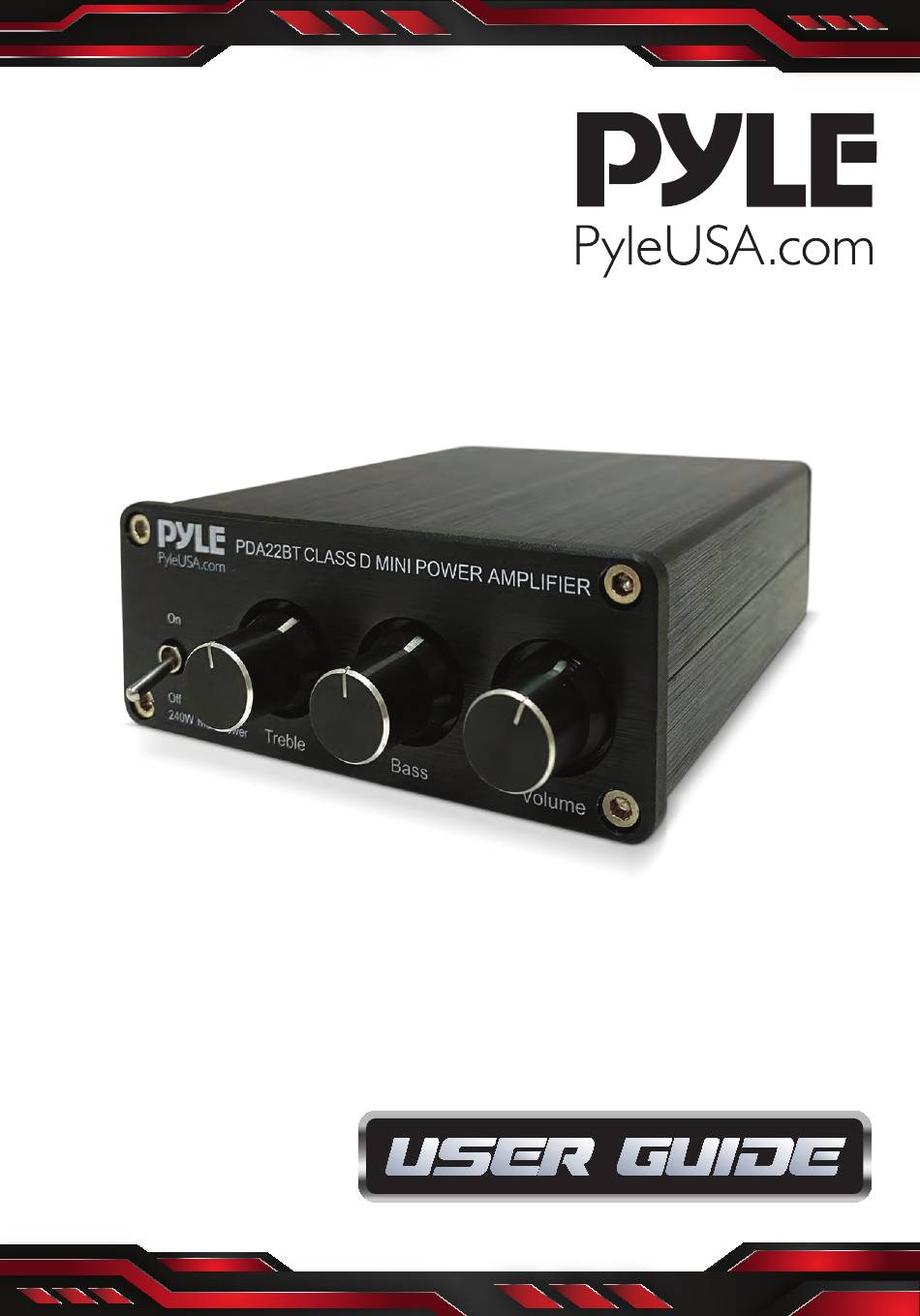

- Page 1 PDA22BT Desktop Wireless BT Audio Amplifier Compact Mini Blue Series Stereo Power Amplifier (2 x 100 Watt MAX)
- Page 2 Read through this user manual before using the product to ensure its correct use. Keep this manual for future reference. Quick Setup: Front Panel Rear Panel 1. Main Power ON Switch: Switch ON/OFF the ampli er by using this switch. 2.
- Page 3 Setup and pairing (Wireless BT ampli ers) are really easy. The following instructions will help you connect Audio Ampli ers to your music system or pair with your tablet, computer, or smartphone. 1. Connecting the Speaker Wire Audio stereo power ampli ers that will power one pair of passive speakers between 4 and 8 ohms (or subwoofer if you got the 2.1 CH amp or subwoofer amp).
-
Page 4: Operation
2. Connecting the Power Supply Be sure that the volume/power switch on the front panel is in the OFF position by rotating it counter clockwise. Connect the cable with the round end from the power supply to rear panel power connector. Connect the AC power cable from the power supply to a power outlet and verify that the indicator light on the power supply is illuminated. - Page 5 Features: • Compact and Powerful Mini Amp System • With bass and treble volume control • BT Receiver for Wireless Audio Streaming Ability • RCA (L/R) Audio Input • Connect & Stream Audio from External Devices • Banana Speaker L/R Terminals •...
- Page 6 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
