Summary of Contents for Pyle PDA69BU

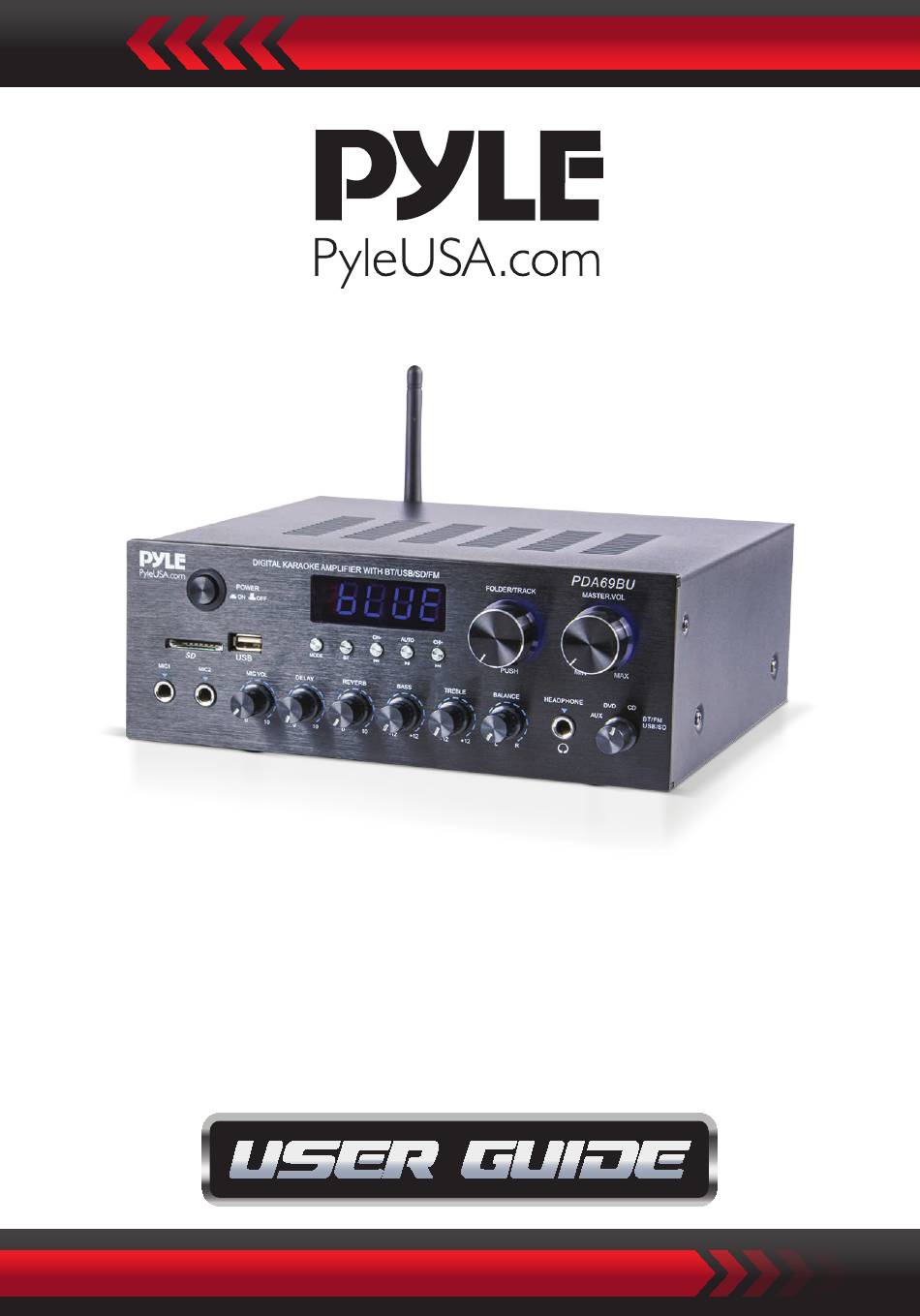

- Page 1 PDA69BU Stereo Amplifier Audio Receiver Sound System with Wireless BT Streaming, MP3/USB/SD/AUX/FM Radio...
- Page 2 WARNING! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS”...
- Page 3 1. A: Connect the audio input with the CD/DVD/TV audio output. NOTES: • PDA69BU does not support video signal, so make sure that the CD/DVD/TV AUDIO OUTPUT terminal are connected. • Noise will be heard when you connect the unit with CD/DVD/TV video output by mistake.
-
Page 4: File Format
3. STEPS FOR FM RADIO CONTROL A. Connect the FM antenna before using the FM radio. B. Press MODE button on the front panel or remote control to select FM mode. C. Press PLAY/PAUSE button on the front panel or remote control, and will auto scan and sore FM Radio station from 87.5Mhz to 108Mhz. -
Page 5: Control Panel Button
6. USB PORT The USB port is only used for playing audio les on your USB ash drive. DO NOT use it for power supply as it may damage the unit. 7. CONTROL PANEL BUTTON A. These buttons are only used to control the USB/SD, Wireless BT and FM functions and doesn't control other functions. -
Page 6: Front & Back Panel
FRONT & BACK PANEL 1. USB/SD Card/Wireless BT Control Console After inserting a USB ash drive/SD Card into the input port, be sure to set the input selector (14) to USB/SD, then press the mode button to choose between audio from the USB port, SD Card input, Wireless BT or FM radio. If you want to use the Wireless BT, check the below steps. - Page 7 NOTE: The USB input is ONLY meant to connect to a USB dash drive (thumb drive). Connecting a MP3 player or computer directly to the USB ash drive input will result the unit failing to play audio from those devices. 2.
- Page 8 3. Track/ Folder Searching Knob • Turn this knob clockwise to search through all of the tracks inside the USB flash drive/SD Card. Each track will appear by the number of the track. It will show the tracks or folders chronologically (from when the les were loaded onto the USB ash drive/SD Card.
-
Page 9: Remote Control
REMOTE CONTROL 1. Press this button to turn ON or OFF USB/SD/FM/BT. 2. When in the FM mode, press this two buttons to select FM station. 3. Press these two buttons to select the previous or next track in USB, SD or Wireless BT mode, to select previous or next station in FM model. - Page 10 Features: • HIFI 2.0 Channel Audio Amp Design • Wireless BT Audio Streaming Ability • USB Flash & SD Memory Card Readers • FM Radio with Big LED Display • Aux (3.5mm) Input Jack • Connect & Stream Audio from External Devices •...
- Page 11 Wireless BT Streaming Connectivity: • Built-in Wireless Music Streaming Receiver • Compatible with All of Your Favorite Wireless BT Devices (iPhone, Androids, Smartphones, iPad, Tablets, etc.) • Wireless BT Version: 5.0 • Wireless Range: 45’+ ft. Technical Specs: • RMS Power Output: 300 Watt x 2 @ 8 Ohm •...
- Page 12 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
Need help?
Do you have a question about the PDA69BU and is the answer not in the manual?
Questions and answers
When using with Tv and speakers Why can i not control volume with remote
The remote control for the Pyle PDA69BU only allows access to USB/SD, Wireless BT, and FM functions. It does not control the master volume, microphone, bass, treble, or other functions. Therefore, when using the amplifier with your TV and speakers, you must adjust the volume manually on the unit itself.
