PDA77BU
Compact Home Theater Amplifier Stereo
Receiver with Bluetooth Wireless Streaming, Independent Mic Echo
& Volume Control, MP3/USB/SD/AUX/FM Radio (800 Watt)
Please note that PYLEUSA reserve the right to make production changes during
the life of our product lines that may impact the information in this manual.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pyle PDA77BU
Summary of Contents for Pyle PDA77BU

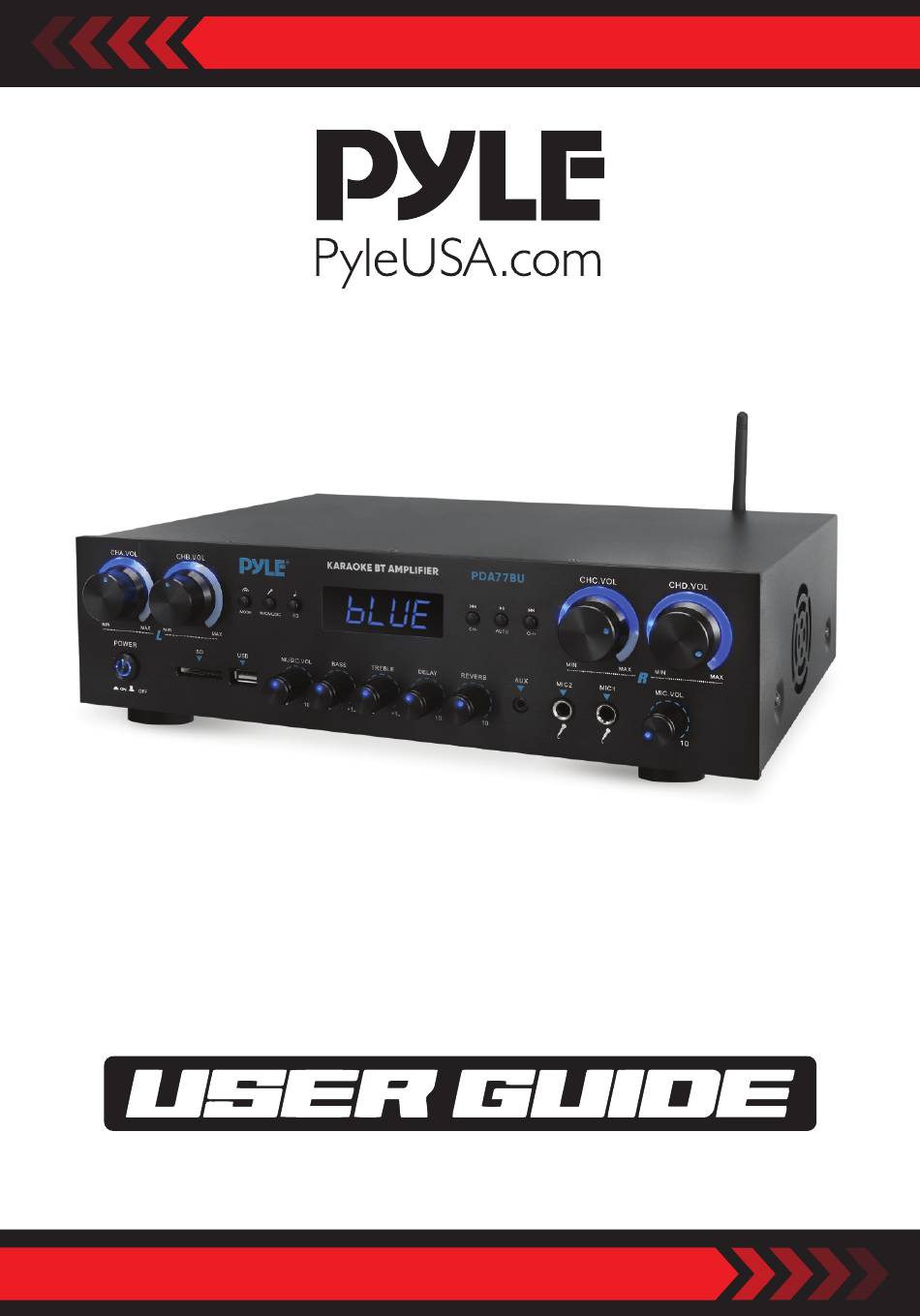

- Page 1 PDA77BU Compact Home Theater Amplifier Stereo Receiver with Bluetooth Wireless Streaming, Independent Mic Echo & Volume Control, MP3/USB/SD/AUX/FM Radio (800 Watt) Please note that PYLEUSA reserve the right to make production changes during the life of our product lines that may impact the information in this manual.
- Page 2 WARNING! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS”...
- Page 3 14. Before placing, installing, rigging, or suspending any product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed, or non-load rated component could signi cantly reduce the strength of the installation, placement or array. Any such condition severely reduces the safety of the installation and should be immediately corrected.
-
Page 4: Remote Control
4. REMOTE CONTROL Remote control gives you commanding access to USB/SD, Wireless BT, DVD, CD, AUX and FM functions. A. Please install two AAA battery before using the remote control, otherwise the remote control will not work. B. The buttons of HD1, HD2, OPTI and COAX don’t work in PDA70BU model. 1. -
Page 5: File Format
Doesn't work in HD1, HD2, OPTI and COAX working mode. 2. The buttons of HD1, HD2, OPTI and COAX doesn't work in PDA77BU model. 3. Switch to the USB or SD mode only after inserting USB Flash driver or SD Card. - Page 6 A. MODE BUTTON: Press this button to select one input from FM, USB, SD, BT, DVD, CD and AUX. Automatically plays the les after inserting a USB ash drive or SD card. B. MIC/MUSIC BUTTON: Press this button to select BASS/TREBLE Knob mode. A-ON: Turn Bass and Treble knobs to adjust the music frequencies.
- Page 7 d-- Press the PREV BUTTON or NEXT BUTTON to select previous radio channel or next radio channel. e-- Press the Numeric Keys on the Remote control to select radio channel or frequencies. Press two digits to directly select the radio station in the store. Press three or four digits to directly select the radio station frequency.
-
Page 8: Front & Back Panel
FRONT & BACK PANEL 1. Power Swtich: Press this Switch to turn the unit on and o . 2. LED Screen: All information regarding external media or this device will be displayed from this screen. 3. SD Card Reader: Plug your SD into this ports for using external media on this device. - Page 9 12. AUX Input: IPOD/MP3 JACK-IPOD/MP3 connects to this jack. 13. Microphone Reverb Depth Control Knob: Turn this knob to adjust the microphone Reverb Depth. 14. Microphone Delay time Control Knob: Turn this knob to adjust the microphone delay time. 15. Treble Control: Turn this knob to adjust the high frequencies of Music or Microphone (The MIC/MUSIC button controls the switching between music and microphone) 16.
- Page 10 Features: • Compact Home Theater Ampli er • 4 Channel Ampli er Design • FM Radio Receiver System • Built-in Bluetooth for Wireless Music Streaming • USB Flash Drive & SD Memory Card Readers • Front Panel Audio Control Center •...
-
Page 11: Bluetooth Connectivity
Bluetooth Connectivity: • Built-in Bluetooth for Wireless Music Streaming • Compatible with All of Today’s Latest Bluetooth Devices (iPhone, Androids, Smartphones, iPad, Tablets, Laptops, etc.) • Bluetooth Version: 5.0 • Bluetooth Network Name: ‘PyleUSA’ • Wireless Range: Up to 30’+ ft. •... - Page 12 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
Need help?
Do you have a question about the PDA77BU and is the answer not in the manual?
Questions and answers
Disconnecting bluetooth
To disconnect Bluetooth on the Pyle PDA77BU, press and hold the button for Bluetooth source input (such as the "4" button) for 3 seconds to switch to a different input mode. This will stop the Bluetooth connection.
This answer is automatically generated

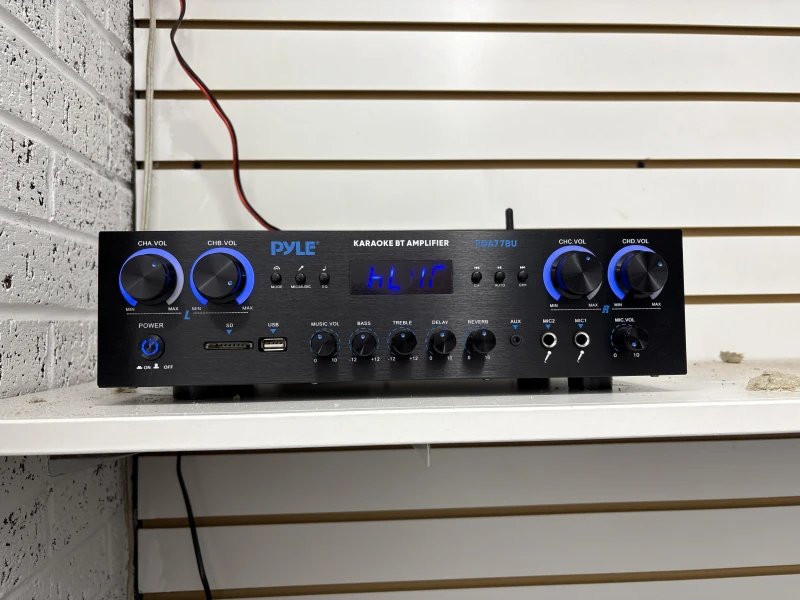

How do I connect to Bluetooth, it’s just stuck in blue on the display but phone is not detecting
