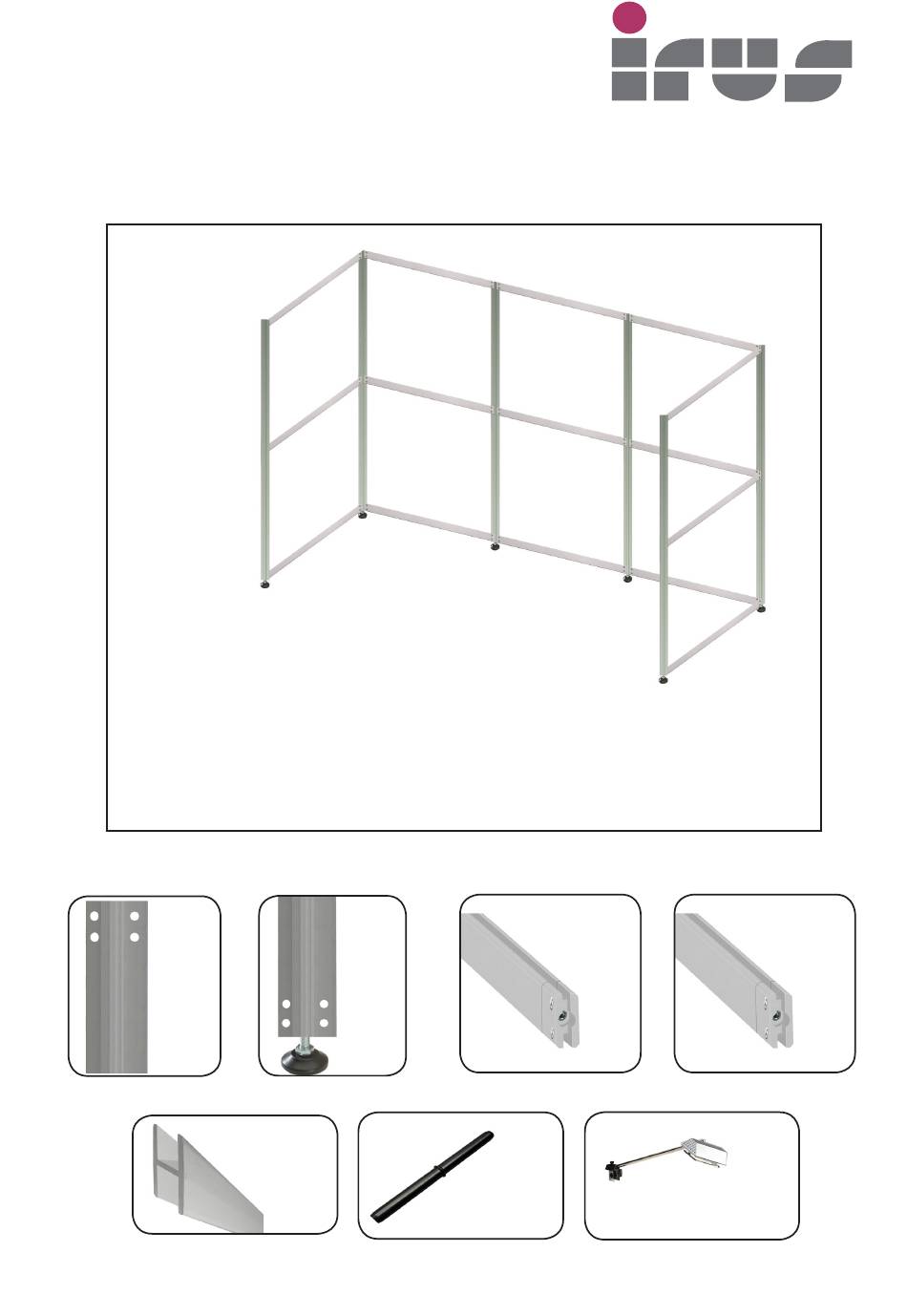

IRUS I101 Assembly Instructions

assembly instructions

for the exhibition stand I101

constisting of:

- 6x Aluminium profile à 1250 mm incl. bores

- 6x Aluminium profile à 1250 mm incl. adjustable foot and bores

- 10x Aluminium cross profile with pointed screws for the lower and upper mounting

- 5x Aluminium cross profile for the middle mounting

- 20x H-Profiles à 1200mm to stabilize the panels.

- 6x Extension bolt for aluminium profile

- 3x longarm lighting 450mm incl. replacement bulb

20x

System

10x

exhibition

Table of Contents

Need help?

Do you have a question about the I101 and is the answer not in the manual?

Page 1 System ® for the exhibition stand I101 exhibition constisting of: - 6x Aluminium profile à 1250 mm incl. bores - 6x Aluminium profile à 1250 mm incl. adjustable foot and bores - 10x Aluminium cross profile with pointed screws for the lower and upper mounting - 5x Aluminium cross profile for the middle mounting - 20x H-Profiles à...
Page 2 System ® exhibition Important during assembly Pointed screws must be used for all profiles that have holes. 1. Mounting the lower area of the 2. mount the middle cross profile. corner with the aluminium cross profile incl. pointed screws. 3. Further assembly of the lower 4.
Page 3 System ® exhibition 6. Mount the upper cross profiles 5. Slide the upper profiles over the incl. pointed screws extension bolts. Make sure that the boreholes are upwards. 7. Fully assembled exhibition stand. If necessary, compensate for uneven floors with the leveling feet.
