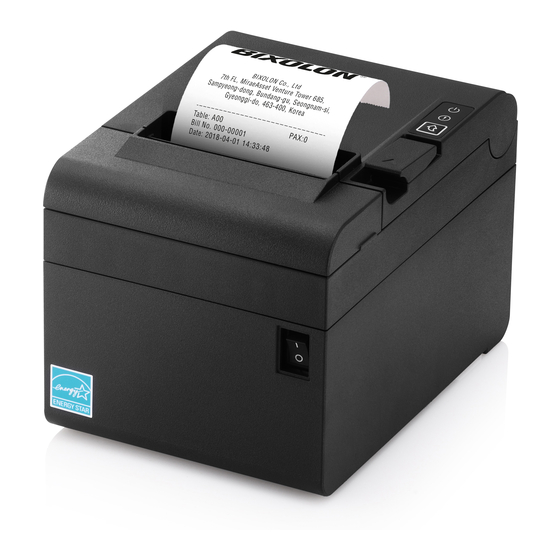

BIXOLON SRP-E302 Command Manual
  1. Manuals
  2. Brands
  3. BIXOLON Manuals
  4. Printer
  5. SRP-E302
  6. Command manual

BIXOLON SRP-E302 Command Manual

Hide thumbs Also See for SRP-E302:

Advertisement

Quick Links

Download this manual
SRP-E300/302
Command Manual
Ver. 1.01
http://www.bixolon.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRP-E302 and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON SRP-E302

Summary of Contents for BIXOLON SRP-E302

  • Page 1 SRP-E300/302 Command Manual Ver. 1.01 http://www.bixolon.com...
  • Page 2 SRP-E300/302 ■ Contents 1. Notice ........................................3 2. Control Commands List in Alphanumeric Order........................... 4 2-1 Command Description Items ................................6 2-2 Details of Control Commands ................................7 - 2 - BIXOLON Ver. 1.01...

  • Page 3: Notice

    BIXOLON Corporation. BIXOLON has no liability for loss or damage arising from or relating to your use of or reliance on the information in the document.

  • Page 4: Control Commands List In Alphanumeric Order

    ESC J Print and feed paper GS / Print downloaded bit image ESC L Select page mode GS : Start/end macro definition ESC M Select character font GS B Turn white/black reverse print mode on/off - 4 - BIXOLON Ver. 1.01...
  • Page 5 Print bar code GS r Transmit status GS v 0 Print raster bit image GS w Set bar code width BS M Select device font type Select cut mode and executes a BS V partial/full cut - 5 - BIXOLON Ver. 1.01...

  • Page 6: Command Description Items

    Range: Argument value (Setting range) for the command Default: Initial argument value for the command Description: Detailed command function description Remarks: Additional information about using the command Differences: Variations depending on the printer model - 6 - BIXOLON Ver. 1.01...

  • Page 7: Details Of Control Commands

    Remarks: ■ The horizontal tab position is set by <ESC> D. ■ With the underline mode turned on, the underline printing is not applied to the tab space created by this command. Differences: None - 7 - BIXOLON Ver. 1.01...
  • Page 8 This command prints the data in the print buffer and feeds one line based on the current set line spacing in standard mode. Remarks: ■ In page mode, the printer does not perform actual printing, but moving only the print position to the next line. Differences: None - 8 - BIXOLON Ver. 1.01...
  • Page 9 ■ This command works in page mode enabled by ESC L. ■ If the paper is positioned at the print starting position, this command is ignored, not performing actual paper feeding operation. Differences: None - 9 - BIXOLON Ver. 1.01...
  • Page 10 Print and carriage return Code: ASCII Decimal Range: None Default: None Description: This command prints the data. With auto line feed enabled, it performs printing and one line feeding same as LF. Differences: None - 10 - BIXOLON Ver. 1.01...
  • Page 11 None Default: None Description: This command clears the receive buffer and print buffers in page mode. ■ This command is effective only in page mode that is set by ESC L. Remarks: Differences: None - 11 - BIXOLON Ver. 1.01...
  • Page 12 Drawer kick-out connector pin 3 is LOW Drawer kick-out connector pin 3 is HIGH Online Offline Not used. Fixed to On Not used. Fixed to Off Not used. Fixed to Off Not used. Fixed to Off - 12 - BIXOLON Ver. 1.01...
  • Page 13 Not used. Fixed to On Not used. Fixed to Off No autocutter error Autocutter error occurred Not used. Fixed to On Not used. Fixed to Off Not used. Fixed to Off Not used. Fixed to Off - 13 - BIXOLON Ver. 1.01...
  • Page 14 ■ The status is transmitted to the host upon being requested that can check the printer operational condition with it and Remarks: takes appropriate measures accordingly. ■ The real time command is stored into the receive buffer and executed with higher priority than other commands. Differences: None - 14 - BIXOLON Ver. 1.01...
  • Page 15 ■ Upon receiving this command, the printer outputs the drive pulse to the specified connector pin. Remarks: ■ The real time command is stored into the receive buffer and executed with higher priority than other commands. Differences: None - 15 - BIXOLON Ver. 1.01...
  • Page 16 ■ In a double width mode, the right space will be doubled. Remarks: ■ Horizontal motion unit varies depending the printer model. Differences: Horizontal motion unit: ■ SRP-E300 : 0.141mm(1/180 inch) ■ SRP-E302 : 0.125mm(1/203 inch) - 16 - BIXOLON Ver. 1.01...
  • Page 17 ■ The entire character print width is underlined, but the space skipped by HT is not. ■ If both double width and double height are selected, the characters will be quadrupled. Differences: None - 17 - BIXOLON Ver. 1.01...
  • Page 18 ■ In page mode, the horizontal motion unit is applied when printing start poison is defined to the upper right or lower right of print area using ESC T, otherwise, the vertical motion unit is used. Differences: Horizontal motion unit: ■ SRP-E300 : 0.141mm(1/180 inch) ■ SRP-E302 : 0.125mm(1/203 inch) - 18 - BIXOLON Ver. 1.01...
  • Page 19 When n=0, the user-defined character set is deselected. • When n=1, the user-defined character set is selected. ■ The resident character set is enabled and used right after canceling the user defined character set. Remarks: Differences: None - 19 - BIXOLON Ver. 1.01...
  • Page 20 ■ Once user defined characters are defined, they remain available until they are redefined; ESC ? or ESC @ is executed; the printer is reset. ■ The following shows the relationship between the definition data and printing result with downloaded character consisting of 9x7 dots. Differences: None - 20 - BIXOLON Ver. 1.01...
  • Page 21 (DPI) 8-dot single-density nL + nH x 256 8-dot double-density nL + nH x 256 24-dot single-density (nL + nH x 256) x 3 24-dot double-density (nL + nH x 256) x 3 - 21 - BIXOLON Ver. 1.01...
  • Page 22 SRP-E300/302 ■ SRP-E302 : DPI : Dots per Inch (25.4mm) Number of dots in Vertical dot Horizontal dot Mode Number of bytes (k) vertical direction density (DPI) density (DPI) 8-dot single-density 203/3 203/2 nL + nH x 256 8-dot double-density...
  • Page 23 Turns on underline mode, set at 2-dot thick Remarks: ■ The spaces generated by horizontal tab are not underlined. ■ Using bit 7 of ESC !, the underline mode can be activated/deactivated as well. Differences: None - 23 - BIXOLON Ver. 1.01...
  • Page 24 ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: Default line spacing: ■ SRP-E300 : 4.23 mm (30 dots) ■ SRP-E302 : 3.75 mm (30 dots) - 24 - BIXOLON Ver. 1.01...
  • Page 25 Vertical or horizontal motion unit and maximum line spacing settable: Model Vertical unit Horizontal unit Max line spacing SRP-E300 0.0705mm (1/360 inch) 0.141mm (1/180 inch) 17.98mm SRP-E302 0.0625mm (1/406 inch) 0.125mm (1/203 inch) 15.937mm - 25 - BIXOLON Ver. 1.01...
  • Page 26 ■ The normal operation will be resumed by ESC @, power cycling or printer reset. ■ If LSB is activated when the printer is disabled by this command, the status is transmitted to the host at a preset interval. Differences: None - 26 - BIXOLON Ver. 1.01...
  • Page 27 This command removes user-defined character specified by character code n. ■ In place of the deleted user-defined character, the cooresponding resident character is printed. Remarks: ■ The user-defined characters for each font can be deleted independently. Differences: None - 27 - BIXOLON Ver. 1.01...
  • Page 28 ■ All of the settings such as print mode and line feed are cleared. ■ NV graphics and NV user memory are not cleared. ■ In page mode, this command removes the data in print areas, restores the initial settings and returns to standard mode. Differences: None - 28 - BIXOLON Ver. 1.01...
  • Page 29 ■ Up to 32 horizontal tabs can be set, the data exceeding this limit is processed as normal ones. ■ Even if the character width is changed after setting the horizontal tab positions, the horizontal tab positions remain unchanged. Differences: None - 29 - BIXOLON Ver. 1.01...
  • Page 30 When the LSB of n is 1, emphasized mode is turned on. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Remarks: Differences: None - 30 - BIXOLON Ver. 1.01...
  • Page 31 When the LSB of n is 1, emphasized mode is turned on. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Remarks: Differences: None - 31 - BIXOLON Ver. 1.01...
  • Page 32 ■ When used in page mode, this command moves only the print position, not executing actual printing. Differences: Vertical motion unit and maximum feed amount: Model Vertical unit Max feed amount SRP-E300 0.0705mm (1/360 inch) 17.98mm SRP-E302 0.0625mm (1/406 inch) 15.937mm - 32 - BIXOLON Ver. 1.01...
  • Page 33 ■ In page mode, the command, FF, prompts printing the data in the printer buffer collectively. LF, CR, ESC J, and ESC d just move the print position, not performing actual printing. Differences: None - 33 - BIXOLON Ver. 1.01...
  • Page 34 ■ The printer model has it own configuration of Font A and B. Remarks: ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None - 34 - BIXOLON Ver. 1.01...
  • Page 35 Denmark II Denmark I Spain II Sweden Latin America Italy Korea ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Remarks: Differences: None - 35 - BIXOLON Ver. 1.01...
  • Page 36 ■ The conditions by the following commands are defined independently in standard mode and page mode. • ESC SP, ESC 2, and ESC 3 ■ In standard mode, CAN and GS $ are ignored. Differences: None - 36 - BIXOLON Ver. 1.01...
  • Page 37 ESC 3, ESC J, GS $ the horizontal motion unit. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None - 37 - BIXOLON Ver. 1.01...
  • Page 38 ■ If set in page mode, the 90° clockwise rotation mode has effect after the printer returns to standard mode. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None - 38 - BIXOLON Ver. 1.01...
  • Page 39 (yL + yH x 256) = 0 (yL=0, yH=0) (dxL + dxH x 256) = 512 (dxL=0, dxH=2) (dyL + dyH x 256) = 1662 (dyL=126, dyH=6) ■ SRP-E302 : • When a paper width of 80mm{3.15"} is selected: (xL + xH x 256) = 0 (xL=0, xH=0)
  • Page 40 ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: The maximum printable area(Max horizontal printable area, Max vertical printable area): Model Max horizontal printable area Max vertical printable area SRP-E300 72.2mm(512dots) 234.3mm(1662dots) SRP-E302 72mm(576dots) 207.75mm(1662dots) - 40 - BIXOLON Ver. 1.01...
  • Page 41 ESC T, otherwise, the vertical motion unit is used. ■ Even if the underline mode is turned on, the space skipped by this command is not printed underlined. Differences: None - 41 - BIXOLON Ver. 1.01...
  • Page 42 ■ This command is not effective in page mode. If this command is processed in page mode, the setting by this Remarks: command becomes effective when the printer returns to standard mode. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None - 42 - BIXOLON Ver. 1.01...
  • Page 43 ■ In page mode, this command moves only the print position, not performing actual print. ■ If the feed amount set is beyond the maximum feed amount, the feed amount will be set to the maximum feed amount automatically. Differences: None - 43 - BIXOLON Ver. 1.01...
  • Page 44 ■ Autocutter operation should be enabled by setting the autocutter control nemory switch. ■ If the autocutter control memory switch of the printer not equipped with autocutter is set, the printer does not operate, displaying the error signal by LED. - 44 - BIXOLON Ver. 1.01...
  • Page 45 ■ Autocutter operation should be enabled by setting the autocutter control memory switch. ■ If the autocutter control memory switch of the printer not equipped with autocutter is set, the printer does not operate, displaying the error signal by LED. - 45 - BIXOLON Ver. 1.01...
  • Page 46 ■ The ON time is [t1 x 2ms], and the OFF time is as [t2 x 2ms]. • If t2 is smaller than t1, OFF time is set to [t1 x 2ms]. Differences: None - 46 - BIXOLON Ver. 1.01...
  • Page 47 Page 18 852 (Latin 2) Page 19 858 (Euro) Page 21 862 (Hebrew DOS code) Page 22 864 (Arabic) Page 23 Thai42 Page 24 1253 (Greek) Page 25 1254 (Turkish) Page 26 1257 (Baltic) Page 27 Farsi - 47 - BIXOLON Ver. 1.01...
  • Page 48 Page 49 TCVN-3(Vietnamese1) Page 50 TCVN-3(Vietnamese2) Page 51 VISCII(Vietnamese3) User Code Page (Space) ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Remarks: Differences: None - 48 - BIXOLON Ver. 1.01...
  • Page 49 ■ The status of paper end sensors is sent to the host as follows: • When paper end is detected, 0xC is transmitted. ■ The paper sensor status can be transmitted using GS r. Remarks: Differences: None - 49 - BIXOLON Ver. 1.01...
  • Page 50 ■ 180 rotated characters are printed from right to left in upside-down print mode. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Example Normal Upside- down Mode Differences: None - 50 - BIXOLON Ver. 1.01...
  • Page 51 ■ The printer does not print the NV bit image that is beyond one line of print area. ■ When using unidirectional print mode, there will be no vertical misali gnment between the top and bottom parts of the printed pattern. - 51 - BIXOLON Ver. 1.01...
  • Page 52 DPI : Dots per Inch (25.4mm) Mode Vertical Dot Density (DPI) Horizontal Dot Density (DPI) Normal Double-width Double-height Quadruple ■ SRP-E302 : DPI : Dots per Inch (25.4mm) Mode Vertical Dot De sity (DPI) orizontal Dot Density (DPI) Normal Double-width 203/2...
  • Page 53 (xL, xH) and (yL, yH) set the number of dots in the horizontal and vertical directions to [(xL + xH × 256) x 8] and [(yL + yH × 256) x 8] respectively for the NV bit image. - 53 - BIXOLON Ver. 1.01...
  • Page 54 ■ During the execution of this command, paper feed button, LSB and real time functions will not operate. • Bit image data and print result are as follows: … dY+1 … dY+2 dk-2 … dk-1 … dY x 2 ■ The capacity of NV memory area is 256KB. Differences: None - 54 - BIXOLON Ver. 1.01...
  • Page 55 [Enlarged in horizontal direction] • Table 1 [Enlarged in horizontal direction] Decimal Enlargement 1 time (standard) 2 times 3 times 4 times 5 times 6 times 7 times 8 times - 55 - BIXOLON Ver. 1.01...
  • Page 56 ■ Double width and double height modes can be set by ESC !. ■ Multi-byte code characters are specified only by this command. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 56 - BIXOLON Ver. 1.01...
  • Page 57 With the starting position of the upper left or lower right on the print area, the vertical motion unit is used. • In other cases, the horizontal motion unit is used. ■ The configuration beyond the print area set by ESC W is ignored. Differences: None - 57 - BIXOLON Ver. 1.01...
  • Page 58 ■ All of the data transmitted from the host to the printer is printed and identified in hexadecimal dump mode. ■ The real time command and LSB operations are not executed during the printing of printer configuration (m=2, 50). Differences: None - 58 - BIXOLON Ver. 1.01...
  • Page 59 GS ( L pL pH m fn kc1 kc2 x y Prints the specified NV graphics data GS ( L pL pH m fn a bx by c xL xH yL Stores the graphics data in the print buffer memory yH d1…dk - 59 - BIXOLON Ver. 1.01...
  • Page 60 ■ While storing data by this command, the printer is in BUSY state where receiving of data is not available. Therefore, it is not recommended to send data during this process. ■ The real time commands and LSB operations are not allowed during NV memory operation process. Differences: None - 60 - BIXOLON Ver. 1.01...
  • Page 61 ■ The data length is variable. ■ The total capacitu of the NV user memory is selectable as any one of[0, 64K, 128K, 192K, 256K] bytes with GS ( E. The default value is 256K. Differences: None - 61 - BIXOLON Ver. 1.01...
  • Page 62 ■ The graphics data is defined by Function 112. ■ The required amount of line feed pitch is used for printing graphics data, regardless of the existing setting value of the pitch. Differences: None - 62 - BIXOLON Ver. 1.01...
  • Page 63 ■ The setting value is sent from bit 8 to bit 1, consisting of 8 bytes in total. • Off: Hexadecimal = 30H / Decimal = 48 • On: Hexadecimal = 31H / Decimal = 49 Remarks: None Differences: None - 63 - BIXOLON Ver. 1.01...
  • Page 64 48 - 57 2 - 80 bytes 1 byte ■ When the key code is not present : Hexadecimal Decimal Amount of Data Header 1 byte Flag 1 byte Status 1 byte 1 byte - 64 - BIXOLON Ver. 1.01...
  • Page 65 - When the status (for the last data block) is Hexadecimal = 40H / Decimal = 64) Response Process performed ASCII Decimal Ends the process Transmits the previous data again Cancels the process. Differences: None - 65 - BIXOLON Ver. 1.01...
  • Page 66 This command removes all defined NV graphics data. ■ The graphics data is define by Function 67 into the NV graphics memory with the sector dedicated for storing NV Remarks: graphics data. Differences: None - 66 - BIXOLON Ver. 1.01...
  • Page 67 32 ≤ kc1 ≤ 126 32 ≤ kc2 ≤ 126 Default: None Description: Deletes the NV graphics data defined by the codes kc1 and kc2. ■ The graphics data is define by Function 67. Remarks: Differences: None - 67 - BIXOLON Ver. 1.01...
  • Page 68 (xL + xH x 256) dots. • yL and yH specify the number of dots in horizontal direction to (yL + yH x 256) dots. - 68 - BIXOLON Ver. 1.01...
  • Page 69 The rest of NV graphics data groups having no change should be redefined along with the new group stored. ■ When NV graphics data groups are saved, each of the groups is allocated with N in the order of download. Differences: None - 69 - BIXOLON Ver. 1.01...
  • Page 70 ■ This command prints the NV graphics data defined by Function 67. Remarks: ■ In page mode, this command is not effective. ■ NV graphics data beyond the print area for one line is not printed. Differences: None - 70 - BIXOLON Ver. 1.01...
  • Page 71 1 ≤ (xL + xH x 256) ≤ 415 (When by =2) 0 ≤ d ≤ 255 k = ( int ( ( xL + xH x 256 ) + 7 ) / 8 ) x ( yL + yH x 256 ) Default: None - 71 - BIXOLON Ver. 1.01...
  • Page 72 ■ The graphics data is stored in the printer buffer directly. Remarks: ■ NV graphics data beyond the print area for one line is not printed. ■ Real time command is not effective during processing of this command. Differences: None - 72 - BIXOLON Ver. 1.01...
  • Page 73 ■ This command processes the data concerning two-dimensional code. Description: • Symbol type is specified by cn. • Function code is specified by fn. Type of Symbol PDF417 (2-dimensional cod ) QR CODE (2-dimensional code) DATAMATRIX (2-dimensional code) - 73 - BIXOLON Ver. 1.01...
  • Page 74 ■ The setting values of Functions 065 to 070 are utilized for the processing of Function 080. The printable area must be large enough to accommodate different-size symbols. If not, the symbol may not be printed. ■ The same symbol data is repeatedly printed by executing Function 081 after performing Function 080. - 74 - BIXOLON Ver. 1.01...
  • Page 75 The same symbol data is repeatedly printed by executing Function 581 after performing Function 580. ■ The same symbol data is printed differently by executing Function 581 after setting the mode by using Functions 567. ■ Differences: None - 75 - BIXOLON Ver. 1.01...
  • Page 76 Printing area when processing Functions 081 • Module width (Function 067) • Option setting (Function 070) ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 76 - BIXOLON Ver. 1.01...
  • Page 77 ■ With auto processing (n=0) specified, the number of rows is calculated by using the following information: • Printing area when processing Functions 081 • Module height (Function 068) ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 77 - BIXOLON Ver. 1.01...
  • Page 78 ■ The setting unit for printer models varies. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: Setting unit(1 dot): ■ SRP-E300 : 0.141(1/180 inch) ■ SRP-E302 : 0.125(1/203 inch) - 78 - BIXOLON Ver. 1.01...
  • Page 79 This command sets the module height of PDF417 to [the module width x n]. ■ Settings of this command affect the processing of Functions 081. Remarks: ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 79 - BIXOLON Ver. 1.01...
  • Page 80 Error correction level 5 Error correction level 6 Error correction level 7 Error correction level 8 ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 80 - BIXOLON Ver. 1.01...
  • Page 81 Remarks: ■ When simplified PDF417 symbol is canceled, standard PDF417 symbol is automatically selected. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 81 - BIXOLON Ver. 1.01...
  • Page 82 The error correction codeword calculated by modulus 929. ■ The setting of this command remains effective until the following processing is performed: • Executing Function 080 • Executing ESC @ • Executing printer reset or power-off Differences: None - 82 - BIXOLON Ver. 1.01...
  • Page 83 Indicator code word of left and right. • The descriptor of symbol length (the first code word in the data area). • The error correction code word calculated by modulus 929. • Pad codeword. - 83 - BIXOLON Ver. 1.01...
  • Page 84 ■ The quiet zone is not included in the printing data. Be sure to include the adequate quiet zone for executing of this command. • The quiet zone means the spaces surrounding the symbol such as upper, lower, left, and right spaces. Differences: None - 84 - BIXOLON Ver. 1.01...
  • Page 85 Model 1 Model 2 ■ The setting of this command affects <Function 181>. Remarks: ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 85 - BIXOLON Ver. 1.01...
  • Page 86 ■ Since the QR CODE module is square, n = module width = module height. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 86 - BIXOLON Ver. 1.01...
  • Page 87 Remarks: ■ Reed-Solomon correction is employed to generate a series of error correction codewords. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 87 - BIXOLON Ver. 1.01...
  • Page 88 00H ~ FFH ■ The setting of this command remains effective until the following processing is performed: • Performing Function 180 • Performing ESC @ • Performing the printer reset or power-off Differences: None - 88 - BIXOLON Ver. 1.01...
  • Page 89 The four types of data compression modes are listed below. According to the symbol data in the data storage area, automatically selects the best suitable compression mode. *Numeric Data Code *Alphanumeric Data mode *Kanji Data mode *8 bit Data mode - 89 - BIXOLON Ver. 1.01...
  • Page 90 ■ In page mode, the printer stores the symbol data in the print buffer without executing actual printing. ■ The quiet zone is not included in the printing data. Be sure to include the adequate quiet zone for executing of this command. Differences: None - 90 - BIXOLON Ver. 1.01...
  • Page 91 SRP-E300/302 - 91 - BIXOLON Ver. 1.01...
  • Page 92 The setting of this command remains effective until ESC @, printer reset or power cycling is executed. ■ Since the DATAMATRIX Code module is square, n = module width = module height. Differences: None - 92 - BIXOLON Ver. 1.01...
  • Page 93 ■ The setting of this command remains effective until the following processing is performed: • Performing Function 580 • Performing ESC @ • Performing the printer reset or power-off Differences: None - 93 - BIXOLON Ver. 1.01...
  • Page 94 For error correction codeword, the Reed-Solomon algorithm is employed. ■ The following data is automatically added during the encoding process: • Position pattern • Error correction code text • Mode separator • Pad code text - 94 - BIXOLON Ver. 1.01...
  • Page 95 In page mode, the printer stores the symbol data in the print buffer without executing actual printing. ■ The quiet zone is not included in the printing data. Be sure to include the adequate quiet zone for executing of this command. Differences: None - 95 - BIXOLON Ver. 1.01...
  • Page 96 ■ The user-defined character and the downloaded bit image cannot be defined simultaneously. • The user-defined character is cleared preceding the execution of this command. • The downloaded bit image data is cleared with ESC & executed. Differences: None - 96 - BIXOLON Ver. 1.01...
  • Page 97 ■ Except for character size and upside-down printing mode, none of print mode such as emphasized, double-strike, etc, affects the printing of the downloaded bit image. ■ The default dot density set by GS L is applied to printing of the downloaded bit image. - 97 - BIXOLON Ver. 1.01...
  • Page 98 Vertical dot density(DPI) Horizontal dot density(DPI) 0, 48 Normal 1, 49 Double-width 2, 50 Double-height 3, 51 Quadruple ■ SRP-E302 : DPI : Dots per Inch (25.4mm) Mode Vertical dot density(DPI) Horizontal dot density(DPI) 0, 48 Normal 1, 49 Double-width 203/2...
  • Page 99 ■ The maximum number of macro data to be defined varies with respect to printer models. The data exceeding this limit is not stored. ■ ESC @ does not clear the existing defined macro. The macro remains effective until the printer reset and power cycling are executed. Differences: None - 99 - BIXOLON Ver. 1.01...
  • Page 100 ■ The right space defined by ESC SP is affected by this command. ■ In white/black reverse mode, the underline mode is not effective. ■ This mode remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 100 - BIXOLON Ver. 1.01...
  • Page 101 Both above and below the bar code ■ The font of the HRI characters is defined by GS f. Remarks: ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None - 101 - BIXOLON Ver. 1.01...
  • Page 102 Transmits specified printer information, using n as follows: Printer ID type Specification Firmware version Firmware version Manufacturer BIXOLON Printer model Printer model Code page Currently enabled code page ■ Printer information (When n = 65, 66, 67, 69) consist of [Header ~ NULL] data as shown below:...
  • Page 103 3(Printer feature ID) 0x63(when 3inch),0x62(when 2inch) 65(Firmware Version) Depend on firmware version information 66(Manufacturer) BIXOLON 67(Printer model) SRP-E300 or SRP-E302 69(Language of Font) Code page currently being used. Refer to cod page setting command, ESC t. - 103 - BIXOLON Ver. 1.01...
  • Page 104 ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Printable area Left margin Printing area width Differences: None - 104 - BIXOLON Ver. 1.01...
  • Page 105 ■ If an auto cutter is not provided, the printer only feeds the paper for specified amount. ■ Vertical motion unit is used for calculating a paper feed amount. ■ Cutting mode is changed only by setting MSW5-1. Differences: None - 105 - BIXOLON Ver. 1.01...
  • Page 106 Default: (nL + nH x 256)=512 (nL=0, nH=2) (When 80mm width of paper used) ■ SRP-E302 : (nL + nH x 256)=576 (nL=64, nH=2) (When 80mm width of paper used) Description: This command sets the printing area width to [(nL + nH x 256) x (horizontal motion units)].
  • Page 107 ■ The macro is defined by GS: Remarks: ■ If the macro is not defined or r = 0, the command is ignored. ■ The macro function is useful to print the same data repeatedly. Differences: None - 107 - BIXOLON Ver. 1.01...
  • Page 108 ■ While basic ASB is active, the selected enabled basic ASB status is transmitted whenever the status changes ■ When n = 0, ASB is disabled. The printer stops transmitting the status. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. - 108 - BIXOLON Ver. 1.01...
  • Page 109 Not used. Fixed to Off No auto cutter error Auto cutter error occurred Not used. Fixed to Off Not used. Fixed to Off No automatically recoverable error Automatically recoverable error occurred Not used. Fixed to Off - 109 - BIXOLON Ver. 1.01...
  • Page 110 Not used. Fixed to On Not used. Fixed to On Not used. Fixed to On Not used. Fixed to Off Not used. Fixed to Off Not used. Fixed to Off Not used. Fixed to Off Differences: None - 110 - BIXOLON Ver. 1.01...
  • Page 111 ■ The setting of this command is applied to only HRI characters. Remarks: ■ The printing position of HRI characters are specified by GS H. ■ The configurations of Font A and B vary depending on the printer model. Differences: None - 111 - BIXOLON Ver. 1.01...
  • Page 112 Remarks: ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: Unit of one dot: ■ SRP-E300 : 0.141mm(1/180 inch) ■ SRP-E302 : 0.125mm(1/203 inch) - 112 - BIXOLON Ver. 1.01...
  • Page 113 48 ≤ d ≤ 57, 65 ≤ d ≤ 90, 1 ≤ k CODE39 d=32,36,37,43,45,46,47 1 ≤ k (even number) 48 ≤ d ≤ 57 48 ≤ d ≤ 57, 65 ≤ d ≤ 68, 1 ≤ k CODABAR d=36,43,45,46,47,58 - 113 - BIXOLON Ver. 1.01...
  • Page 114 ■ Except for character size and upside-down printing mode, none of print mode such as emphasized, double-strike, etc, affects the printing of the barcode. ■ The quiet zone of the bar code (left and right spaces of the bar code) should be considered when using this command. Differences: None - 114 - BIXOLON Ver. 1.01...
  • Page 115 Bits 2 and 3: This command can not be executed when the printer is offline due to the lack of paper. Therefore, the status of bit 2 (1) and bit 3 (1) is not transmitted. - 115 - BIXOLON Ver. 1.01...
  • Page 116 SRP-E300/302 • Drawer kick-out connector status (n=2, 50): Off/On Decimal Function Drawer kick-out connector pin 3 is LOW Drawer kick-out connector pin 3 is HIGH Reserved Reserved Reserved Fixed Reserved Reserved Fixed Differences: None - 116 - BIXOLON Ver. 1.01...
  • Page 117 ■ None of the print modes such as emphasized, double-strike, etc, affects the printing of the bit image. ■ The default dot density set by GS L is applied to printing of the bit image. - 117 - BIXOLON Ver. 1.01...
  • Page 118 Horizontal dot density (DPI) 0, 48 Normal 1, 49 Double-width 2, 50 Double-height 3, 51 Quadruple ■ SRP-E302 : DPI : Dots per Inch (25.4mm) Mode Vertical dot density (DPI) Horizontal dot density (DPI) 0, 48 Normal 1, 49 Double-width...
  • Page 119 Multi-level bar codes (UPC-A, UPC-E, JAN13, HAN8, CODE93, CODE128) • Binary-level bar codes (CODE39, ITF, CODABAR) ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. - 119 - BIXOLON Ver. 1.01...
  • Page 120 0.706 0.423 0.423 1.129 0.564 0.564 1.411 0.706 0.706 1.834 0.847 0.847 2.258 ■ SRP-E302 : Multi-level bar code module Binary-level bar code width (mm) Thin element width (mm) Thick element width (mm) 0.250 0.250 0.625 0.375 0.375 1.000 0.500 0.500...
  • Page 121 ■ The printer supports 3 font types by selecting m function. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Remarks: Differences: None - 121 - BIXOLON Ver. 1.01...
  • Page 122 Feeds paper to (cutting position + n × vertical motion unit) and executes a partial cut (one point left uncut) ② Feeds paper to (cutting position + n × vertical motion unit) and executes a full cut (cuts the paper completely) Differences: None - 122 - BIXOLON Ver. 1.01...
