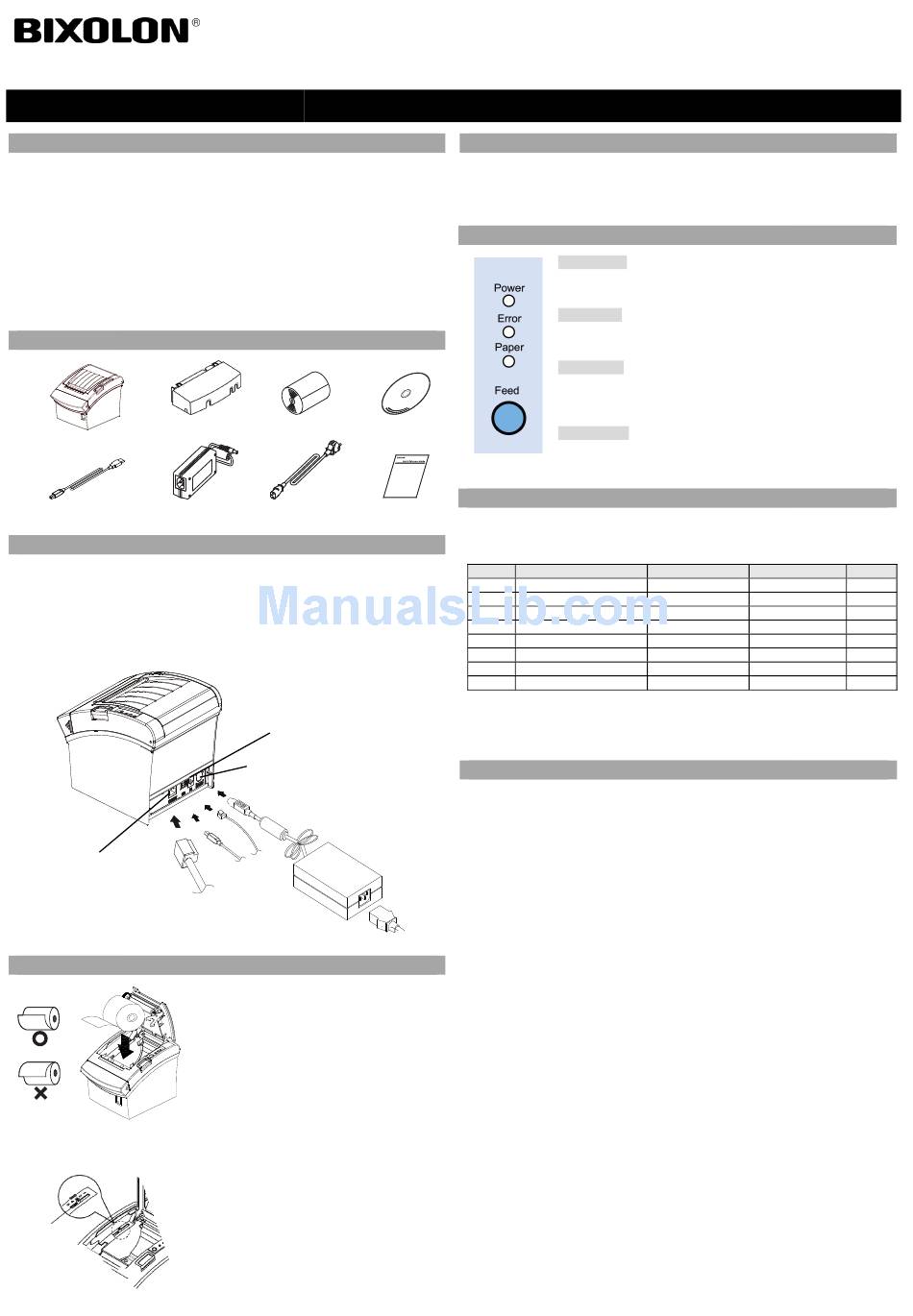

BIXOLON SRP-350IIOBE Installation Manual

KN04-00081A (Rev.1.2)

◈ Information

This Installation Guide includes a brief outline of information necessary for product
installation. For more detailed installation information, please refer to the user manual in the
enclosed CD. The contents of the CD include the following.
1. Manual: User Manual, Code Chart, and Control Commands
2. Drivers: Windows Driver, OPOS Driver
3. Utility: Logo Download Tool
We at Bixolon Co., Ltd. constantly strive to improve product functions and quality. To do
this, the specifications of our product and the contents of the manual may change without
prior notice.

◈ Components

SRP-350IIOBE/OBEi
USB A-B Cable

◈ Cable Connection

1. Turn the printer and the host ECR (host computer) off.
2. Plug the power cord into the adaptor and then plug the adaptor into the power connector of
the printer.
3. Check the interface type on the back of the printer (USB or Ethernet), and connect the
interface connector cable.
4. Plug the drawer kick-out cable into the drawer kick-out connector on the printer.
※ Do not use an adapter that was not supplied with the printer.
Ethernet
connector
Ethernet cable

◈ Installing Paper Roll

※ Note: Adjusting the Paper Near-End Sensor
Near end sensor tab
Cable Cover Paper Roll
AC/DC Adaptor Power Cord
Drawer kick-out connector
Power connector
Drawer
kick-out
USB
cable
cable
1. Open the Open button to open the cover.
2. Insert a new paper roll in the right direction.
3. Pull out a small amount of paper and then close
the cover.
※ Note
To make the paper tightly close to the roller when
closing the cover, press the center of the cover.
Printing quality may not be optimum if
recommended paper is not used.
(Refer to the User's Manual.)
SRP-350IIOBE/OBEi Printers each has a paper
near-end sensor that informs the host computer
that the paper is running out. When the paper is
running out, the paper lamp on the control panel is
turned on (RED).
Even though some paper still remains, when the
paper lamp is turned on, push the control lever
slightly upwards (No. 1).
Printer Installation Guide
THERMAL PRINTER

◈ Paper Jam

1. Turn the power of the printer off or on and open the cover to remove the paper.
2. If the cover is not opened, turn off the power of the printer and separate the cover-cutter
and then turn the knob of the auto cutter to open the cover.

◈ Using Control Panel

Procuct Installation CD Procuct Installation CD Procuct Installation CD
CD

◈ Setting DIP Switches

Installation Guide
To change the Dip Switches settings, turn the printer power off. Any changes while the
printer is on will not be processed.
1. DIP Switch Settings
SW
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
※ DIP Switch 1-8 Default Setting
- Normal(SRP-350IIOBE) :OFF
- MFi(SRP-350IIOBEi) : ON

◈ Self-Test

1. Check that the paper is properly loaded.
2. While pressing the Feed button, turn the power off. Self-test begins.
3. Print the current state of the printer such as ROM version and DIP switch setting.
Adaptor
4. Print the current state of the printer and stop printing after the following phrase.
(The paper signal lamp continues to flicker):
Power
cord
5. Press the Feed button to continue printing. Print the printable character forms.
6. End the self-test mode automatically and print the phrase below to cut the paper.
7. When the self-test mode of the printer ends, the printer turns to the normal state.
※ Note
It is possible to check whether the printer works properly through the self-test, with which
printing quality, ROM version and DIP settings can be confirmed.
SRP-350IIOBE/OBEi
• Power (LED)
When the power is supplied to the printer, the green signal lamp turns
on.
• Error (LED)
When errors such as no paper, cover opened, etc. occur, the red signal
lamp turns on.
• Paper (LED)
When the paper is almost or has completely run out, the red signal
lamp turns on. When this signal lamp flickers, it represents that it is at
the SELF-TEST standby state or the macro execution standby state.
• Feed (Button)
To remove paper, press the Feed button. Keep pressing the Feed
button to continuously remove paper.
Function ON
None -
None -
None -
None -
Auto Cutter Disable
Internal Bell Disable
Out of Paper Disable
MFi Function iOS
SELF-TEST PRINTING.
PLEASE PRESS THE FEED BUTTON.
*** COMPLETED ***
(Refer to 1-6 in User Manual)
OFF Default
- OFF
- OFF
- OFF
- OFF
Enable OFF
Enable OFF
Enable OFF
Normal Mode OFF
