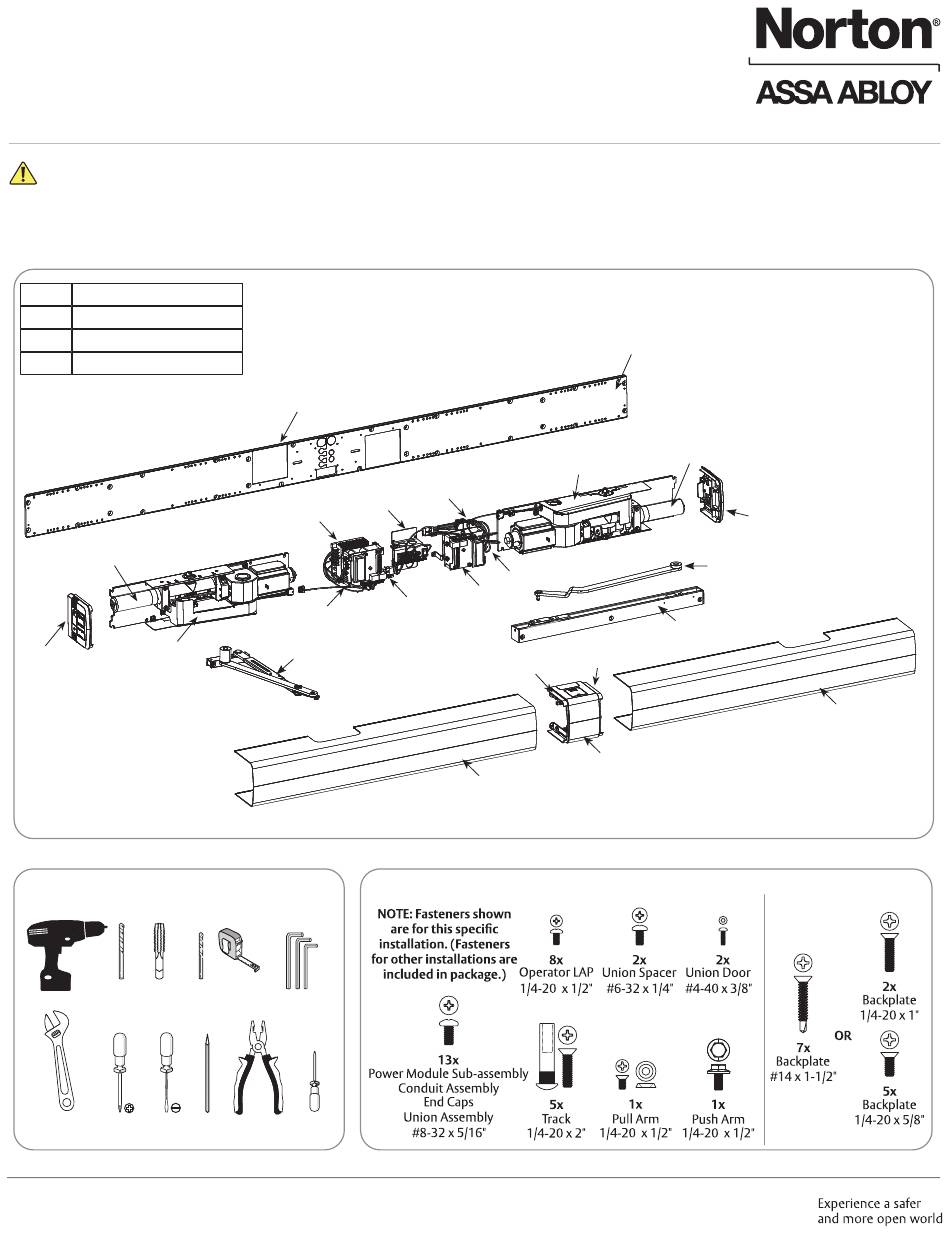

D6001DE-L Double Unit Series (Double Egress)
Power Operator
Installation Instructions
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65warnings.ca.gov.
Unit
Reveal
DEL
up to 3" (76)
DEL1
3" to 4-3/4" (76 to 121)
DEL2
4-3/4" to 7-3/8" (121 to 187)
Closer Assembly
(7500LAP)
Operator LAP
End Cap - LH
(6021LAP)
(6001ENLH)
Tools Needed
#7
1/4-20
10" or 12"
#2 and #3
Copyright © 2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9360-1037-020 Rev 3 11/20
Backplate - LH
(D6001BP-36-LH
D6001BP-38-LH
D6001BP-40-LH
D6001BP-42-LH
D6001BP-44-LH
D6001BP-46-LH
D6001BP-48-LH)
Conduit Assembly
(D6001CON)
Power Module
Sub-assembly
(6001PM)
Power Supply
(6000SUP)
DEL and DEL1 (6061-1)
DEL2 (6071-1)
3/8
Set (Inch)
Punch
Pour la version francaise voir www.nortondoorcontrols.com.
READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
