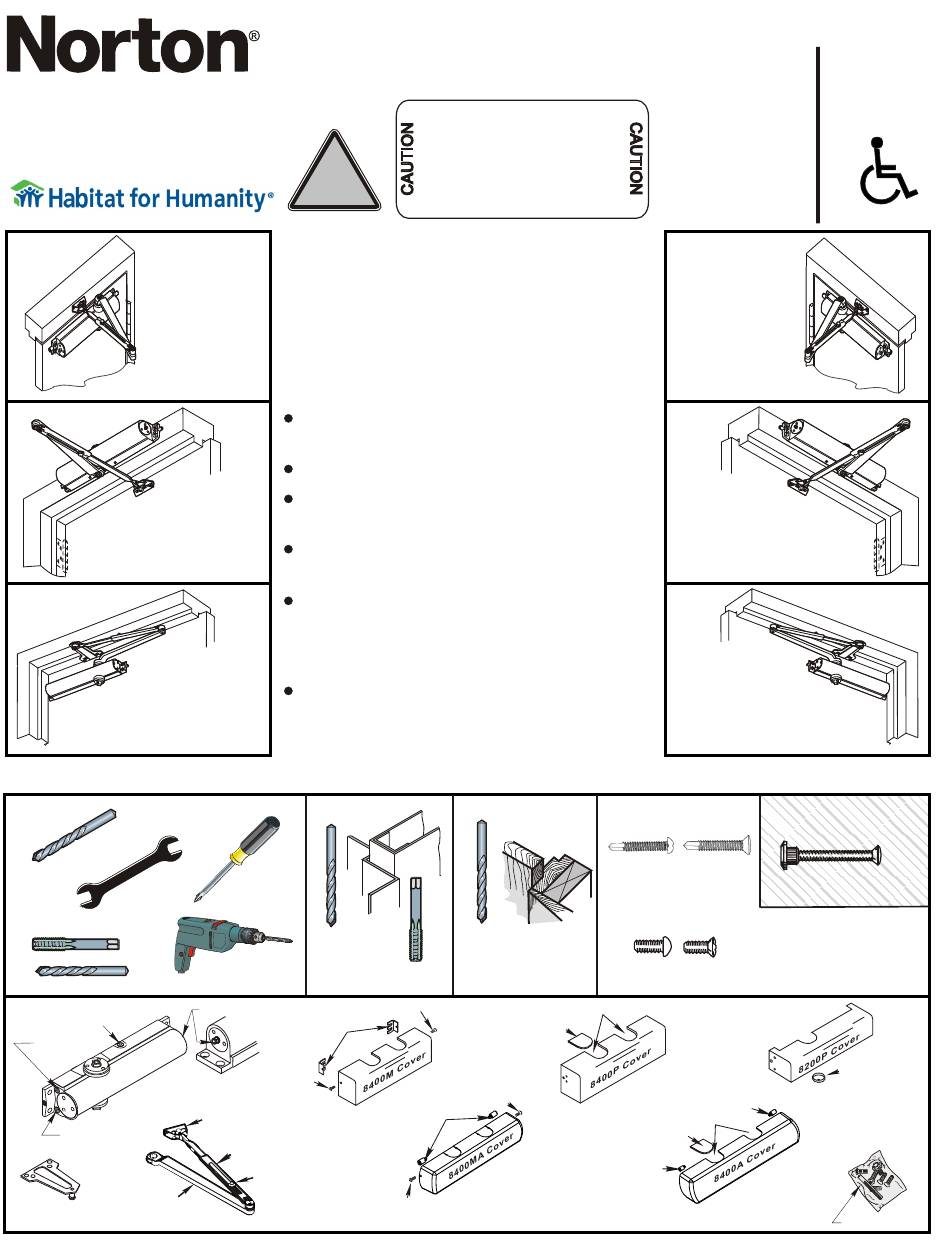

Norton 8000 Series Installation Instructions Manual

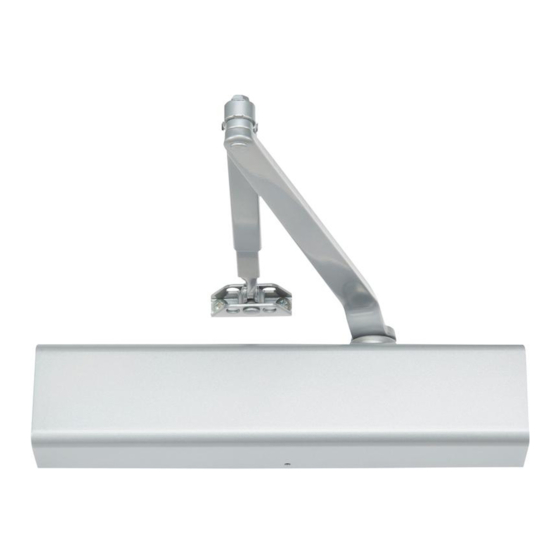

8000 Series Tri-Style
Non Handed Door Closer
Regular Arm
Installation
See Page 2
Left Hand Door - LH
Right Hand Reverse - RHR
Top Jamb
Installation
See Page 5
Left Hand Door - LH
Right Hand Reverse - RHR
Parallel Arm
Installation
See Pages
Left Hand Door - LH
Right Hand Reverse - RHR
Backcheck Valve
Latch Valve
Closer Body
Sweep Valve
Main Arm
1618A Parallel
Closer Arm
Arm Bracket
Installation Instructions
80-9380-2206-020 (04-09)
!
"DA" suffix (Delayed Action) is an optional
feature.
NOTE: For special applications a separate
door and frame preparation template is
packed with these instructions. Use this
instruction sheet for installation sequence
and closer adjustments only.
Doors should be hung on ball bearing or
anti-friction hinges.
A separate door stop is recommended.
Door and frame must be properly
reinforced.
Always adjust spring power before
adjusting control.
Adjust closing time speed between 3 and 7
seconds from 90° to 0°. Greater closing
times may be required for elderly or
handicapped.
These door closers should NOT be
3 & 4
installed on the exposed side (weather
side) of exterior doors.
Metal
#7
Cover Screw
Power Adjustment Shaft
Cover Clips
Cover Screws
Regular Arm/Top
Optional 8500M
Jamb Shoe
Series Metal Cover
Connecting Rod
Forearm
Screw
Cover Screws
A n I n c o r r e c t l y i n s t a l l e d o r
improperly adjusted door closer can
cause property damage or personal
injury. These installation instructions
should be followed to avoid the
possibility of misapplication or
misadjustment.
Wood
3/16"
* Pilot Hole
1/4-20
Required
Cover
Insert
Cover Screw
Standard 8500 Series
Standoffs
Full Cover
NOTE: Architectural Cover
CAN NOT be used for doors
swinging over 120° using
Optional 8500MA Series
parallel mount
Architectural Metal Cover
Non Hold Open Models
Sized
(Sizes 2,3,4,5,6)
8100
8300
8500
Regular Arm
Installation
See Page 2
Right Hand Door - RH
Left Hand Reverse - LHR
Top Jamb
Installation
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR
Parallel Arm
Installation
See Pages
3 & 4
Self Drilling Screws
Wood and Metal
For Wood drill 3/16 hole
for Wood drill 7/32
Machine Screws
#7 Drill, 1/4-20 Tap
Insert Cutouts
Standoff
Insert Cutouts
Cover
Insert
Standoff
Optional 8500A Series
Architectural Plastic Cover
Adjustable
(Sizes 1 thru 6)
8301
8501
Right Hand Door - RH
Left Hand Reverse - LHR
(Optional)
Thru Bolt and Grommet Nut
Drill 9/32 thru from Closer Side
3/8 Drill other Side
Pinion Cap (1639)
Standard 8300 Series Narrow Cover
Screw Pack
