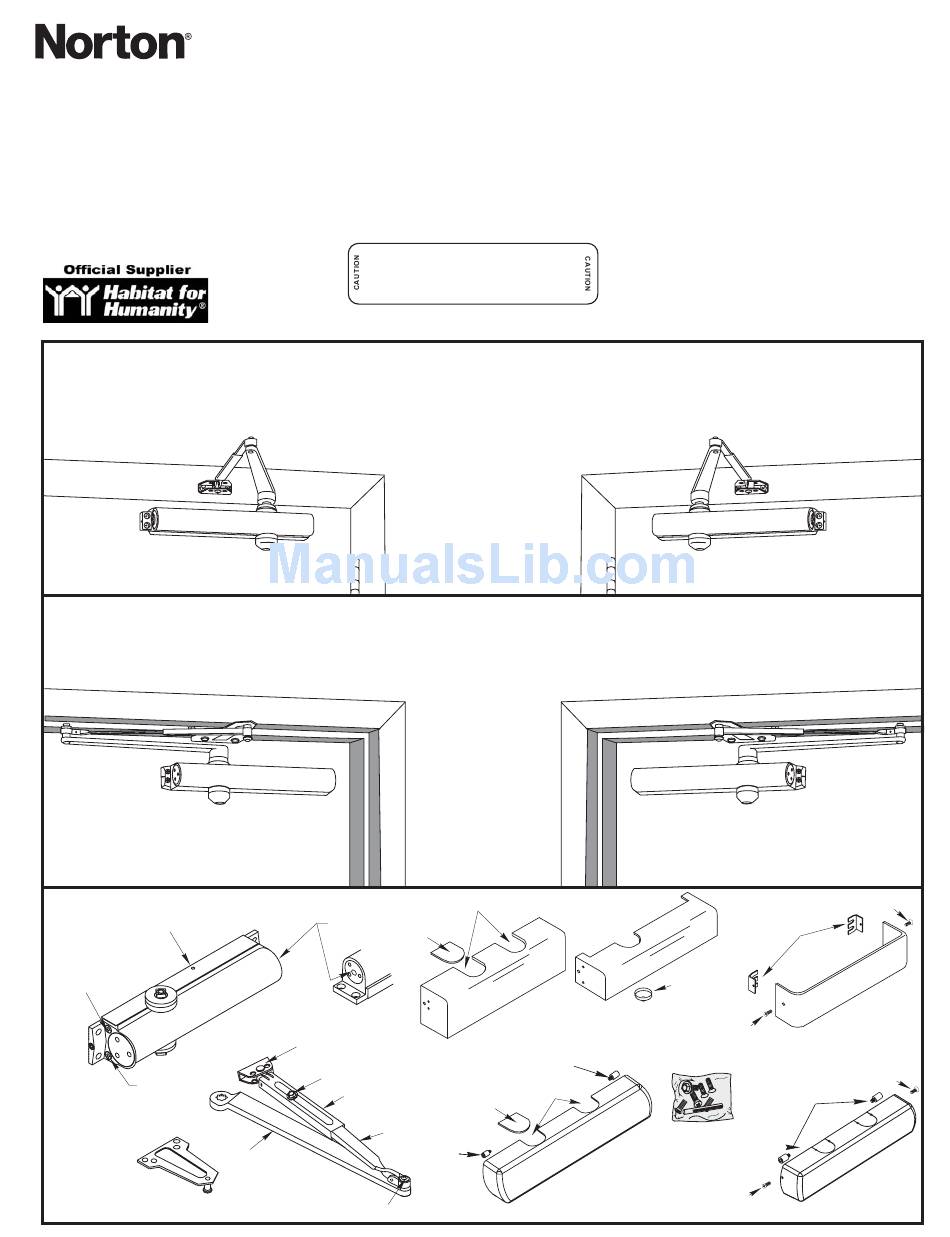

8180 Series
For Special Applications a separate door and frame preparation template is packed with these instructions.
Note:
Use this instruction sheet for installation sequence and closer adjustments only.
Left Hand Door - LH
Right Hand Reverse - RHR
Right Hand Door - RH
Left Hand Reverse - LHR
Closer Components:
Backcheck Valve
Latch Valve
Closer Body
Sweep Valve
1618A Parallel
Main Arm
Arm Bracket
Installation Instructions
80-9380-0207-020 (10-02)
AN INCORRECTLY INSTALLED OR IMPROPERLY ADJUSTED
DOOR CLOSER CAN CAUSE PROPERTY DAMAGE OR
PERSONAL INJURY. THESE INSTALLATION INSTRUCTIONS
SHOULD BE FOLLOWED TO AVOID THE POSSIBILITY OF
MISAPPLICATION OR MISADJUSTMENT.
Regular Arm Installation
Closer mounts on hinge (pull) side of door
See Page 2
Parallel Arm Installation
Closer mounts on opposite to hinge (push) side of door
See Page 3
Insert Cutouts
Spring Adjustment Shaft
Cover
Insert
Regular Arm/Top
Standard 8580 Full Cover
Jamb Shoe
Forearm Screw
Forearm
Connecting Rod
Standoff
Closer Arm
Elbow
Optional 8580 Architectural Plastic Full Cover
Screw
Standard 8380 Narrow Cover
Standoff
Insert Cutouts
Cover
Insert
Non Hold Open Door Closers
Models 8180
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Cover Screw
Cover Clips
Pinion Cap
Cover Screws
Optional 8580 Metal Cover
Cover Screw
Standoffs
Screw Pack
Cover Screws
Optional 8580 Architectural Metal Cover
8380
8580
