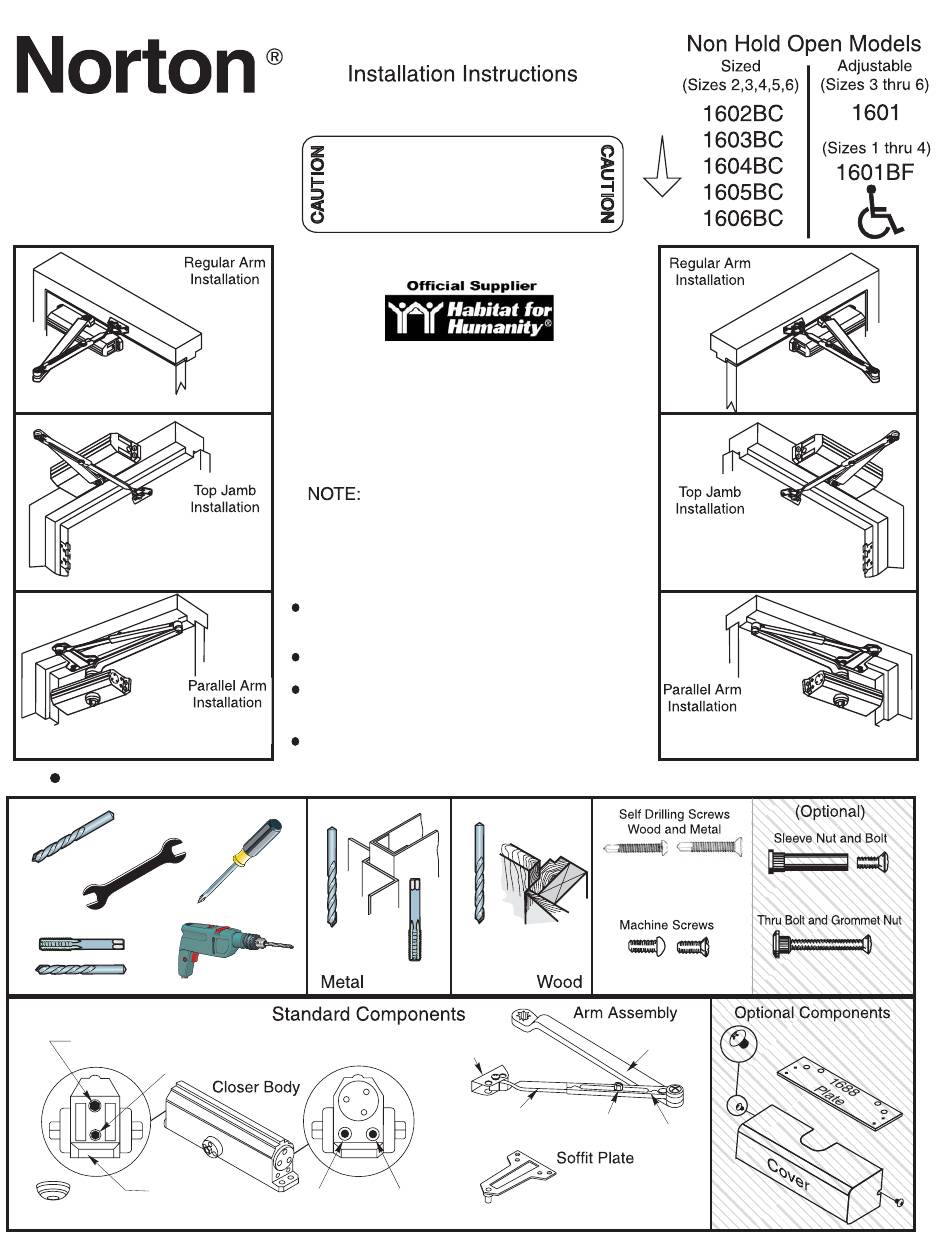

Norton Tri-Style 1600 Series Installation Instructions Manual

Tri-Style
1600 Series

Non Handed Door Closer

Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
These door closers should NOT be installed on the exposed side (weather side) of exterior doors.
Spring Power Adjustment Screw
1601(BF) Series Only
"BC" Valve
4
Closer
Size
Stamp
Pinion Cap
An Incorrectly installed or improperly adjusted
door closer can cause property damage or
personal injury. These installation instructions
should be followed to avoid the possibility of
misapplication or misadjustment.
See Page 2
"DA" suffix (Delayed Action) is an optional
feature. A separate sheet is supplied
showing closer adjustments.
door and frame preparation template is
See Page 5
packed with these instructions. Use this
instruction sheet for installation sequence
and closer adjustments only.
Doors should be hung on ball bearing or
anti-friction hinges.
A separate door stop is recommended.
Door and frame must be properly
reinforced.
See Pages
3 & 4
Adjust closing time speed between 3 and 7
seconds from 90° to 0°.
#7
"L"Valve
80-9316-2502-020 (12-02)
For special applications a separate
7/32"
1/4-20
Regular Arm/Top
Jamb Shoe
Connecting Rod
1618A Soffit Plate
"S"Valve
Used with Parallel
Arm Closers Only
Weaker
-
Stronger
+
See Page 2
Right Hand Door - RH
Left Hand Reverse - LHR
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR
See Pages
3 & 4
For Wood drill 3/16 hole
Drill 9/32 thru from Closer Side
Drill 9/32 thru from Closer Side
#7 Drill, 1/4-20 Tap
Main Arm
Forearm
Arm Slide
Screw
Right Hand Door - RH
Left Hand Reverse - LHR
3/8 Drill other side
3/8 Drill other Side
